N3478XVA 03 – DOOR/DRAWER – Aparts

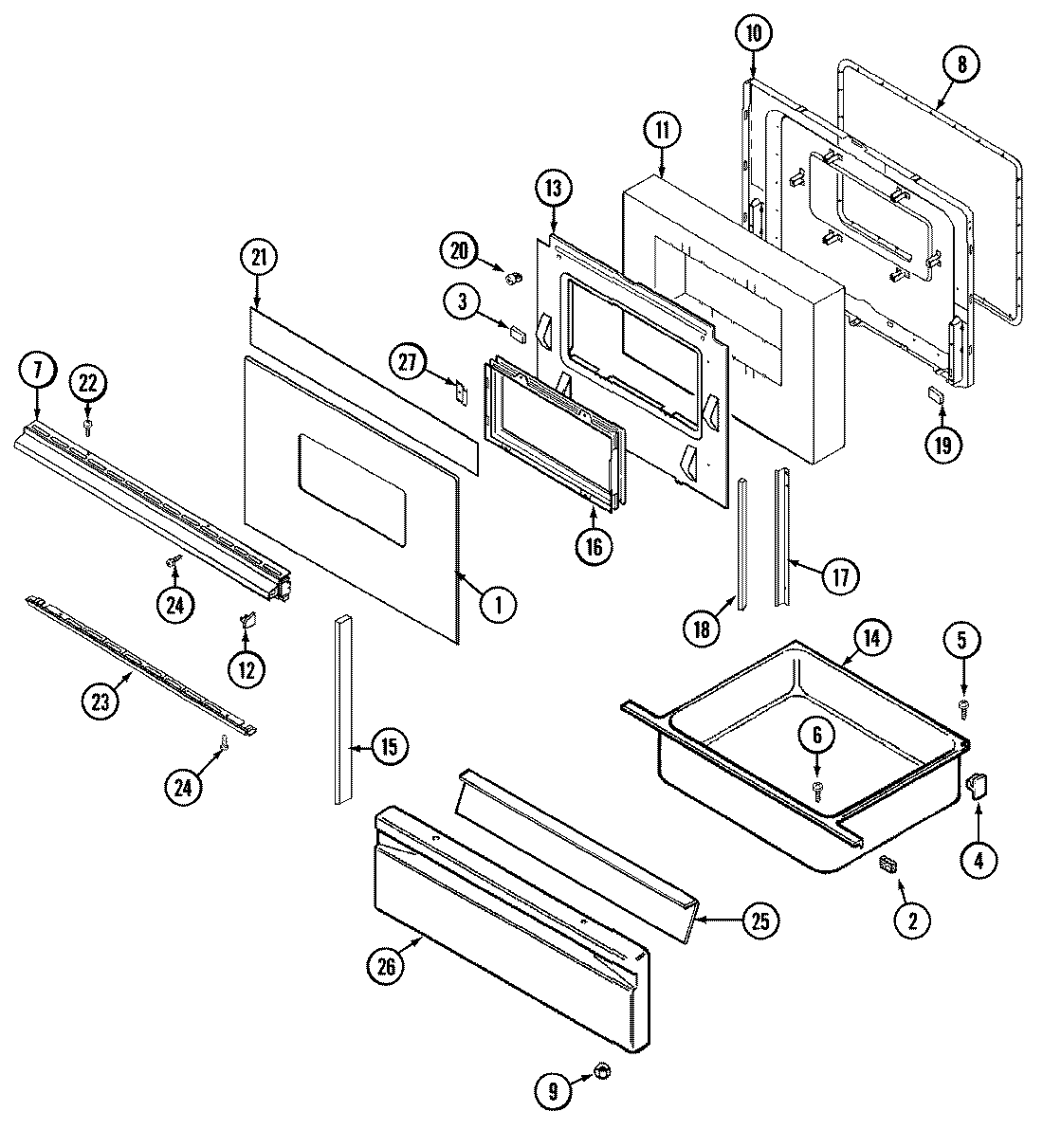

N3478XVA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P086-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	MAY 7101P291-60
6	WP7101P072-60 Whirlpool Screw
7	MAY 7701P103-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W209-19
11	MAY 4804F051-60
12	MAY 7744P076-60
12	MAY 7744P075-60
13	MAY 3601F236-47
14	MAY 3405F018-80
15	MAY 7744P055-60
15	MAY 8270P093-60
16	MAY 7907P021-60
17	MAY 3818F052-51
18	MAY 7208P002-60
19	MAY 7208P011-60
20	MAY 7103P045-60
21	MAY 8270P078-60
22	WP98008545 Whirlpool Screw
23	MAY 7744P103-60
24	MAY 7101P290-60
25	LINING, DRAWER PANEL
26	MAY 2416F038-64
27	MAY 3805F002-34
27	MAY 74001449
