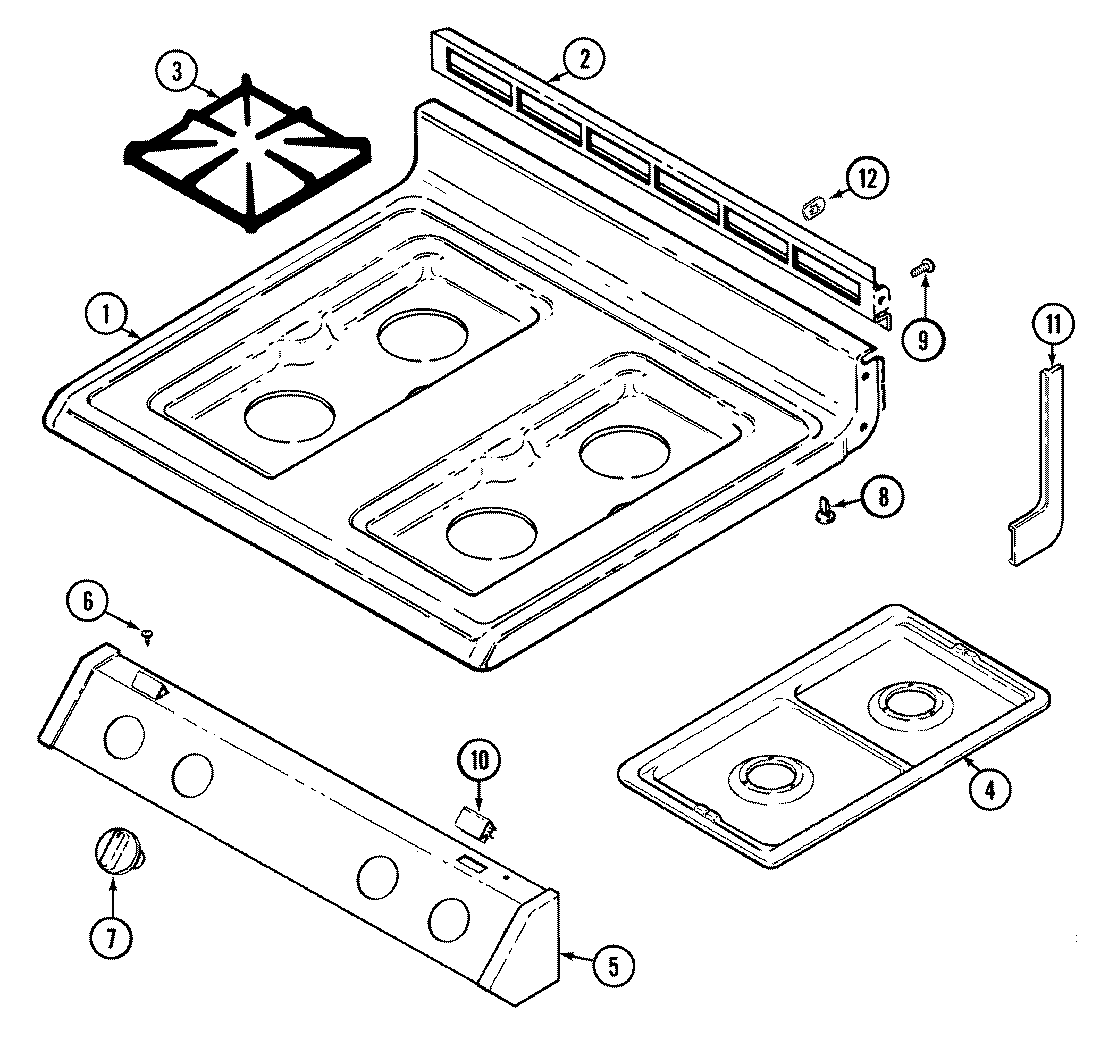

N3478XVA 07 – TOP ASSEMBLY

N3478XVA 07 – TOP ASSEMBLY

Written by

in

N3478XVA 07 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-84
2MAY 3608F042-09
3MAY 74001653
3WP7518P464-60 Whirlpool Burner Grate
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P190-60
6MAY 7101P329-60
7WP7733P508-60 Whirlpool Knob
8MAY 8016P013-60
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 7746P031-60
11MAY 7746P030-60
12WP3195558 Whirlpool Nut
