N9157^0 04 – OVEN DOOR

N9157^0 04 – OVEN DOOR

Written by

in

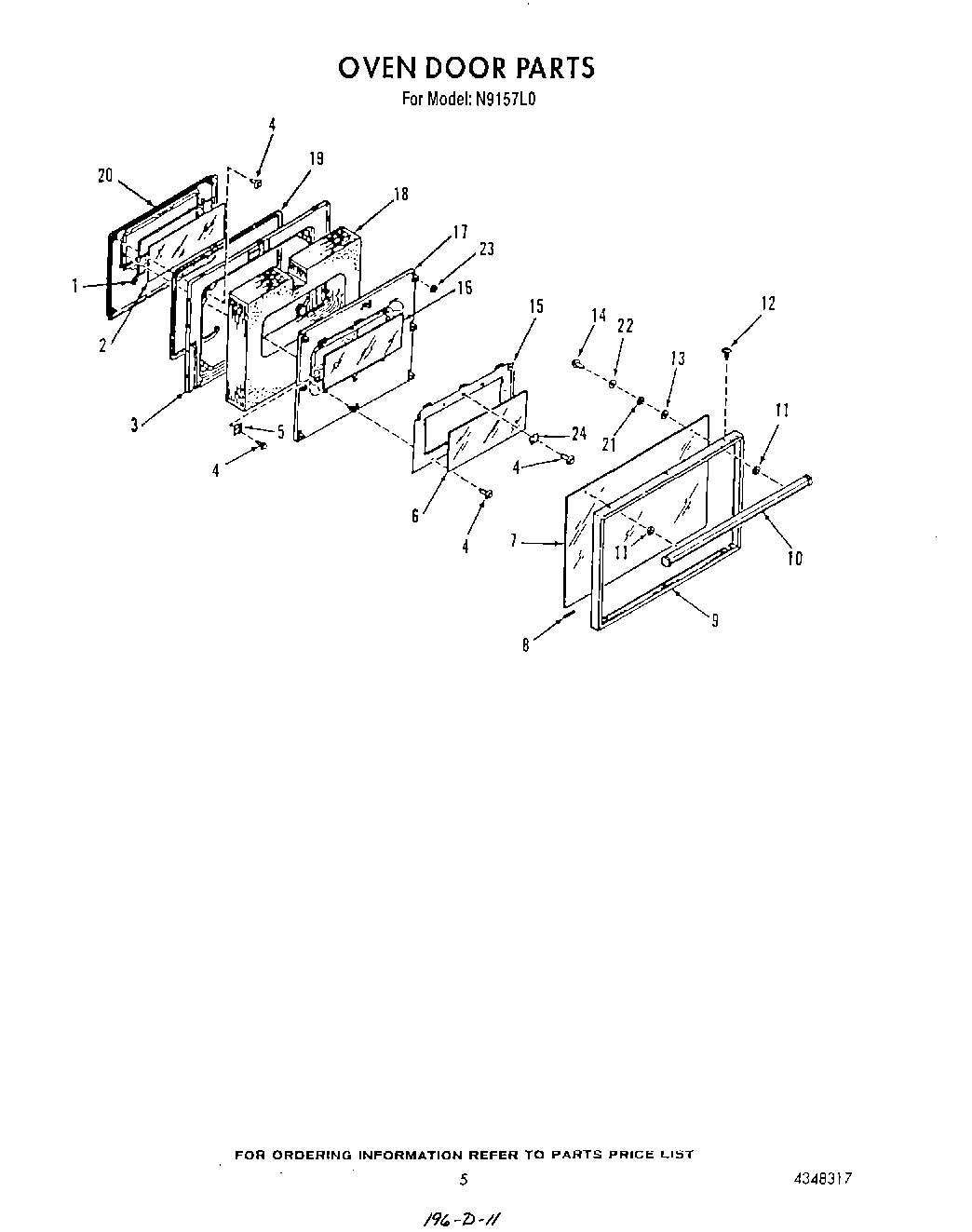

N9157^0 04 – OVEN DOOR

Products

PositionProduct
1Seal, Inner Glass
2Glass-Inner
3Lining, Oven Door
4SCREW
5Retainer
6Glass, Intermediate
7Glass, Outer Oven Door
8Cushion
9Frame, Oven Door
10Handle, Door
11Spacer, Dr. Handle
12Screw No.10-32×1/2
13Washer, Fiber
14WP999367 Whirlpool Refrigerator Screw
15Mounting Plate
16Glass, Center
17Retainer, Insulation
18Insulation,
19Gasket, Door
20Plug, Door Lining
21Spacer, Glass Door
22Washer
23Washer, Felt
24Retainer, Glass
