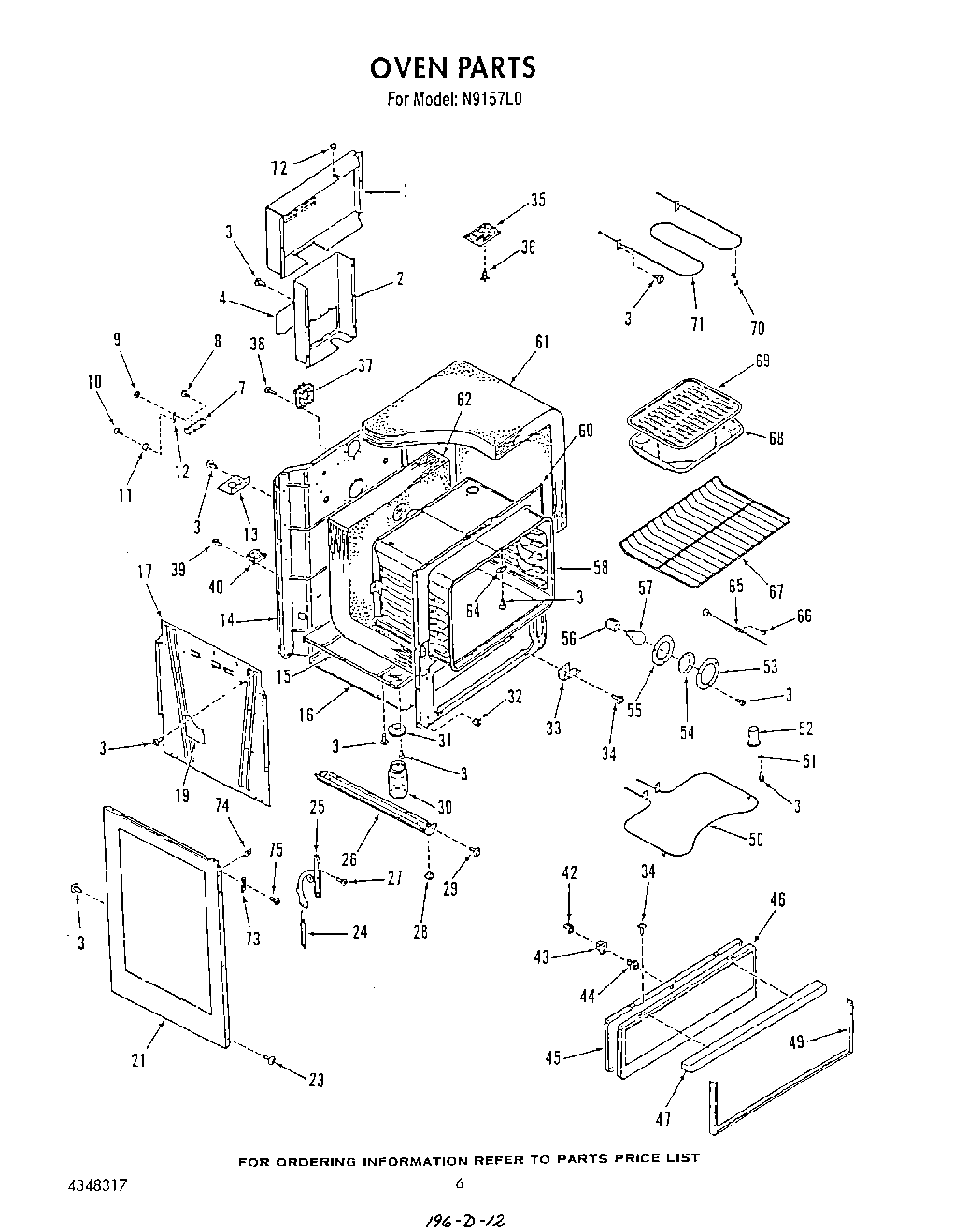

N9157^0 05 – OVEN

N9157^0 05 – OVEN

Written by

in

N9157^0 05 – OVEN

Products

PositionProduct
1Wire Cover, Rear – Upper
2Wire Cover, Lower Rear
3SCREW
4Plate, Access
7WP8203546 Whirlpool Terminal Block
8Screw, No.10-32×1
9Nut, Hex 10-32
10Screw No.10-32×7/16
11Washer
12Strap, Ground
13Service Plate
14Back, Main
15Retainer, Bottom Insulation
16Bottom
17Retainer, Side Insulation
19Wire Cover, End
21Side (Black)
21Side (Almond)
23Screw No.8×5/8
24Spring, Door (2)
25Hinge-Oven Door (Right)
25Hinge-Oven Door (Left)
26Base W/Levelers (Lt/Rt)
27Screw
28Levelers, Leg (4)
29Screw, No.10-32×17/32“
30WPY707869 Whirlpool Drain Jar
31Jar Lid (2)
32Nut-Expansion (6)
33Hinge
34Screw No.10-32×1/2
35Relay, Circuit Board
36Spacer
37Fan Assembly
38Screw No.6-32×7/8
39Screw 6-20×3/8
40WPL 4323673
42Bracket
43Catch
44Strike
45Lining, Lower Door
46Panel, Front Storage Door
47Handle
49Frame, Storage Door Panel
50Element, Bake (240 Volt)
50Bake Element (208 Volt (Opt))
51Washer
52Tube, Vent
53Retainer, Lens
54Lens, Oven Light
55Gasket, Lens
56W10856866 Whirlpool Light Socket
57RANGE ONLY 40W 120V APPL BULB
58Oven Cavity
60Frame, Front
61Insulation, Top & Sides
62Insulation, Back And Bottom
64Cover
65Sensor
66Screw No.6-20×3/8
67Rack, Oven
694396923 Whirlpool Broil Pan Set Gray Porcelain
70Support, Element
71WP4334925 Whirlpool Broil Element
72WPL 4342670
73Cleat
74WPL 4324011
75W10850756 Whirlpool Screw
