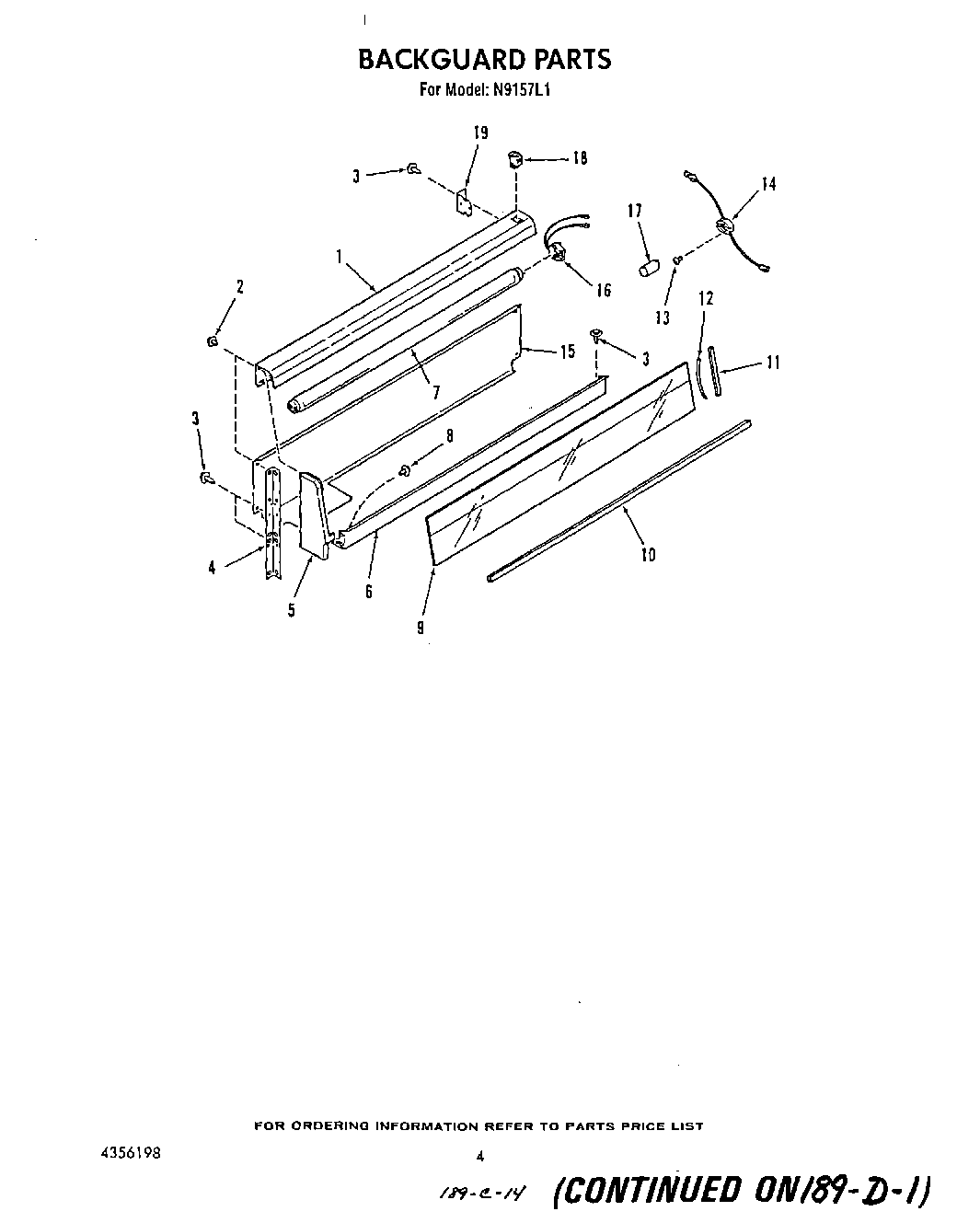

N9157L1 03 – BACKGUARD

Products

Position	Product
1	Shade, Lamp
2	Screw No.10-32×1/4
3	SCREW
4	Support, Backguard
5	End Cap (Left)
5	End Cap (Right)
6	Backsplash
7	WP95292 Whirlpool Fluorescent Light Bulb
8	Screw No.6-32×3/16“
9	Glass, Backguard
10	Trim, Bottom
11	Trim, Side
12	Spring, Trim
13	Screw No.4-40×11/16
14	Starter, Base
15	Cover, Wire
16	Lamp Holder (Right)
16	Holder, Lamp (Left)
17	WPL 4337125
18	Switch
19	Bracket
