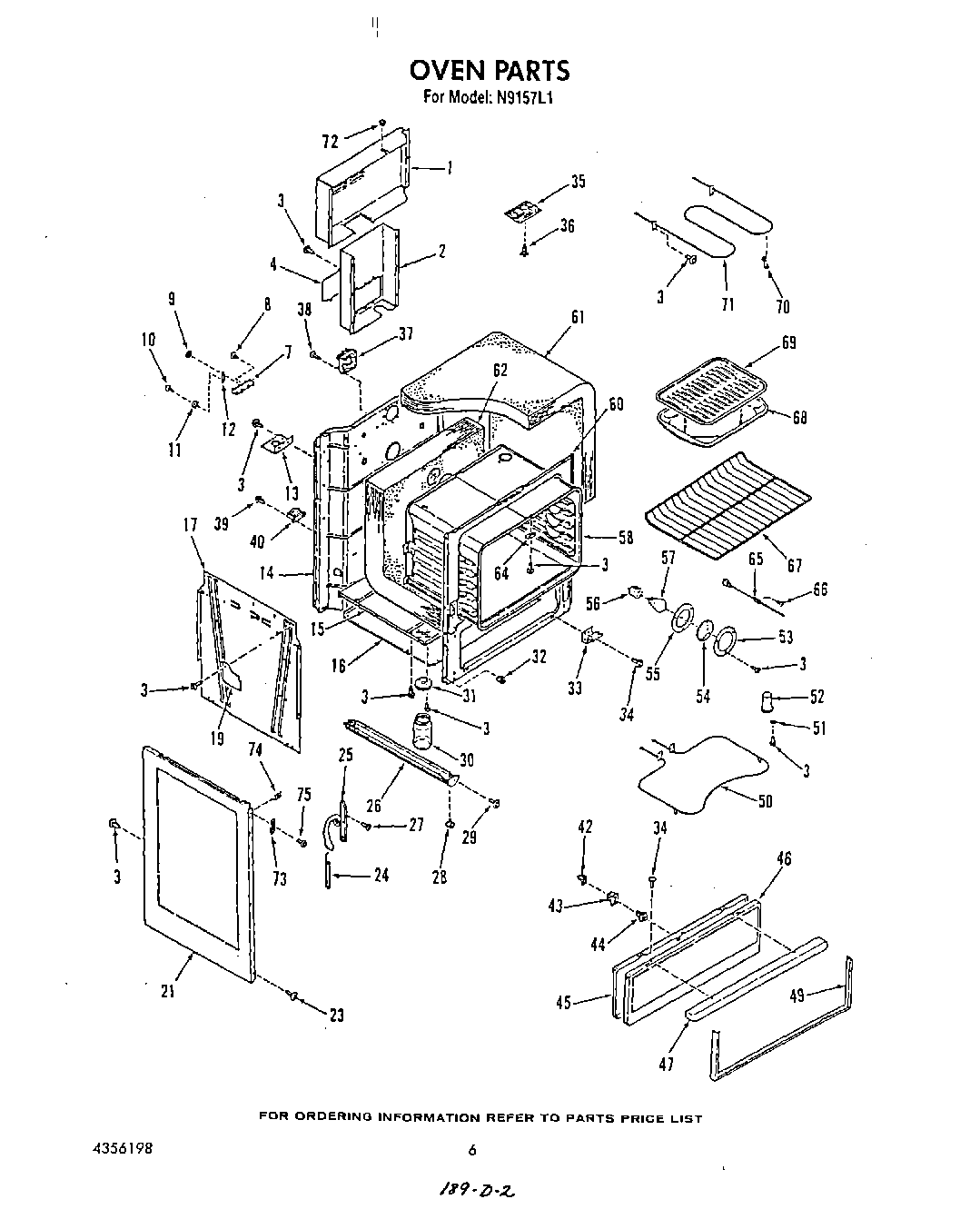

N9157L1 05 – OVEN
Written by
in
N9157L1 05 – OVEN
Products
Position
Product
1
Wire Cover, Rear – Upper
2
Wire Cover, Lower Rear
3
SCREW
4
Plate, Access
7
WP8203546 Whirlpool Terminal Block
8
Screw, No.10-32×1
9
Nut, Hex 10-32
10
Screw No.10-32×7/16
11
Washer
12
Strap, Ground
13
Service Plate
14
Back, Main
15
Retainer, Bottom Insulation
16
Bottom
17
Retainer, Side Insulation
19
Wire Cover, End
21
Side (Black)
21
Side (Almond)
23
Screw No.8×5/8
24
Spring, Door (2)
25
Hinge-Oven Door (Right)
25
Hinge-Oven Door (Left)
26
Base W/Levelers, Lt/Rt
27
Screw
28
Leg Leveler (4)
29
Screw, No.10-32×17/32“
30
WPY707869 Whirlpool Drain Jar
31
Jar Lid (2)
32
Nut-Expansion (6)
33
Hinge
34
Screw No.10-32×1/2
35
Relay, Circuit Board
36
Spacer
37
Fan Assembly
38
Screw No.6-32×7/8
39
Screw 6-20×3/8
40
WPL 4323673
42
Bracket
43
Catch
44
Strike
45
Lining, Lower Door
46
Panel, Front Storage Door
47
Handle
49
Frame, Storage Door Panel
50
Element, Bake (240 Volt)
50
Bake Element (208 Volt (Opt))
51
Washer
52
Tube, Vent
53
Retainer, Lens
54
Lens, Oven Light
55
Gasket, Lens
56
W10856866 Whirlpool Light Socket
57
RANGE ONLY 40W 120V APPL BULB
58
Oven Cavity
60
Frame, Front
61
Insulation, Top & Sides
62
Insulation, Back And Bottom
64
Cover
65
Sensor
66
Screw No.6-20×3/8
67
Rack, Oven
69
4396923 Whirlpool Broil Pan Set Gray Porcelain
70
Support, Element
71
WP4334925 Whirlpool Broil Element
72
WPL 4342670
73
Cleat
74
WPL 4324011
75
W10850756 Whirlpool Screw
←
