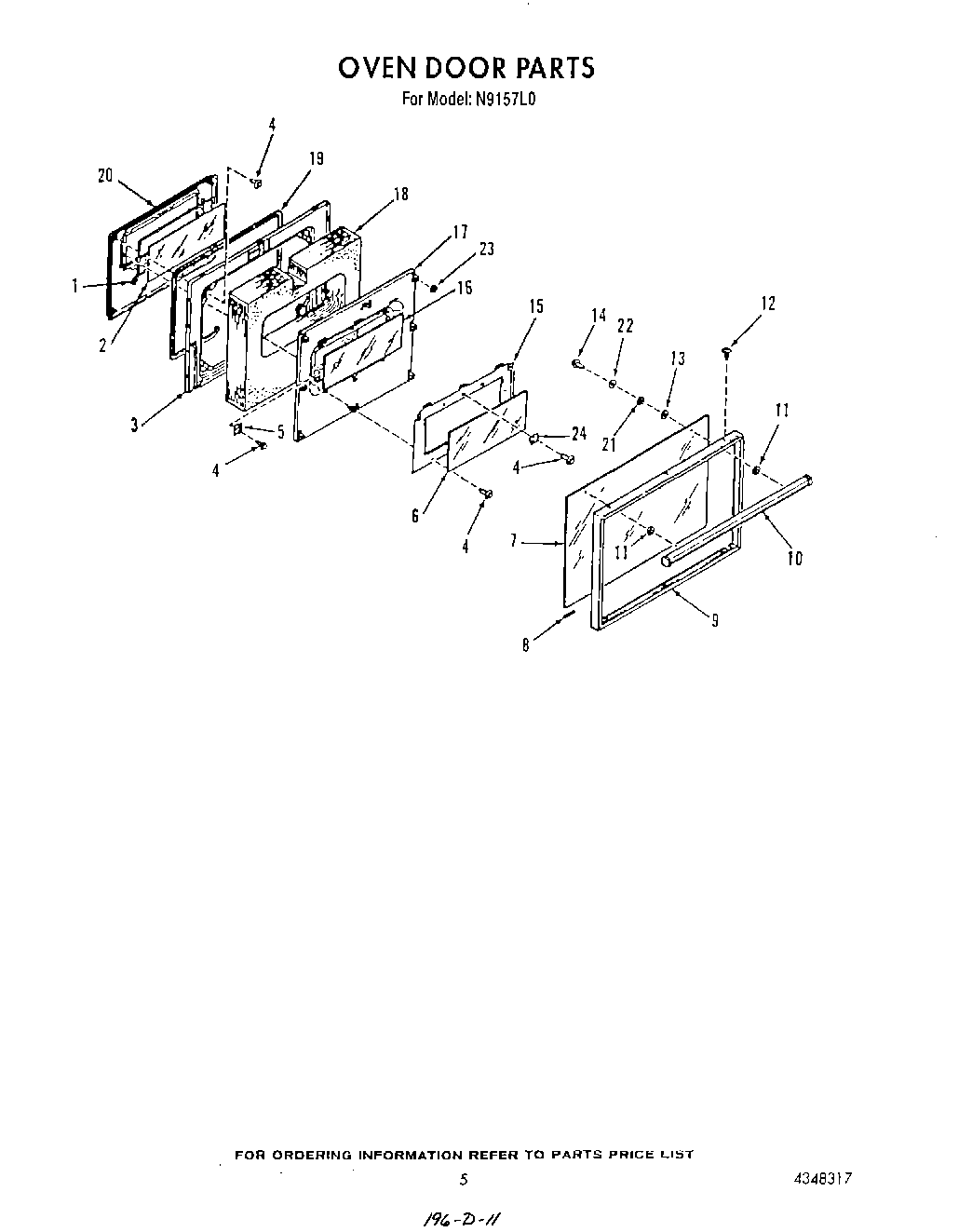

N9157X0 04 – OVEN DOOR

Products

Position	Product
1	Seal, Inner Glass
2	Glass-Inner
3	Lining, Oven Door
4	SCREW
5	Retainer
6	Glass, Intermediate
7	Glass, Outer Oven Door
8	Cushion
9	Frame, Oven Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw No.10-32×1/2
13	Washer, Fiber
14	WP999367 Whirlpool Refrigerator Screw
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation,
19	Gasket, Door
20	Plug, Door Lining
21	Spacer, Glass Door
22	Washer
23	Washer, Felt
24	Retainer, Glass
