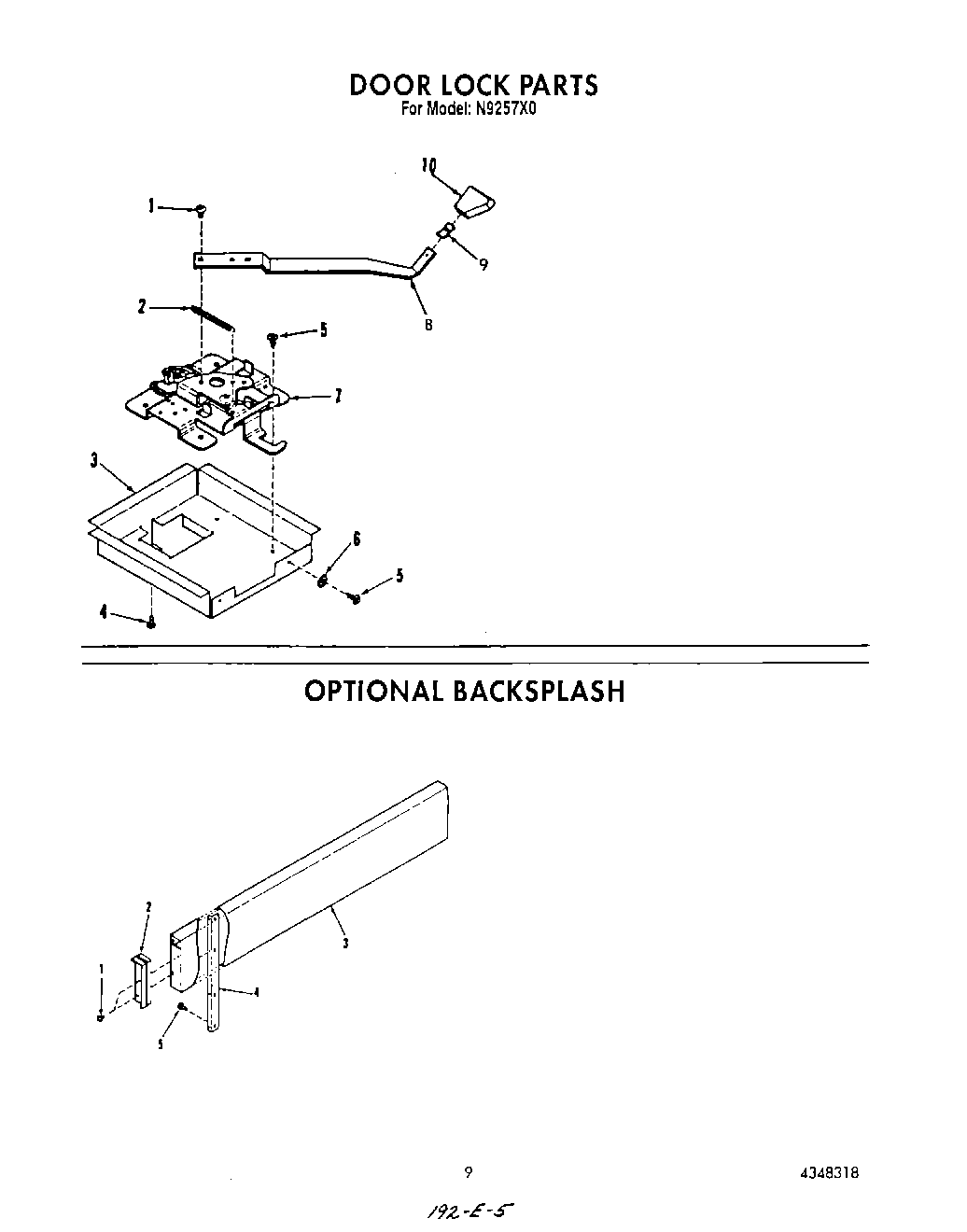

N9257^0 07 – DOOR LOCK , BACKSPLASH

Products

Position	Product
	xInstruction Sheet
	WPL 4323217
	xInstallation Guide
	xUse & Care Manual
	xRepair Parts List
	xParts Not Shown On Illustration
1	Screw, No.10-24 x 1/4
1	Screw No.6-20×3/8
2	Spring
2	Cap, End
3	Box, Mounting
3	Backsplash
4	Support, Backsplash
4	Screw 6-20×3/8
5	SCREW
5	Wire Harness (Sensor)
5	Control
6	Washer
7	Lock Assembly, (Inc`s Illus. No.2)
8	Handle, Lock
9	Clip
10	Knob, Lock
