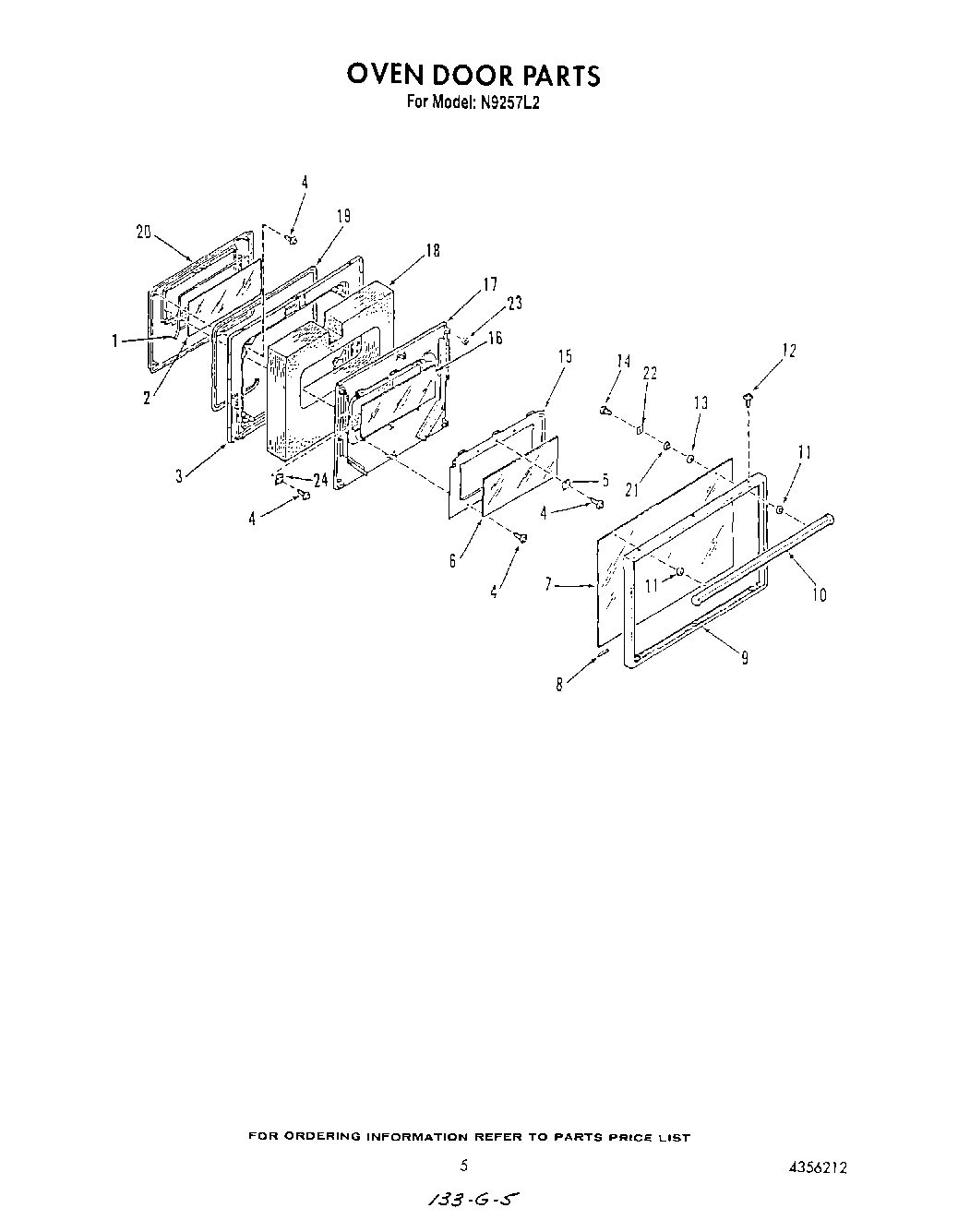

N9257^2 04 – OVEN DOOR

Products

Position	Product
1	Seal, Inner Glass
2	Glass-Inner
3	Lining, Oven Door
4	W10850756 Whirlpool Screw
6	Glass, Intermediate
7	Glass, Outer Oven Door
8	Cushion
9	Frame, Oven Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw No.10-32×1/2
13	Washer, Fiber
14	Screw, No.10-32 x 3/4
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation,
19	Gasket, Door
20	Plug, Door Lining
21	Spacer, Glass Door
22	Retainer
23	Washer, Felt
24	Wire Harness (Flag Terminal Faston Terminal)
24	Eyelet Terminal
24	Wire Harness (Sensor)
24	Control
24	Fuse, Thermal
24	Wire, Relay
24	WP285432 Whirlpool Terminal
24	Retainer
