N9257^2 07 – DOOR LOCK – Aparts

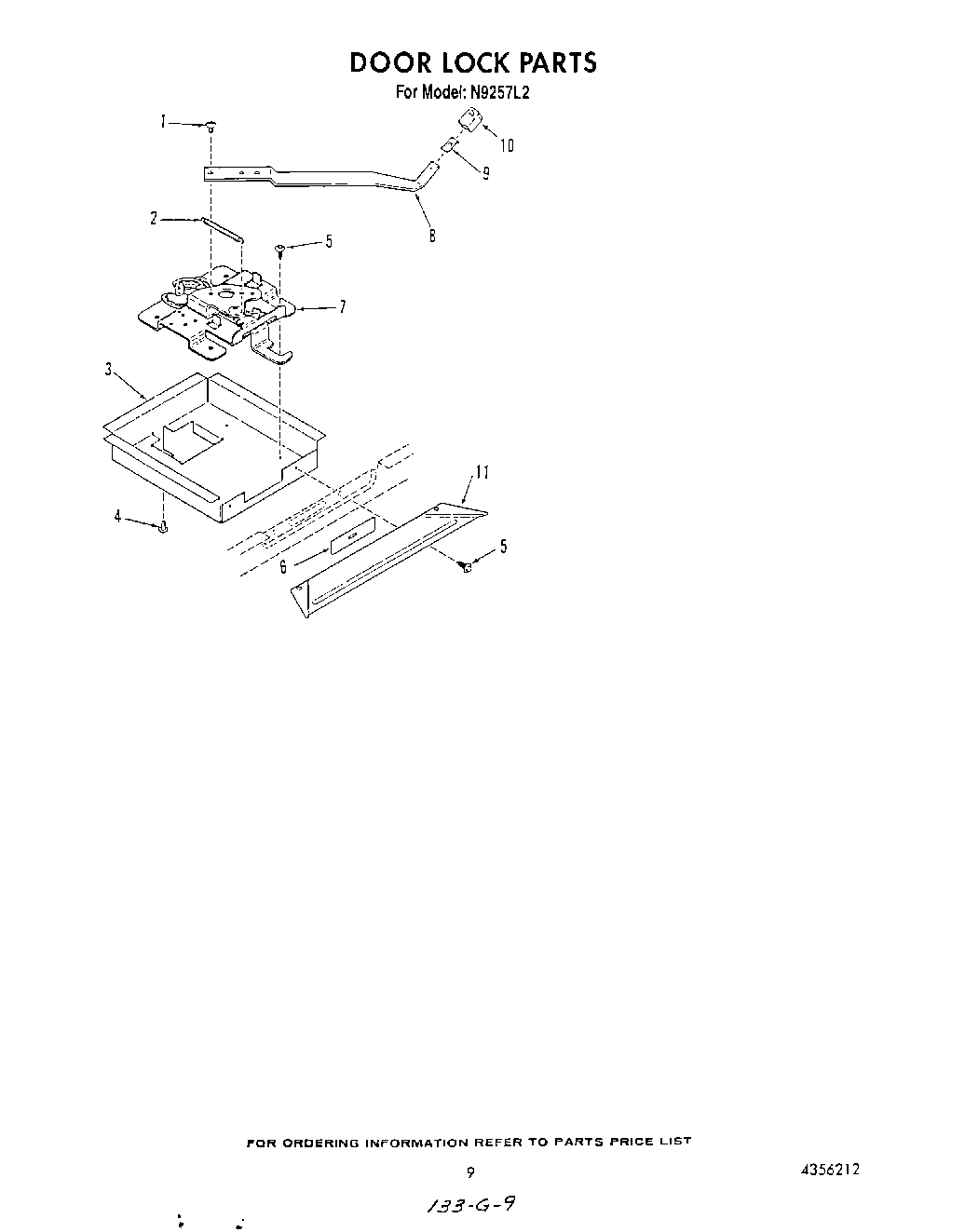

N9257^2 07 – DOOR LOCK

Products

Position	Product
1	Screw, No.10-24 x 1/4
2	Spring
3	Box, Mounting
4	Screw 6-20x3/8
5	W10850756 Whirlpool Screw
6	Moisture Plate
7	Lock Assembly, (Inc`s Illus. No.2)
8	Handle, Lock
9	Clip
10	Knob, Lock
11	Moisture Shield
