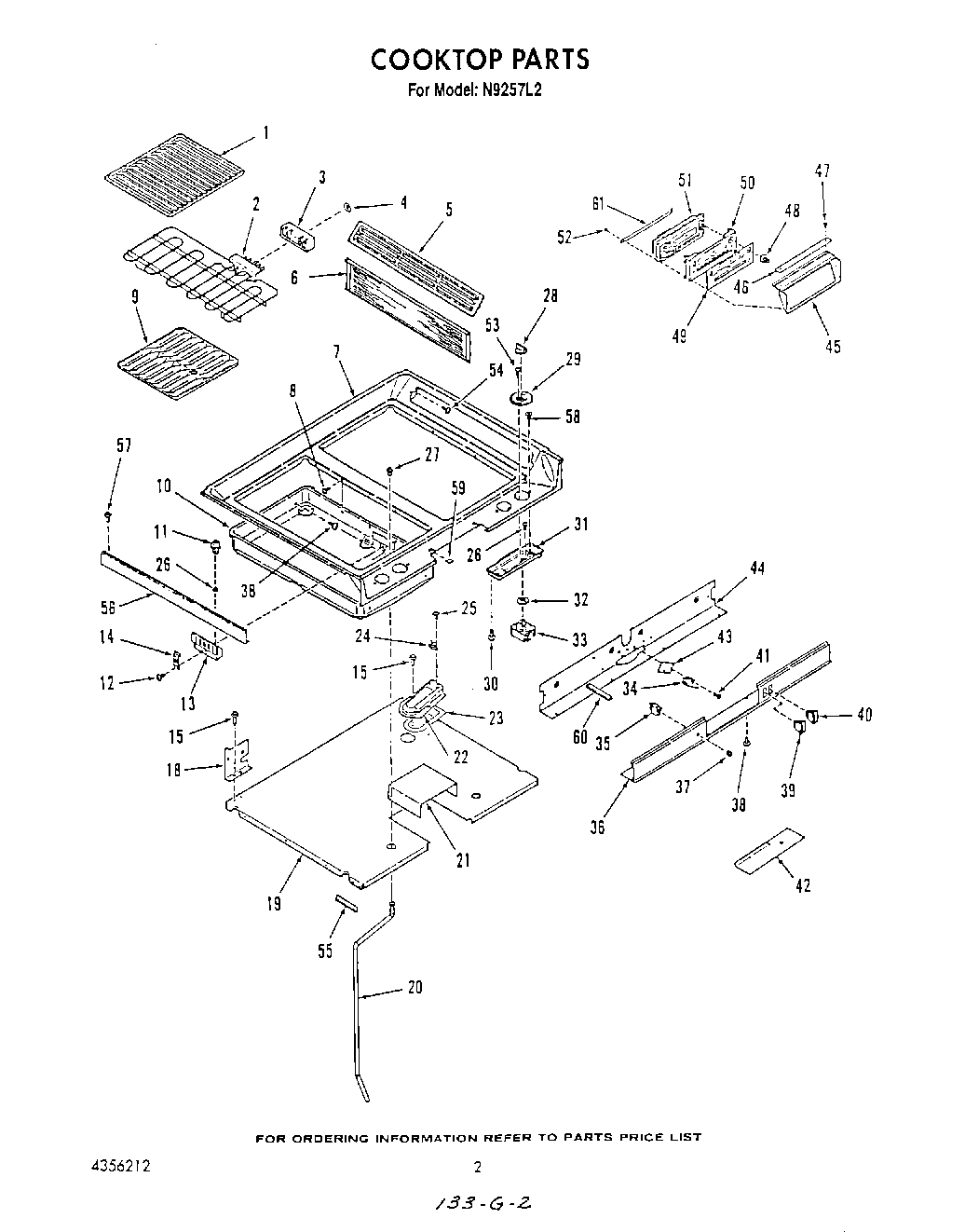

N9257L2 02 – COOKTOP
Written by
in
N9257L2 02 – COOKTOP
Products
Position
Product
1
Grate-Grill
2
Element, Grill (240 Volt)
2
Element, Grill (208 Volt (Opt.))
3
Block, Terminal
4
Clip – Push on
5
Grill, Air Intake
6
Air Filter
7
Cooktop, Main (Almond)
7
Cooktop, Main (Chrome)
8
Screw No.6-20×3/8
9
Reflector Grid
10
Grease Well (Right)
10
Grease Well (Left)
11
Terminal
12
Screw, No.8-32 x 3/8
13
Block, Terminal
14
Clamp, Terminal Block
15
W10850756 Whirlpool Screw
18
Rear Filler (Right)
18
Rear Filler (Left)
19
Retainer, Insul.
20
Tube, Grease
21
Cover, Latch
22
Flue Duct
23
Gasket, Flue
24
Limit Switch, Blower
25
Screw 6-32×5/16
27
Fitting, Tube
28
Knob, Infinite
29
Bezel, Knob (Right Rear)
29
Bezel, Knob (Left Front)
29
Bezel, Knob (Right Front)
29
Bezel, Knob (Left Rear)
30
Screw No.10-32×7/16
31
Plate, Mounting
32
Seal, Control
33
W10900107 Whirlpool Oven Surface Element Switch
34
Switch, Micro
35
Light, Indicator
36
Panel, Control
37
Lens, Ind. Light
38
WP308685 Whirlpool Microwave Screw
39
Rocker Switch, Blower/Hi-Lo
40
Rocker Switch, Blower/Oven Light
41
Screw
42
Insulator
43
Insulator
44
Back, Control
45
Bezel, Clock/Oven Control
46
Plate, Clock/Oven Control
47
Screw, No.6-20 x 7/16
48
Knob, Clock/Oven Control
49
WPL 4337075
50
Lens, Clock/Oven C
51
WPL 4343011
52
WPL 4337582
53
Scre
54
Screw
55
WPL 4335097
56
WPL 4342657
56
WPL 4342658
57
Screw No.6-32×3/16“
58
WPL 4342651
59
WPL 4337543
60
WPL 4337340
61
WPL 4343107
←
