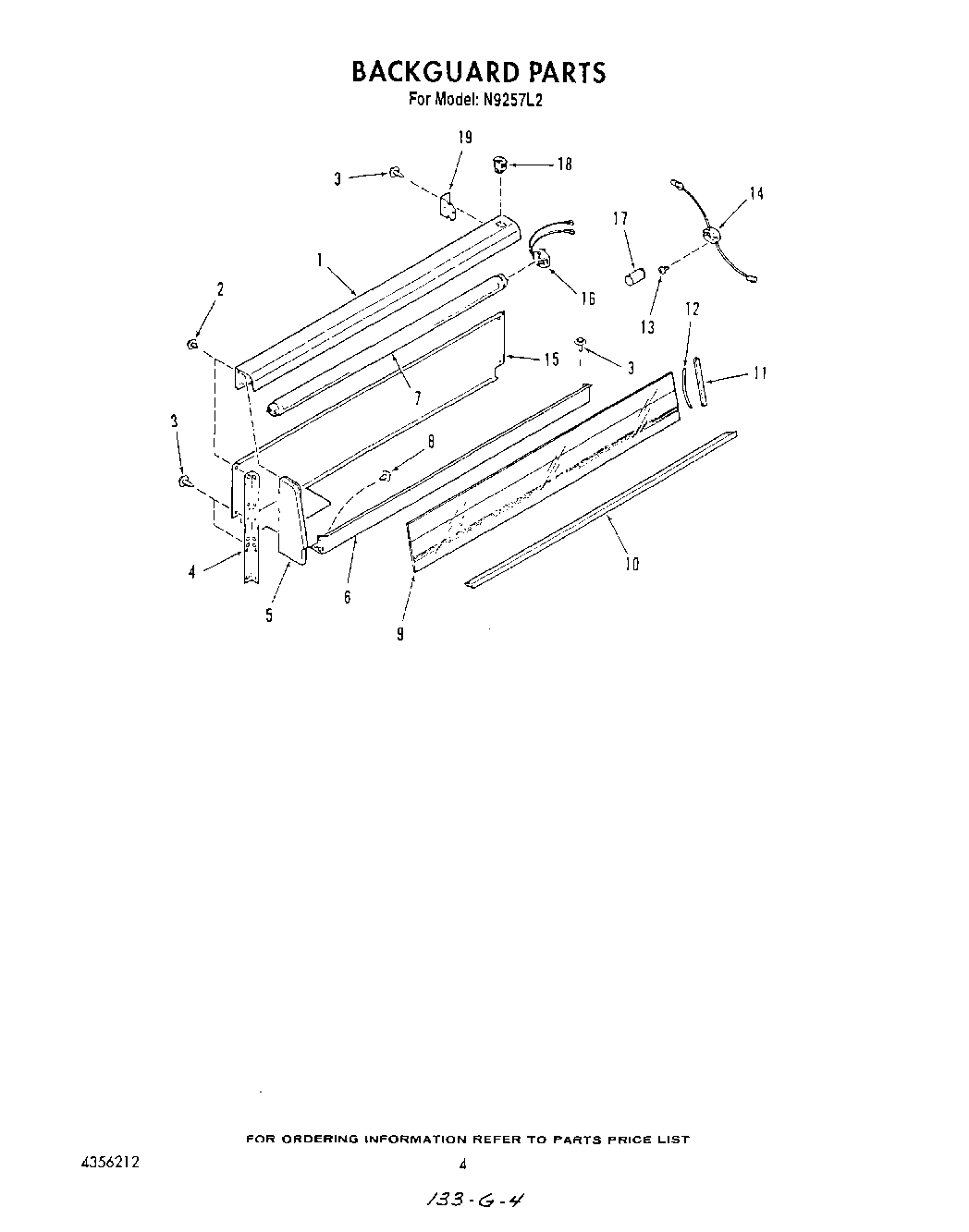

N9257L2 03 – BACKGUARD

Products

Position	Product
1	Shade, Lamp
2	Screw No.10-32×1/4
3	W10850756 Whirlpool Screw
4	Support, Backguard
5	End Cap (Left)
5	End Cap (Right)
6	Backsplash
7	WP95292 Whirlpool Fluorescent Light Bulb
9	Glass, Backguard
10	Trim, Bottom-glass
11	Trim, End
12	Spring, Trim
13	Screw No.6-32×3/16“
14	Starter, Base
15	Cover, Wire
16	Holder, Lamp (Left)
16	Lamp Holder (Right)
17	WPL 4337125
18	Switch
19	Bracket
