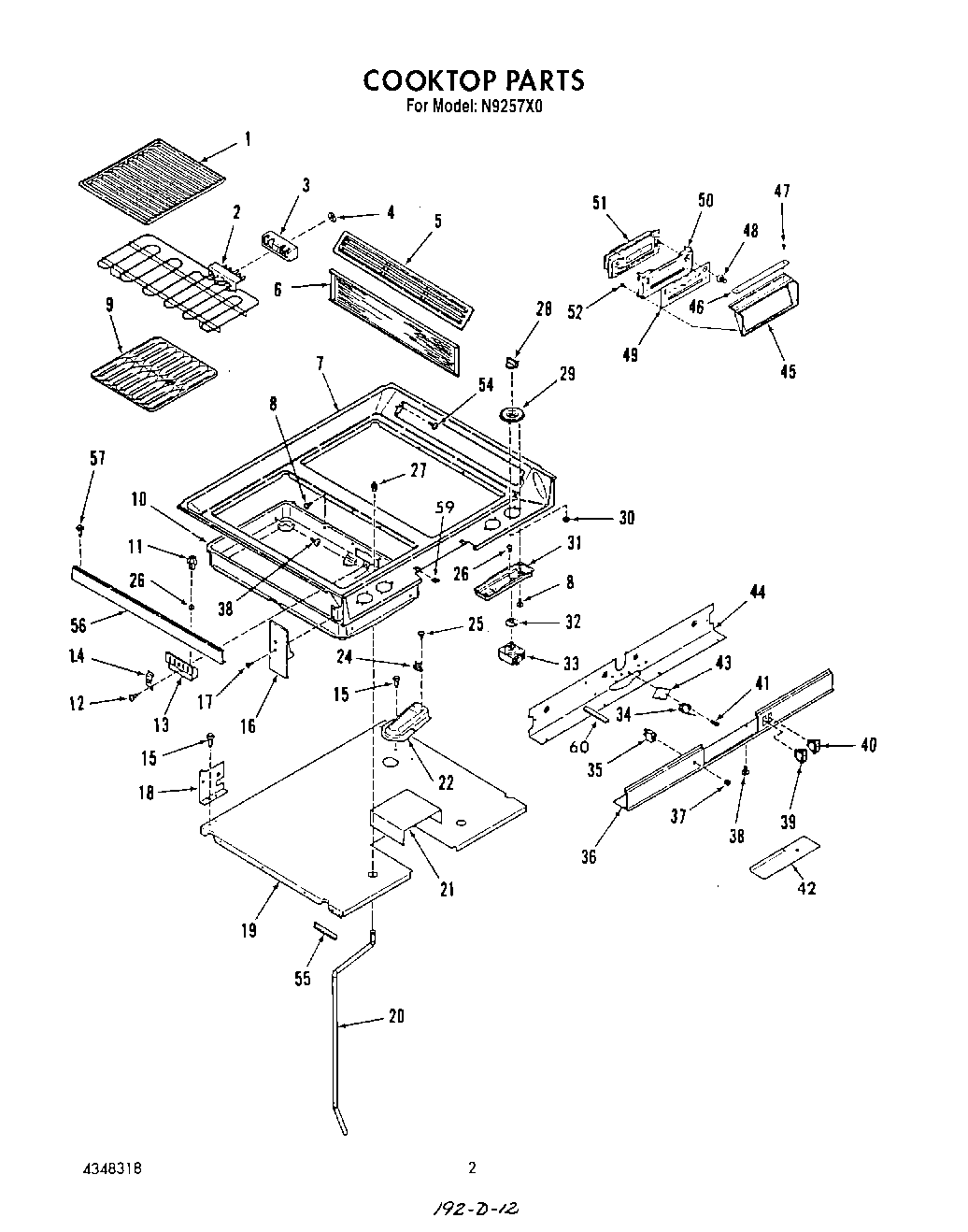

N9257X0 02 – COOK TOP

Products

Position	Product
1	Grate-Grill
2	Element, Grill (208 Volt (Opt.))
2	Element, Grill (240 Volt)
3	Block, Terminal
4	Clip – Push on
5	Grill, Air Intake
6	Air Filter
7	Cooktop, Main (Almond)
7	Cooktop, Main (Chrome)
8	Screw No.6-20×3/8
9	Reflector Grid
10	Grease Well (Right)
10	Grease Well (Left)
11	Terminal
12	Screw, No.8-32 x 3/8
13	Block, Terminal
14	Clamp, Terminal Block
15	SCREW
16	End Cap (Left)
16	End Cap (Right)
17	Screw No.10-32×1/2
18	Rear Filler (Right)
18	Rear Filler (Left)
19	Retainer, Insul.
20	Tube, Grease
21	Cover, Latch
22	Flue Duct
24	Limit Switch, Blower
25	Screw 6-32×5/16
26	Screw No.8-32×1/4“ (6 Req)
27	Fitting, Tube
28	Knob, Infinite
29	Bezel, Knob (Right Rear)
29	Bezel, Knob (Right Front)
29	Bezel, Knob (Left Front)
29	Bezel, Knob (Left Rear)
30	Nut, Speed
31	Plate, Mounting
32	Seal, Control
33	W10900107 Whirlpool Oven Surface Element Switch
34	Switch, Micro
35	Light, Indicator
36	Panel, Control
37	Lens, Ind. Light
38	WP308685 Whirlpool Microwave Screw
39	Rocker Switch, Blower/Hi-Lo
40	Rocker Switch, Blower/Oven Light
41	Screw No.4-40×11/16
42	Insulator
43	Insulator
44	Back, Control
45	Bezel, Clock/Oven Control
46	Plate, Clock/Oven Control
48	Knob, Clock/Oven Control
49	WPL 4337075
50	Lens, Clock/Oven C
51	WPL 4343004
52	WPL 4337582
54	Screw
55	WPL 4335097
56	WPL 4342657
56	WPL 4342658
57	Screw No.6-32×3/16“
58	WPL 4342659
59	WPL 4337543
60	WPL 4337340
