N9257X0 05 – OVEN
Written by
in

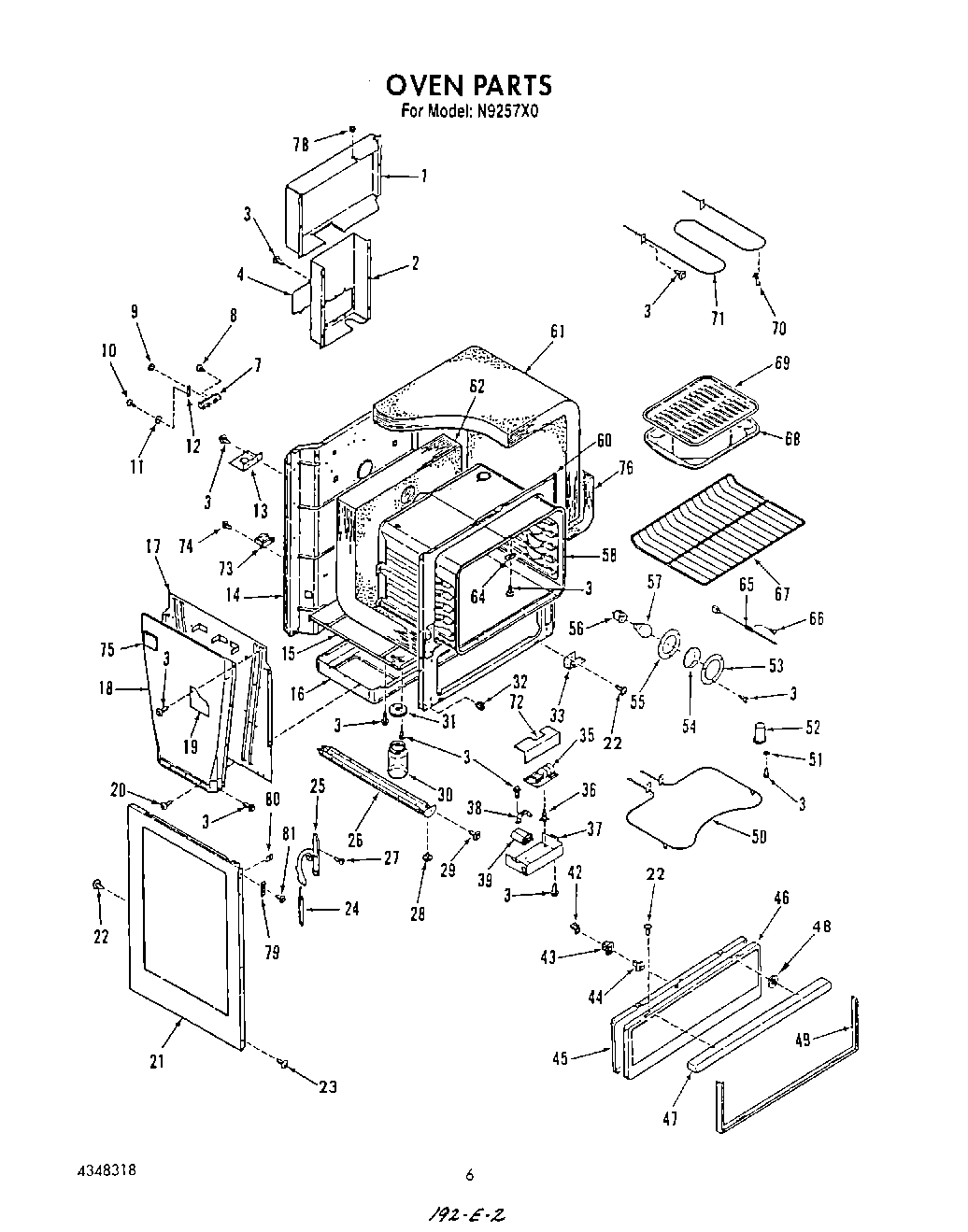

N9257X0 05 – OVEN
Products
Position
Product
1
Wire Cover, Rear – Upper
2
Wire Cover, Lower Rear
4
Plate, Access
7
WP8203546 Whirlpool Terminal Block
8
Screw, No.10-32×1
9
Nut, Hex 10-32
10
Screw No.10-32×7/16
11
Washer
12
Strap, Ground
13
Service Plate
14
Back, Main
15
Retainer, Bottom Insulation
16
Plenum
17
Retainer, Side Insulation
18
Box, Vent
19
Wire Cover, End
20
WP308685 Whirlpool Microwave Screw
21
Side (Left – Almond)
21
Side (Right – Black)
21
Side (Right – Almond)
21
Side (Left – Black)
22
SCREW
23
Screw No.8×5/8
24
Spring, Door (2)
25
Hinge-Oven Door (Right)
25
Hinge-Oven Door (Left)
26
Base W/Levelers (Lt/Rt)
27
Screw
28
Levelers, Leg (4)
29
Screw, No.10-32×17/32“
30
WPY707869 Whirlpool Drain Jar
31
Jar Lid (2)
32
Nut-Expansion (6)
33
Hinge
35
Circuit Board W/Relay & Transf.
36
Spacer
37
Cover, Wire
38
Clamp, Capacitor
39
Capacitor
42
Bracket
43
Catch
44
Strike
45
Lining, Lower Door
46
Panel, Lower Door
47
Handle, Lock
48
Spacer, Dr. Handle
49
Frame, Drawer
50
Bake Element (208 Volt (Opt))
50
Element, Bake (240 Volt)
51
Washer
52
Tube, Vent
53
Retainer, Lens
54
Lens, Oven Light
55
Gasket, Lens
56
W10856866 Whirlpool Light Socket
57
RANGE ONLY 40W 120V APPL BULB
58
Oven Cavity
60
Frame, Front
61
Insulation, Top & Sides
62
Insulation, Back And Bottom
64
Cover
65
Sensor
66
Screw
67
Rack, Oven
69
4396923 Whirlpool Broil Pan Set Gray Porcelain
70
Support, Element
71
WP4334925 Whirlpool Broil Element
72
WPL 4337413
73
WPL 4323673
74
Screw 6-20×3/8
75
WPL 4338237
76
Insulation
78
WPL 4342670
79
Cleat
80
WPL 4324011
81
W10850756 Whirlpool Screw
←
