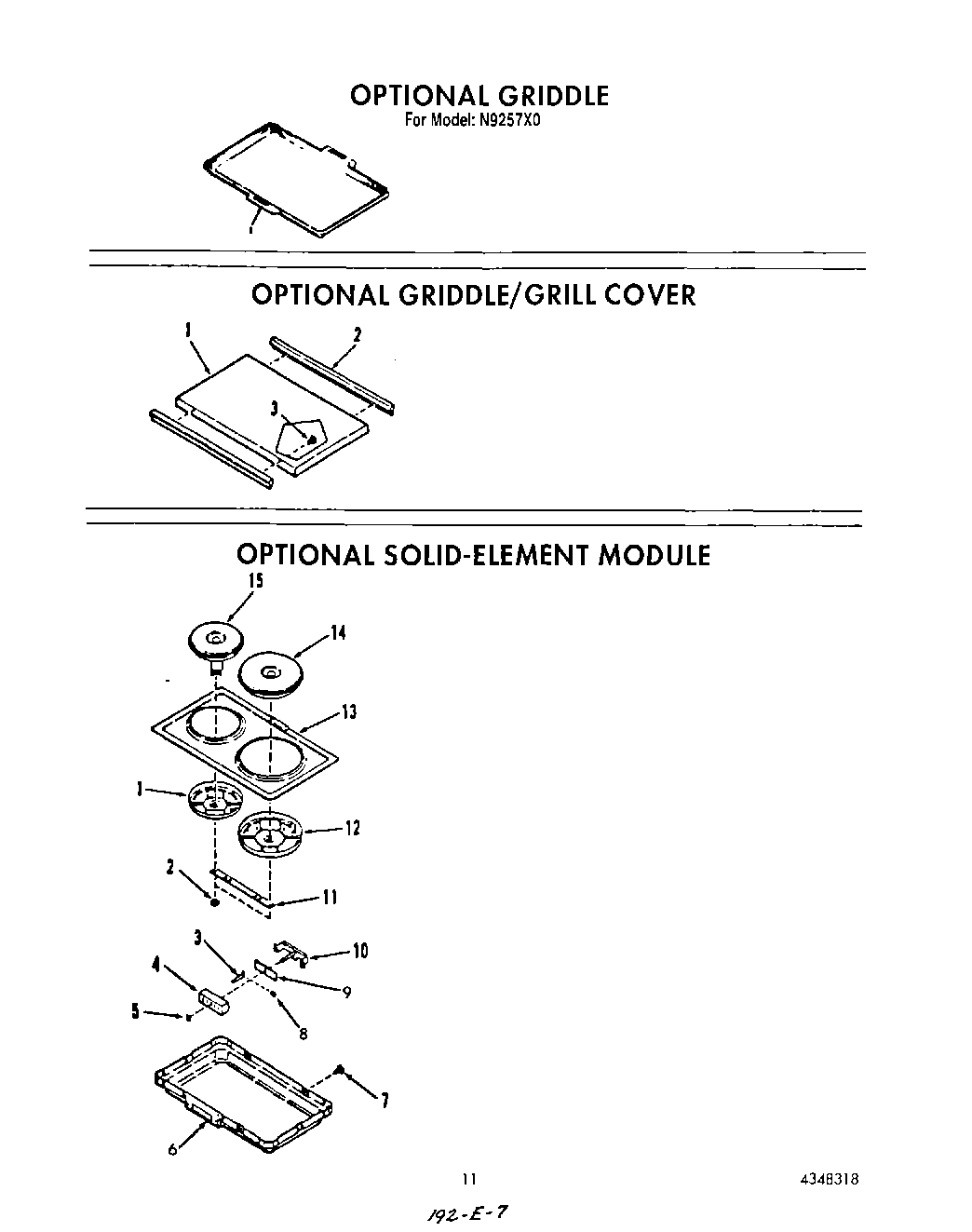

N9257X0 09 – GRIDDLE , GRIDDLE/GRILL COVER

Products

Position	Product
1	Clamp
1	Griddle
1	Cover
2	Nut, Mount. (2)
2	Handle, (Left/Right)
3	Screw
3	Pin, Terminal (4)
4	Block, Terminal
5	Nut, Speed
6	Pan-Module
7	Screw, No.8-32 x 3/8
8	Screw
9	Insulator
10	Bracket - Term.
11	Strap, Element
12	Clamp, Elmnt.
13	Cooktop (Chrome)
13	Cooktop (Almond)
14	WP3147132 Whirlpool Surface Element
15	WP3147131 Whirlpool Surface Element
