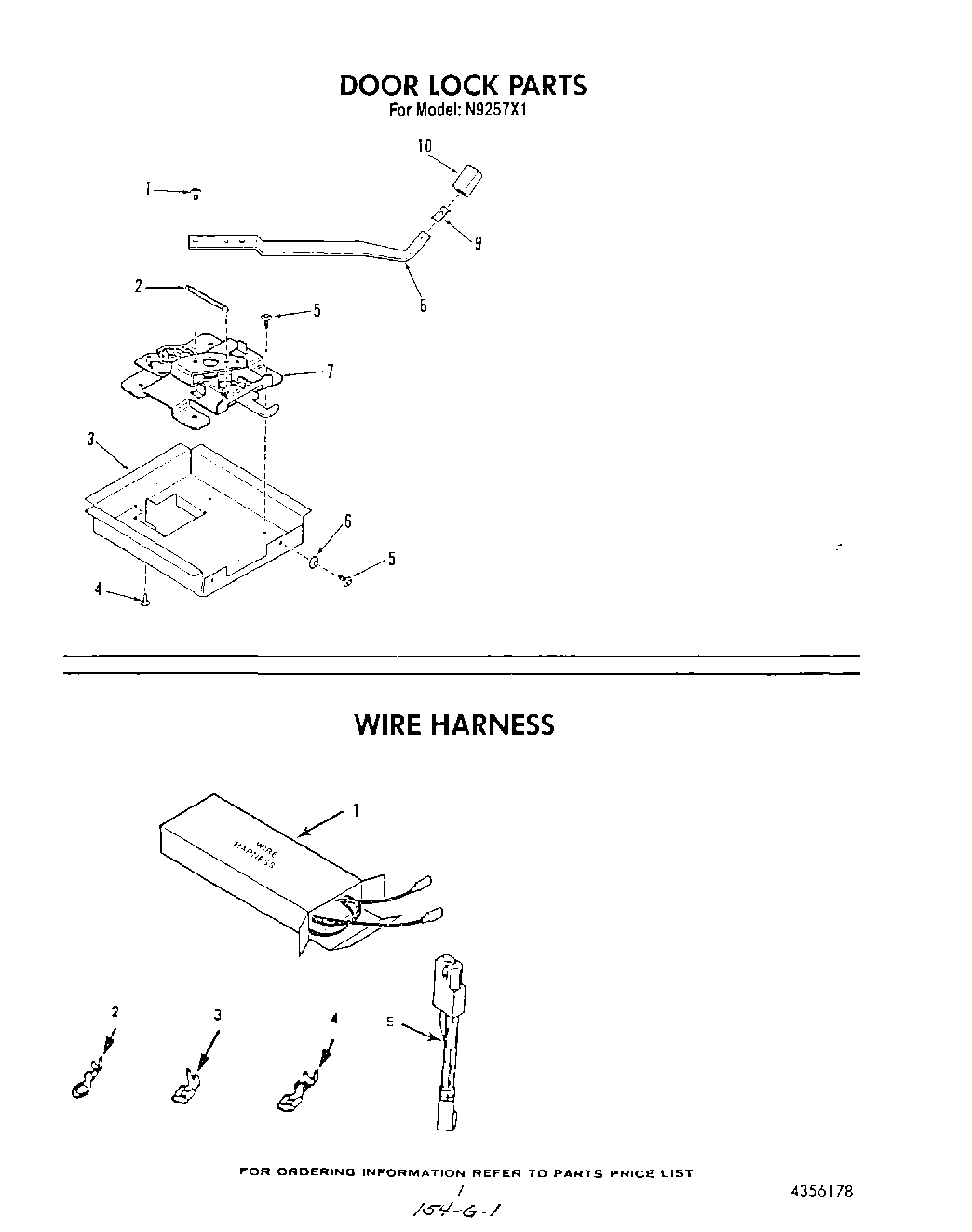

N9257X1 05 – DOOR LOCK , WIRE HARNESSadmin2025-04-26T12:46:46+00:00N9257X1 05 – DOOR LOCK , WIRE HARNESS
Products
| Position | Product |
|---|
| 1 | Harness, Wire (Wire, Relay) |
| 1 | Harness, Wire (Main - Right) |
| 1 | Harness, Wire (Wire, Main - Left) |
| 1 | Harness, Wire (Wire, Blower) |
| 1 | Wire Harness (Sensor) |
| 1 | Control |
| 1 | Screw, No.10-24 x 1/4 |
| 2 | Spring |
| 2 | Eyelet Terminal |
| 3 | Box, Mounting |
| 3 | Wire Harness (Flag Terminal Faston Terminal) |
| 4 | WP285432 Whirlpool Terminal |
| 4 | Screw 6-20x3/8 |
| 5 | Fuse, Thermal |
| 5 | SCREW |
| 6 | Washer |
| 7 | Lock Assembly, (Inc`s Illus. No.2) |
| 8 | Handle, Lock |
| 9 | Clip |
| 10 | Knob, Lock |
