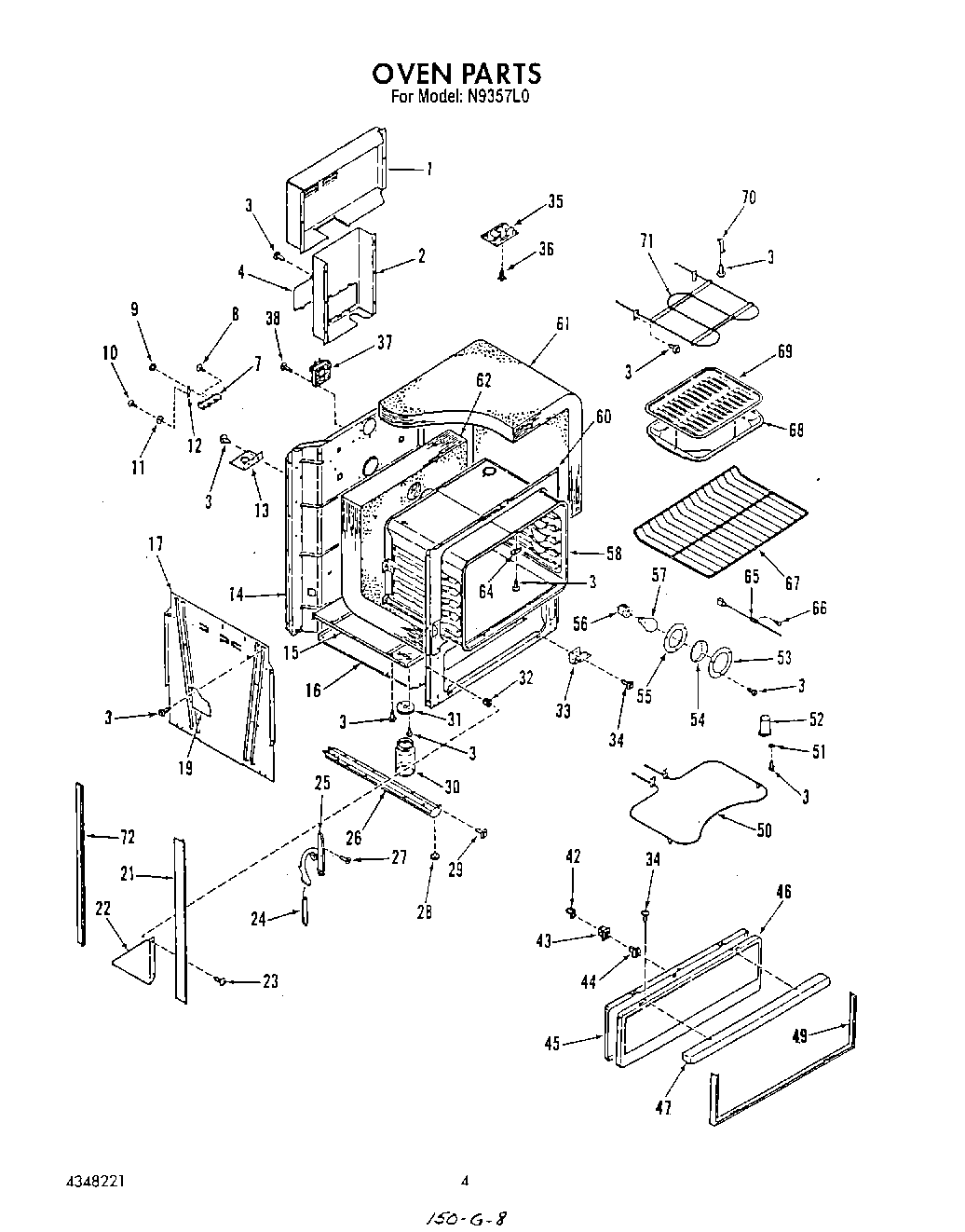

| 1 | Wire Cover, Rear - Upper |
| 2 | Wire Cover, Lower Rear |
| 3 | SCREW |
| 4 | Plate, Access |
| 7 | WP8203546 Whirlpool Terminal Block |
| 8 | Screw, No.10-32x1 |
| 9 | Nut, Hex 10-32 |
| 10 | Screw No.10-32x7/16 |
| 11 | Washer |
| 12 | Strap, Ground |
| 13 | Service Plate |
| 14 | Back, Main |
| 15 | Retainer, Bottom Insulation |
| 16 | Bottom |
| 17 | Retainer, Side Insulation |
| 19 | Wire Cover, End |
| 21 | Side Trim (Left) |
| 21 | Side Trim (Right) |
| 22 | Corner Filler (Right) |
| 22 | Corner Filler (Left) |
| 23 | Screw No.8x5/8 |
| 24 | Spring, Door (2) |
| 25 | Hinge, Oven Door (Right) |
| 25 | Hinge, Oven Door (Left) |
| 26 | Base, W/ Levelers (2) |
| 27 | Screw |
| 28 | Levelers, Leg (4) |
| 29 | Screw, No.10-32x17/32`` |
| 30 | WPY707869 Whirlpool Drain Jar |
| 31 | Jar Lid (2) |
| 32 | Nut-Expansion (6) |
| 33 | Hinge |
| 34 | Screw No.10-32x1/2 |
| 35 | Board, Circuit |
| 36 | Spacer |
| 37 | Fan |
| 38 | Screw No.6-32x7/8 |
| 42 | Bracket |
| 43 | Catch |
| 44 | Strike |
| 45 | Lining, Lower Door |
| 46 | Panel, Lower Door |
| 47 | Handle |
| 49 | Frame, Drawer |
| 50 | Bake Element (208 Volt (Opt)) |
| 50 | Element, Bake (240 Volt) |
| 51 | Washer |
| 52 | Tube, Vent |
| 53 | Retainer, Lens |
| 54 | Lens, Oven Light |
| 55 | Gasket, Lens |
| 56 | W10856866 Whirlpool Light Socket |
| 57 | RANGE ONLY 40W 120V APPL BULB |
| 58 | Oven Cavity |
| 60 | Frame, Front |
| 61 | Insulation, Top & Sides |
| 62 | Insulation, Back And Bottom |
| 64 | Cover |
| 65 | Sensor |
| 66 | Screw |
| 67 | Rack, Oven |
| 69 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 70 | Support, Broil Element |
| 71 | WP4334925 Whirlpool Broil Element |
| 72 | WPL 4337215 |
