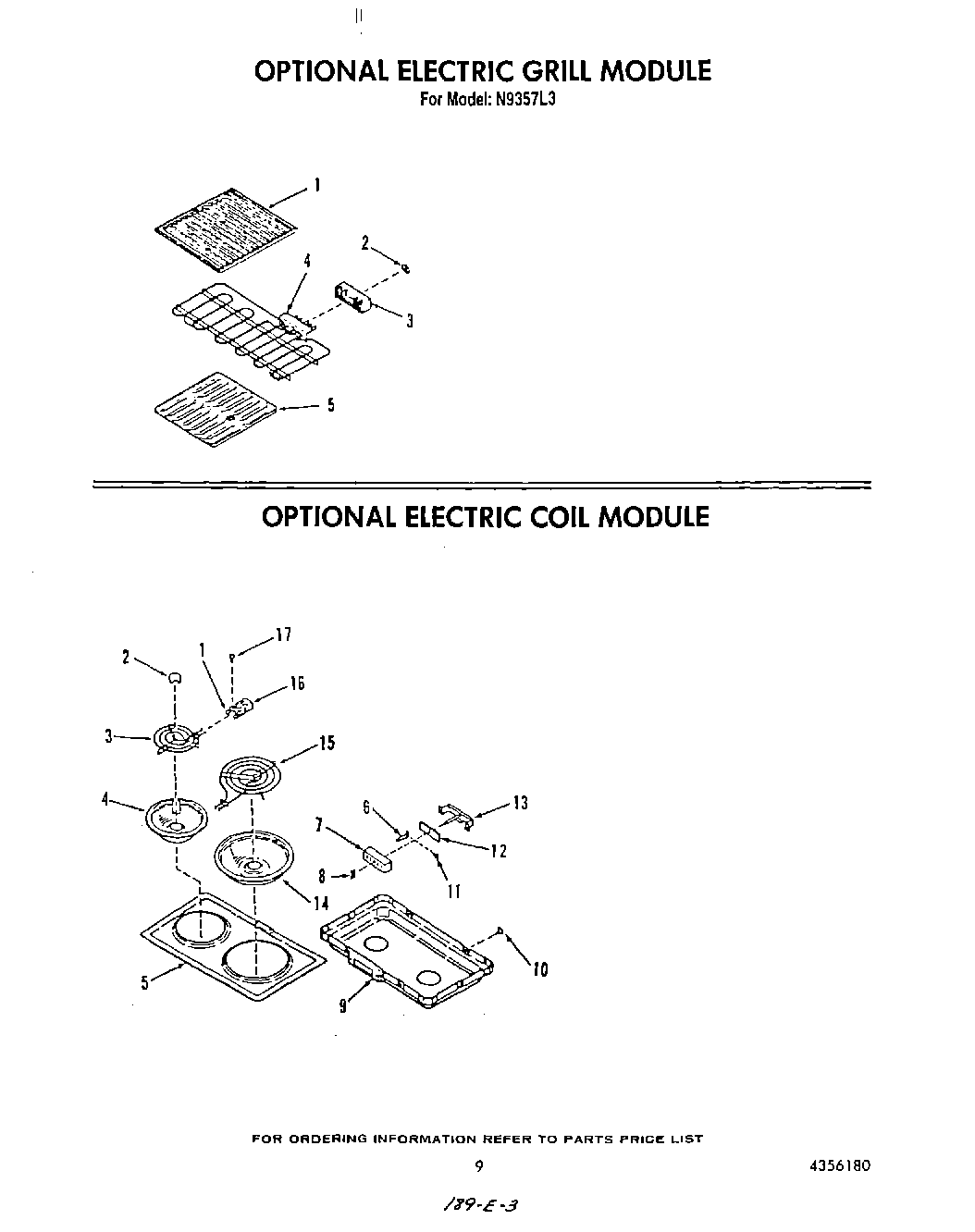

N9357^3 07 – ELECTRIC GRILL , ELECTRIC COIL

Products

Position	Product
1	Grate-Grill
1	WP4332752 Whirlpool Clip
2	Medallion (2)
2	Clip – Push on
3	Block, Terminal
3	WPY04100165 Whirlpool Surface Element
4	Element, Grill (208 Volt (Opt.))
4	WPW10196406 Whirlpool 6" Chrome Drip Bowl
4	Element, Grill (240 Volt)
5	Reflector Grid
5	Cooktop (Chrome)
5	Cooktop (Almond)
6	Pin, Terminal (4)
7	Block, Terminal
8	Nut, Speed
9	Pan, Module
10	Screw, No.8-32 x 3/8
11	Screw
12	Insulator
13	Bracket – Term.
14	DRIP BOWL 8" W/HOLE CHROME
15	WP3177565 Whirlpool Surface Element
16	BURNER RECEPTACLE KIT
17	Screw, No.7-32 x 5/16
