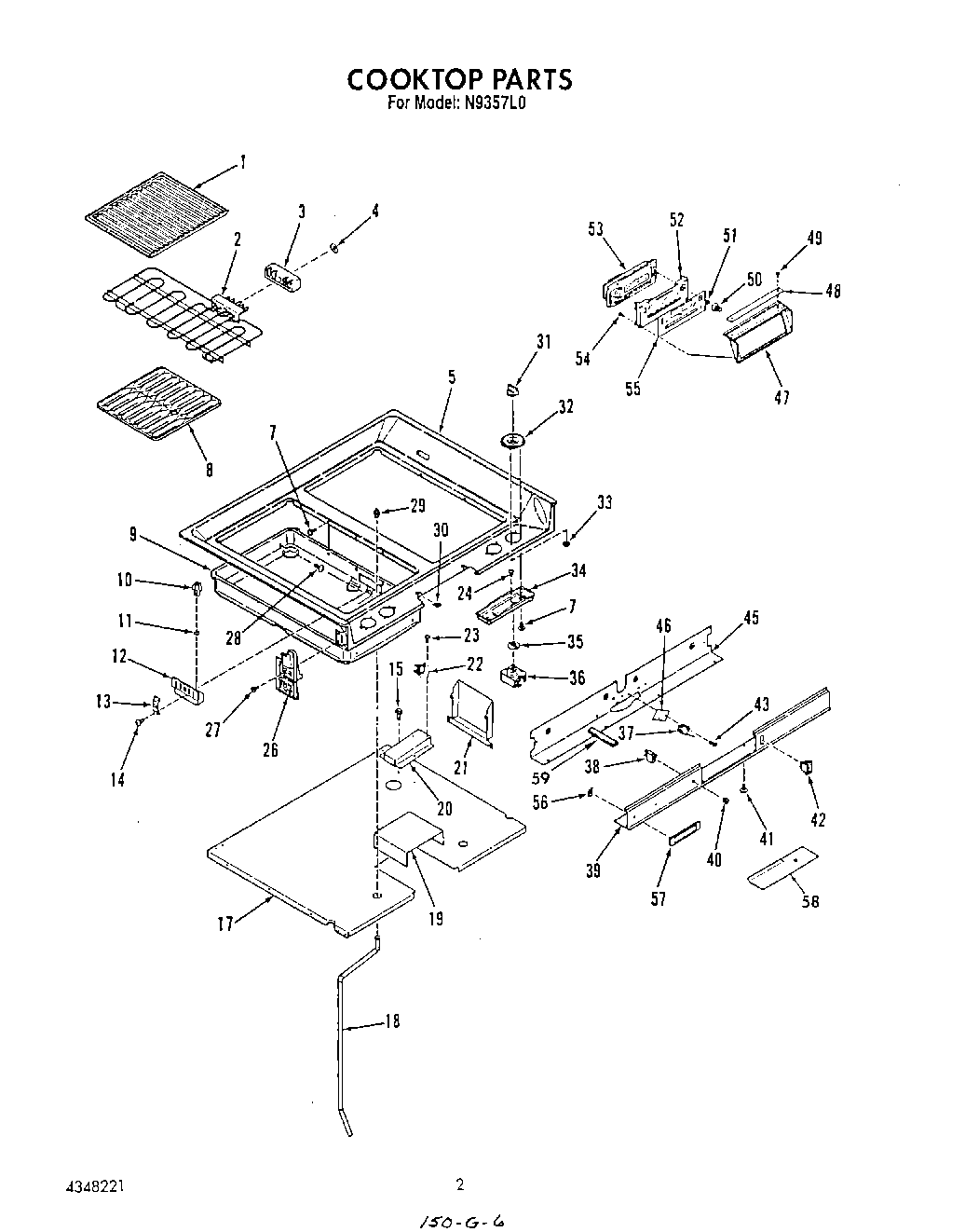

N9357L0 02 – COOK TOP

Products

Position	Product
1	Grate-Grill
2	Element, Grill (208 Volt (Opt.))
2	Element, Grill (240 Volt)
3	Block, Terminal
4	Nut, Speed
5	Cooktop (Almond)
5	Cooktop (Chrome)
8	Reflector Grid
9	Grease Well (Left)
9	Grease Well (Right)
10	Terminal
11	Screw
12	Block, Terminal
13	Clamp, Terminal Block
14	Screw, No.8-32 x 3/8
15	SCREW
17	Retainer, Insul.
18	Tube, Grease
19	Cover, Latch
20	Flue Duct
21	Extension, Vent
22	Limit Switch
23	Screw
24	Screw No.8-32×1/4“ (6 Req)
26	End Cap (Left)
26	End Cap (Right)
27	Screw, No.10 x 5/8
28	Screw No.6-20×3/8
29	Fitting, Tube
30	WPL 4337543
31	Knob, Infinite
32	Bezel, Knob (Right Front)
32	Bezel, Knob (Left Front)
32	Bezel, Knob (Right Rear)
32	Bezel, Knob (Left Rear)
33	Nut, Speed
34	Plate, Mounting
35	Seal, Control
36	W10900107 Whirlpool Oven Surface Element Switch
37	Switch, Micro
38	Light, Indicator
39	Panel, Control
40	Lens, Ind. Light
41	WP308685 Whirlpool Microwave Screw
42	Switch, Light
43	Screw No.4-40×11/16
45	Back, Control
46	Insulator
47	Bezel, Clock/Oven Control
48	Plate, Clock/Oven Control
49	Screw No.6-32×3/8
50	Knob, Clock/Oven Control
51	Hex Nut
52	Lens, Clock/Oven C
53	Clock/Oven Control
54	WPL 4337582
55	WPL 4337075
56	WPL 4323217
57	WPL 4335903
58	Insulator
59	WPL 4337340
