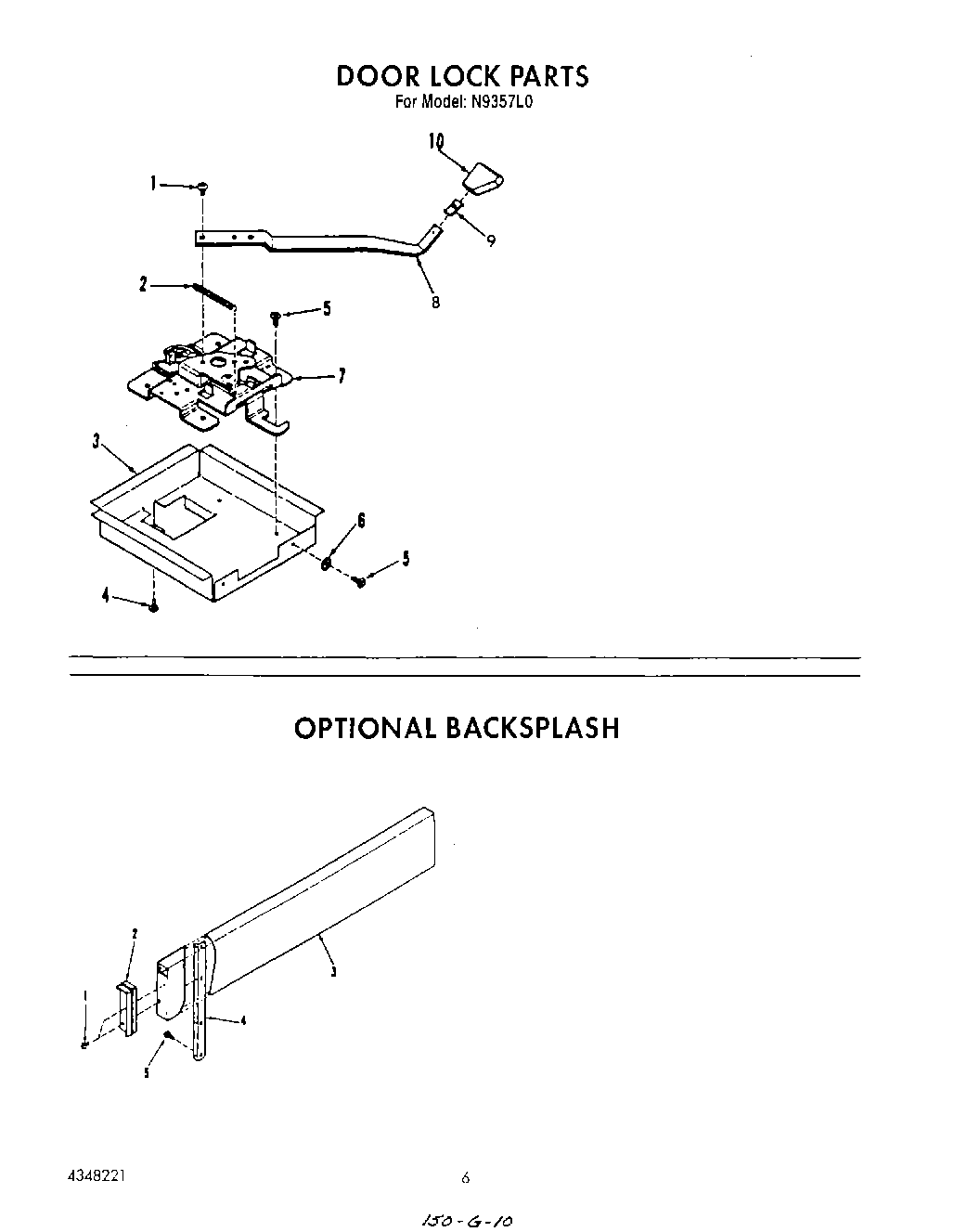

N9357L0 04 – DOOR LOCK , BACKSPLASH – Aparts

N9357L0 04 – DOOR LOCK , BACKSPLASH

Products

Position	Product
1	Screw No.6-20x3/8
1	Screw, No.10-24 x 1/4
2	Spring
2	Cap, End
3	Backsplash
3	Box, Mounting
4	Support, Backsplash
4	Screw 6-20x3/8
5	SCREW
6	Washer
7	Lock Assembly, (Inc`s Illus. No.2)
8	Handle, Lock
9	Clip
10	Knob, Lock
