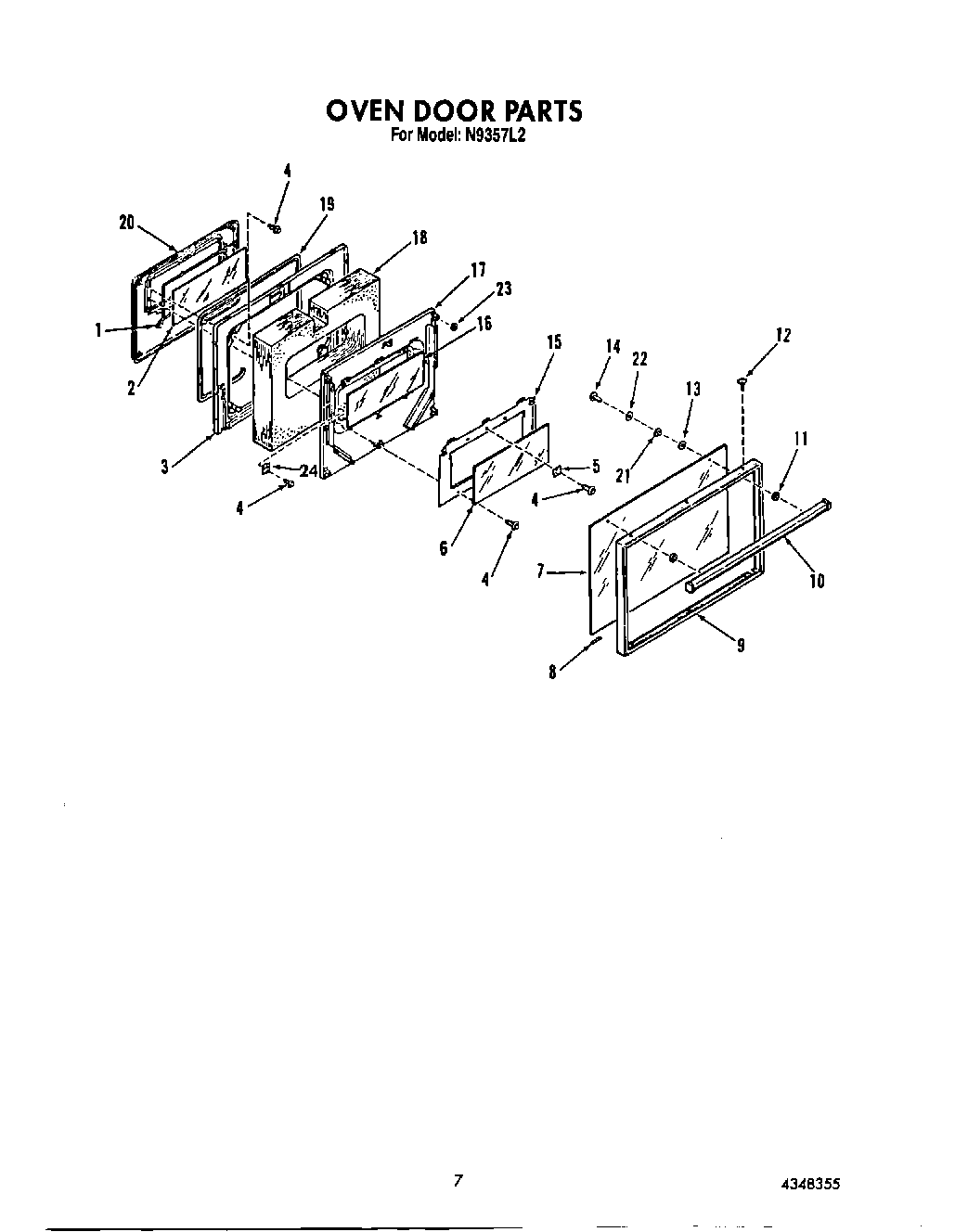

N9357L2 06 – OVEN DOOR

Products

Position	Product
	Repair Parts List
	Use & Care Manual
	Installation Guide
1	Seal, Inner Glass
2	Glass-Inner
3	Lining, Oven Door
4	SCREW
5	Retainer, Glass
6	Glass, Intermediate
7	Glass, Outer Oven Door
8	Cushion
9	Frame, Oven Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw No.10-32×1/2
13	Washer, Fiber
14	WP999367 Whirlpool Refrigerator Screw
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation,
19	Gasket, Door
20	Plug, Door Lining
22	Washer
23	Spacer – Glass
24	Flag Terminal
24	Wire Harness (Sensor)
24	Eyelet Terminal
24	Wire Harness (3/16“)
24	Retainer
24	Control
