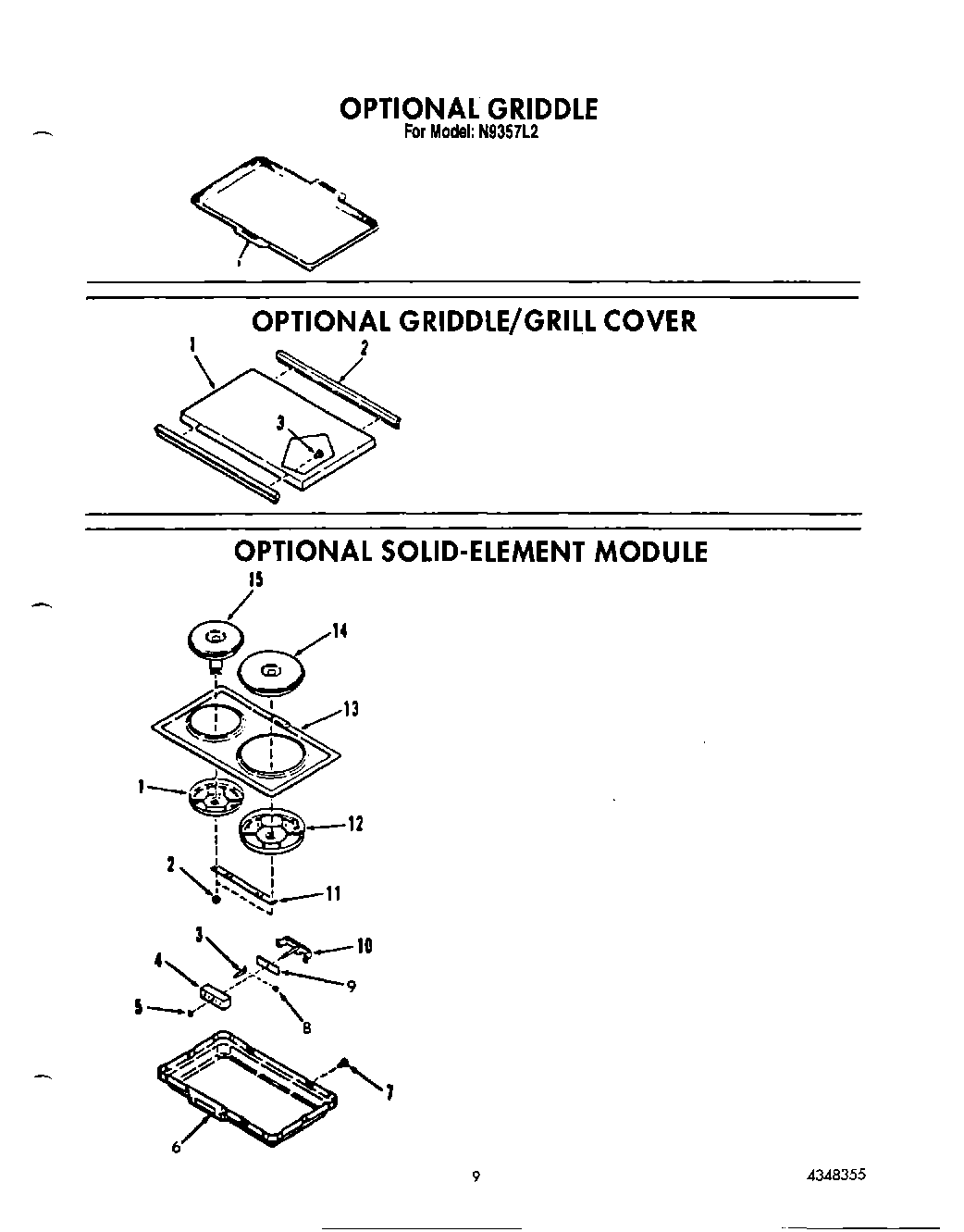

N9357L2 08 – OPTIONAL GRIDDLE , OPTIONAL GRIDDLE

N9357L2 08 – OPTIONAL GRIDDLE , OPTIONAL GRIDDLE

Written by

in

N9357L2 08 – OPTIONAL GRIDDLE , OPTIONAL GRIDDLE

Products

PositionProduct
1Cover
1Clamp
1Griddle
2Nut, Mount. (2)
2Handle, (Left/Right)
3Screw
3Pin, Terminal (4)
4Block, Terminal
5Nut, Speed
6Pan-Module
7Screw, No.8-32 x 3/8
8Screw
9Insulator
10Bracket – Term.
11Strap, Element
12Clamp, Elmnt.
13Cooktop (Chrome)
13Cooktop (Almond)
14WP3147132 Whirlpool Surface Element
15WP3147131 Whirlpool Surface Element
15xWire-Blue-12“
15xWire-Brown-7“
