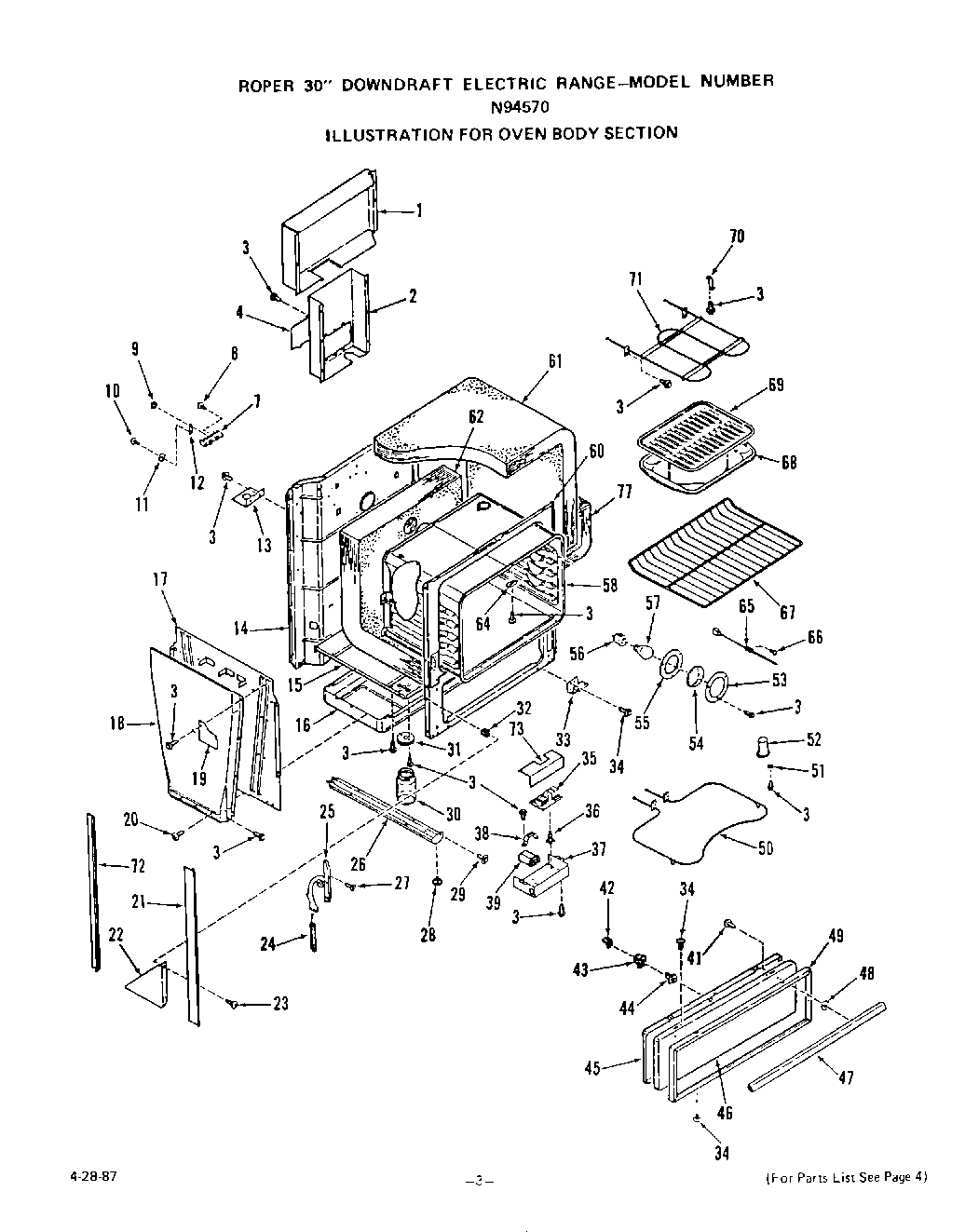

| 1 | Wire Cover-Rear Upper |
| 2 | Wire Cover-Rear Lower |
| 4 | Access Plate |
| 7 | Junction Block |
| 8 | Screw 10-32x1`` |
| 9 | G.M. Hex Nut 10-32 |
| 10 | Screw 10-32x7/16`` |
| 11 | Washer |
| 12 | Ground Strap |
| 13 | Range Service Mounting Plate |
| 14 | Main Back |
| 15 | Insulation Retainer-Bottom |
| 16 | Plenum |
| 17 | Insulation Retainer-Sides |
| 18 | Vent Box |
| 19 | Wire Cover-End |
| 20 | Screw 10ABx1/2`` |
| 21 | Side Trim |
| 21 | Left |
| 21 | Right |
| 22 | Left |
| 22 | Corner Filler |
| 22 | Right |
| 23 | Screw 8ABx5/8`` |
| 24 | Spring-Oven Door (2 Req) |
| 25 | Hinge-Door |
| 25 | Right |
| 25 | Left |
| 26 | Base w/Levelers-Lt. or Rt. |
| 27 | Screw |
| 28 | Leg Leveler (4 Req) |
| 29 | Screw 10 - 32x3/8`` |
| 30 | WPL 329034 |
| 31 | WPL 329010 |
| 32 | BURNER RECEPTACLE KIT |
| 33 | Hinge |
| 34 | Screw 10-16x7/16`` |
| 35 | Circuit Board w/Relay & Transformers |
| 36 | Spacer PCB |
| 37 | Relay Wire Cover |
| 38 | Capacitor Clamp |
| 39 | Capacitor |
| 41 | Screw 10 - 32 x 1/2`` |
| 42 | Bracket-Catch |
| 43 | Catch-Door |
| 44 | Catch-Strike |
| 45 | Lining-Storage Door |
| 46 | Front Panel-Storage Door |
| 47 | Handle |
| 48 | Spacer |
| 49 | Frame-Front Panel |
| 50 | Bake Element |
| 50 | Bake Element (208 Volt (Optional)) |
| 50 | WPL 325883 |
| 51 | WPL 323451 |
| 52 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 53 | Retainer-Oven Light Lens |
| 54 | Lens-Oven Light |
| 55 | Gasket-Lens |
| 56 | Holder-Oven Light Bulb |
| 57 | Oven Lamp Bulb |
| 58 | Oven Body |
| 59 | WPL 291123 |
| 60 | Front Frame |
| 61 | Insulation-Top & Sides |
| 62 | Insulation-Oven Back & Bottom |
| 64 | Cover |
| 65 | Sensor |
| 66 | Screw 6-20x3/8`` |
| 67 | Oven Rack (2 Req) |
| 68 | WPL 331592 |
| 69 | WPL 326297 |
| 70 | Support-Broiler Element |
| 71 | WPL 326938 |
| 71 | WPL 326939 |
| 71 | WPL ARI119489A |
| 72 | WPL 334429 |
| 73 | Plug, Terminal (2-Way) (Connects With Main Dryer Harness) |
| 77 | Insulation (Rt. or Lt.) |
