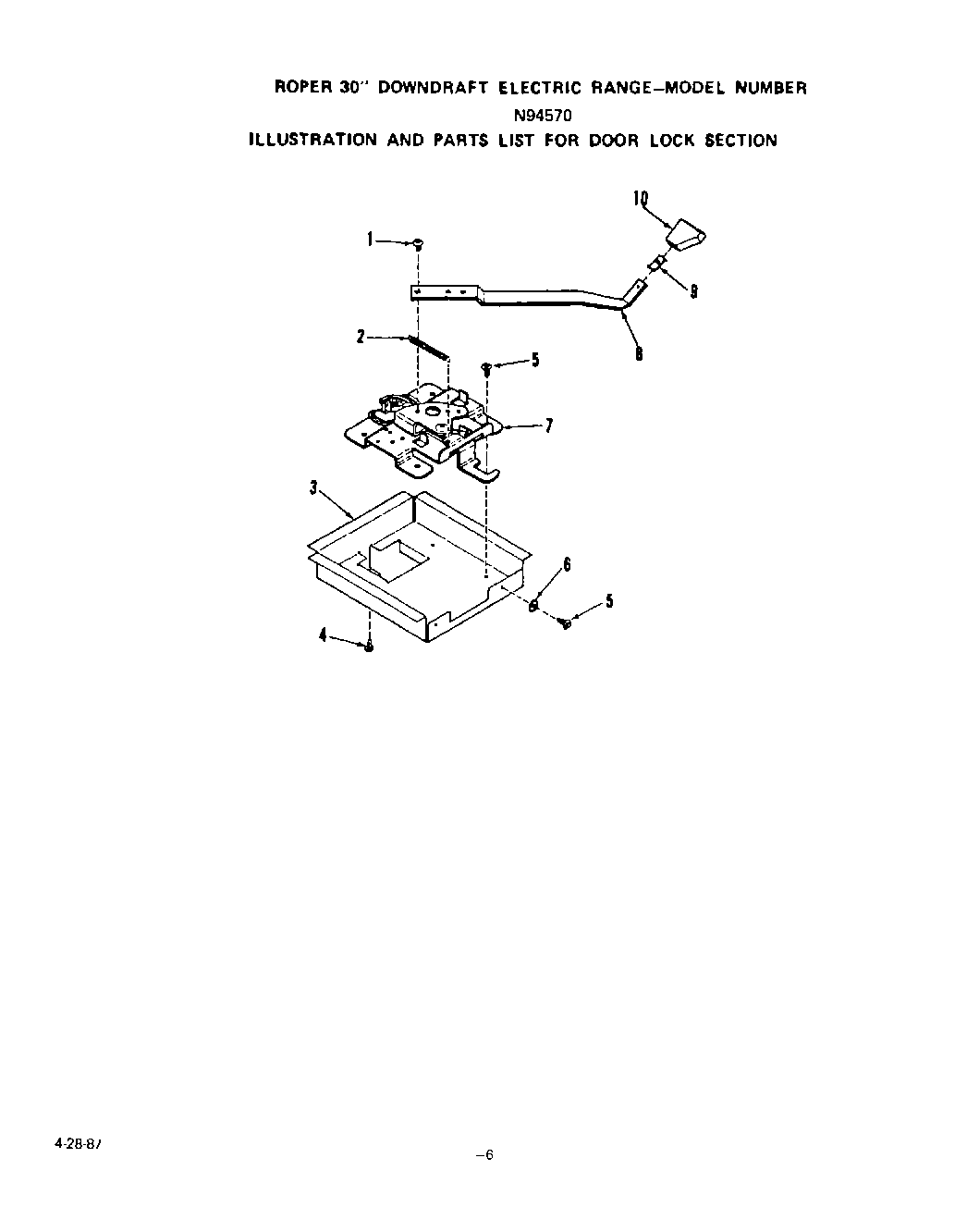

N9457^0 05 – DOOR LOCK
Products
| Position | Product |
|---|---|
| 1 | Screw 10-24x1/4`` |
| 2 | Spring |
| 3 | Latch Mounting Box |
| 4 | Screw 6-20x3/8`` |
| 5 | Screw 10-16x7/16`` |
| 6 | WPL 21067 |
| 7 | Oven Door Lock Assm. |
| 8 | Lock Handle |
| 9 | Clip-Knob |
| 10 | Knob-Lock |
