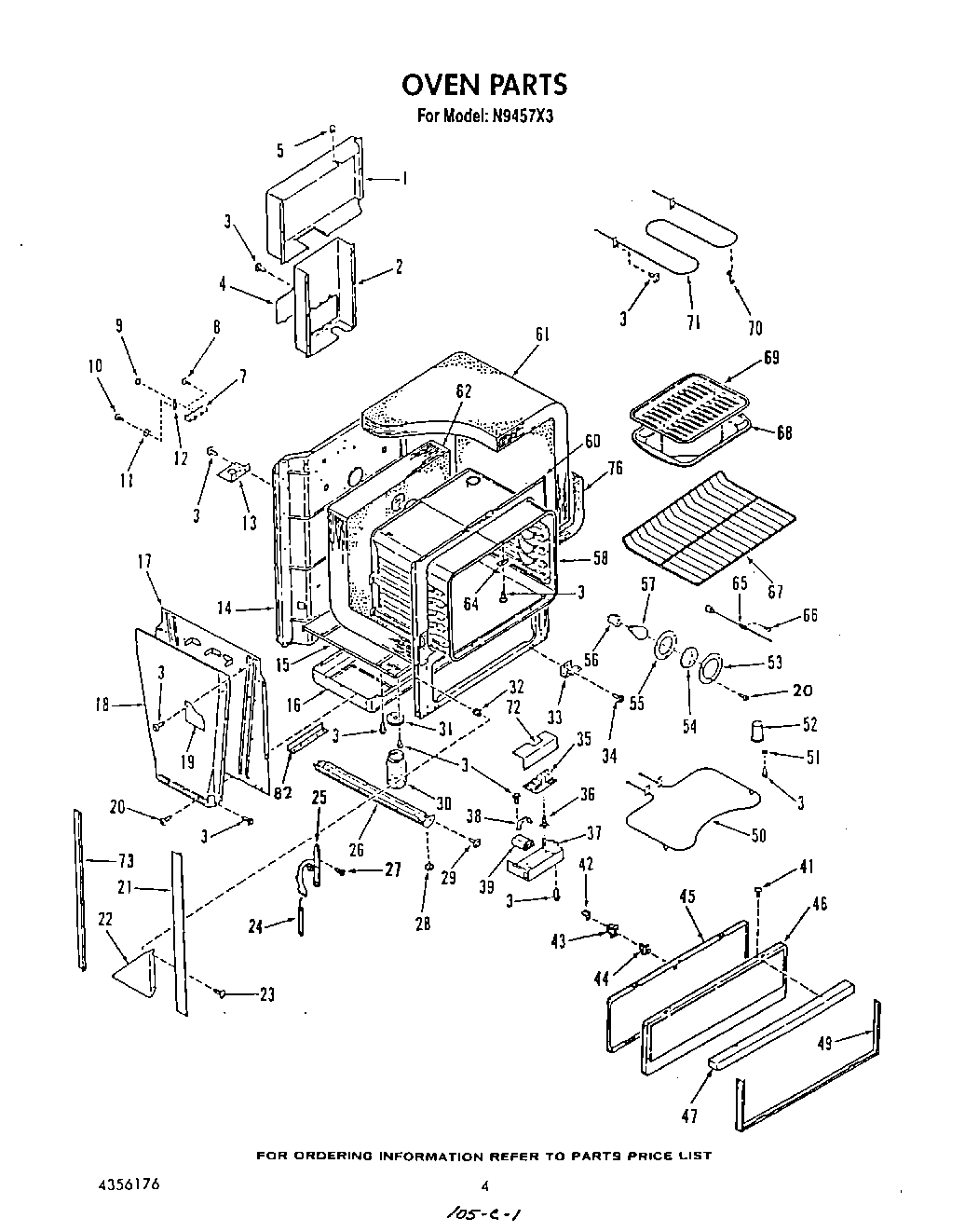

N9457^3 03 – OVEN

N9457^3 03 – OVEN

Products

PositionProduct
1Wire Cover, Rear - Upper
2Wire Cover, Lower Rear
3W10850756 Whirlpool Screw
4Plate, Access
5Button, Plug
7WP8203546 Whirlpool Terminal Block
8Screw, No.10-32x1
9WP776338 Whirlpool Compactor Nut
10Screw No.10-32x7/16
11Washer
12Strap, Ground
13Service Plate
14Back, Main
15Retainer, Bottom Insulation
16Plenum
17Retainer, Side Insulation
18Box, Vent
19Wire Cover, End
20WP308685 Whirlpool Microwave Screw
21Side Trim (Left)
21Side Trim (Right)
22Corner Filler (Left)
22Corner Filler (Right)
23Screw No.8x5/8
24Spring, Door (2)
25Hinge-Oven Door (Right)
25Hinge-Oven Door (Left)
26Base W/Levelers, Lt/Rt
27Screw
28Leg Leveler (4)
29Screw, No.10-32x17/32``
30WPY707869 Whirlpool Drain Jar
31Jar Lid (2)
32Nut-Expansion (6)
33Hinge
35Circuit Board W/Relay & Transf.
36Spacer
37Cover, Wire
38Clamp, Capacitor
39Capacitor
41Screw No.10-32x1/2
42Bracket
43Catch
44Strike
45Lining, Lower Door
46Panel, Front Storage Door
47Handle
49Frame, Storage Door Panel
50Element, Bake (240 Volt)
50Bake Element (208 Volt (Opt))
51Washer
52Tube, Vent
53Retainer, Lens
54Lens, Oven Light
55Gasket, Lens
56W10856866 Whirlpool Light Socket
57RANGE ONLY 40W 120V APPL BULB
58Oven Cavity
60Frame, Front
61Insulation, Top & Sides
62Insulation, Back And Bottom
64Cover
65Sensor
66Screw
67Rack, Oven
694396923 Whirlpool Broil Pan Set Gray Porcelain
70Support, Broil Element
71WP4334925 Whirlpool Broil Element
72WPL 4337413
73WPL 4337215
76Insulation
82Fuse, Thermal
82WP285432 Whirlpool Terminal
82WPL 4338498
82Wire Harness (Sensor)
82Eyelet Terminal
82Wire Harness (Flag Terminal Faston Terminal)
82Control
