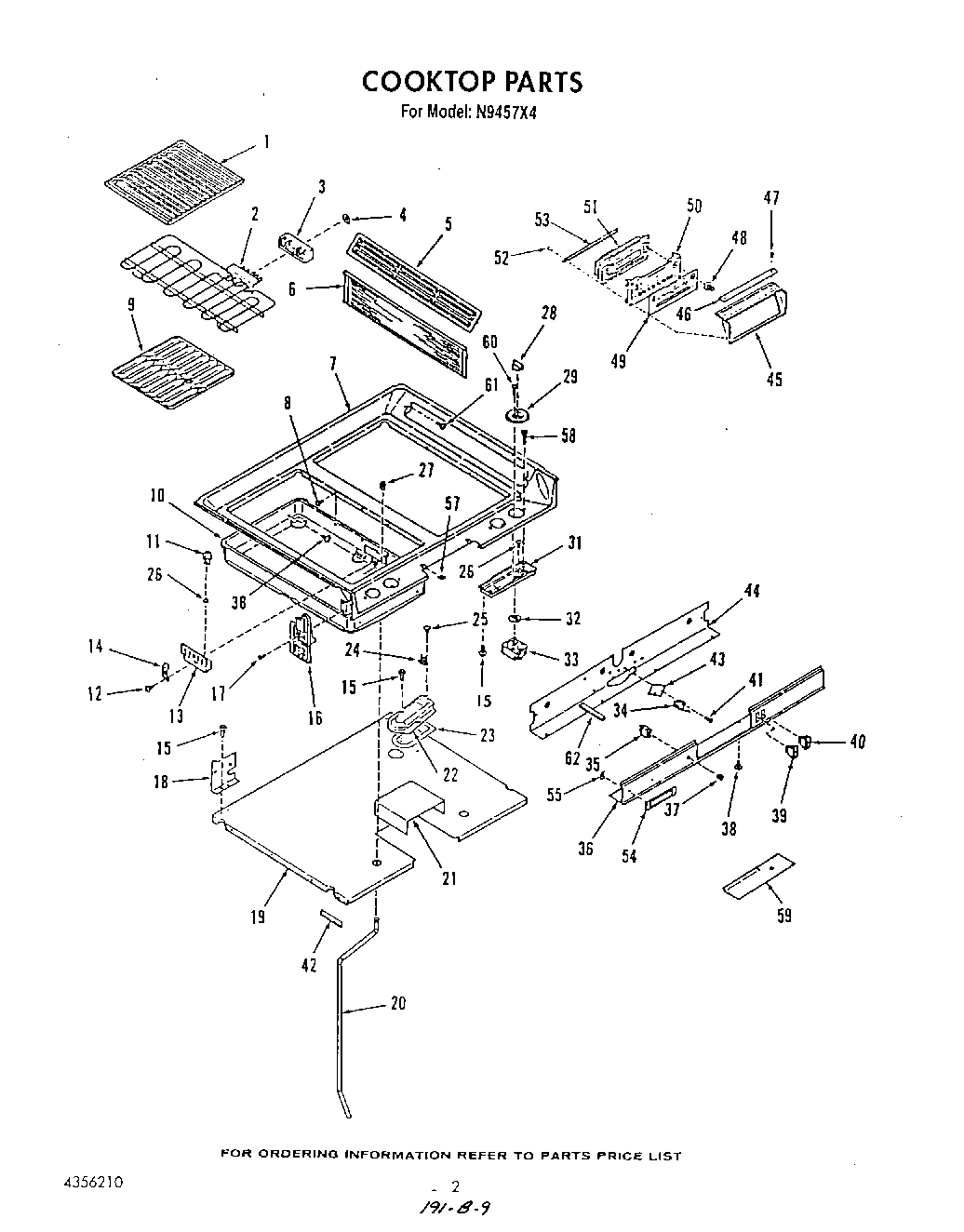

N9457^4 02 – COOK TOP

Products

Position	Product
1	Grill, Grate (2)
2	Element, Grill (240 Volt)
2	Element, Grill (208 Volt (Opt.))
3	Block, Terminal
4	Clip – Push on
5	Grill, Air Intake
6	Air Filter
7	Cooktop, Main (Almond)
7	Cooktop, Main (Chrome)
8	Screw No.6-20×3/8
9	Reflector Grid
10	Grease Well (Right)
10	Grease Well (Left)
11	Terminal
12	Screw, No.8-32 x 3/8
13	Block, Terminal
14	Clamp, Terminal Block
15	W10850756 Whirlpool Screw
16	End Cap (Right)
16	End Cap (Left)
17	Screw, No.10 x 5/8
18	Rear Filler (Left)
18	Rear Filler (Right)
19	Retainer, Insul.
20	Tube, Grease
21	Cover, Latch
22	Flue Duct
23	Gasket, Flue
24	Limit Switch, Blower
25	Screw
26	Screw No.8-32×1/4“ (6 Req)
27	Fitting, Tube
28	Knob, Infinite
29	Bezel, Knob (Left Front)
29	Bezel, Knob (Right Front)
29	Bezel, Knob (Left Rear)
29	Bezel, Knob (Right Rear)
31	Plate, Mounting
32	Seal, Control
33	W10900107 Whirlpool Oven Surface Element Switch
34	Switch, Micro
35	Light, Indicator
36	Panel, Control
37	Lens, Ind. Light
38	WP308685 Whirlpool Microwave Screw
39	Rocker Switch, Blower/Hi-Lo
40	Rocker Switch, Blower/Oven Light
41	Screw
42	WPL 4335097
43	Insulator
44	Back, Control
45	Bezel, Clock/Oven Control
46	Plate, Clock/Oven Control
47	Screw, No.6-20 x 7/16
48	Knob, Clock/Oven Control
49	WPL 4337075
50	Screw
51	WPL 4343011
52	WPL 4337582
53	Brace, Clock Stiffener
54	WPL 4335903
55	WPL 4323217
57	WPL 4337543
58	WPL 4342651
59	Insulator
60	Scre
61	Screw No.10-32×1/2
62	WPL 4337340
62	xUse & Care Manual
62	WPL 4356256
62	WPL 4356255
62	WPL 4356254
62	xInstallation Instructions
62	WPL 4356253
62	WPL 4356247
62	WPL 4348319
62	WPL 4356210
