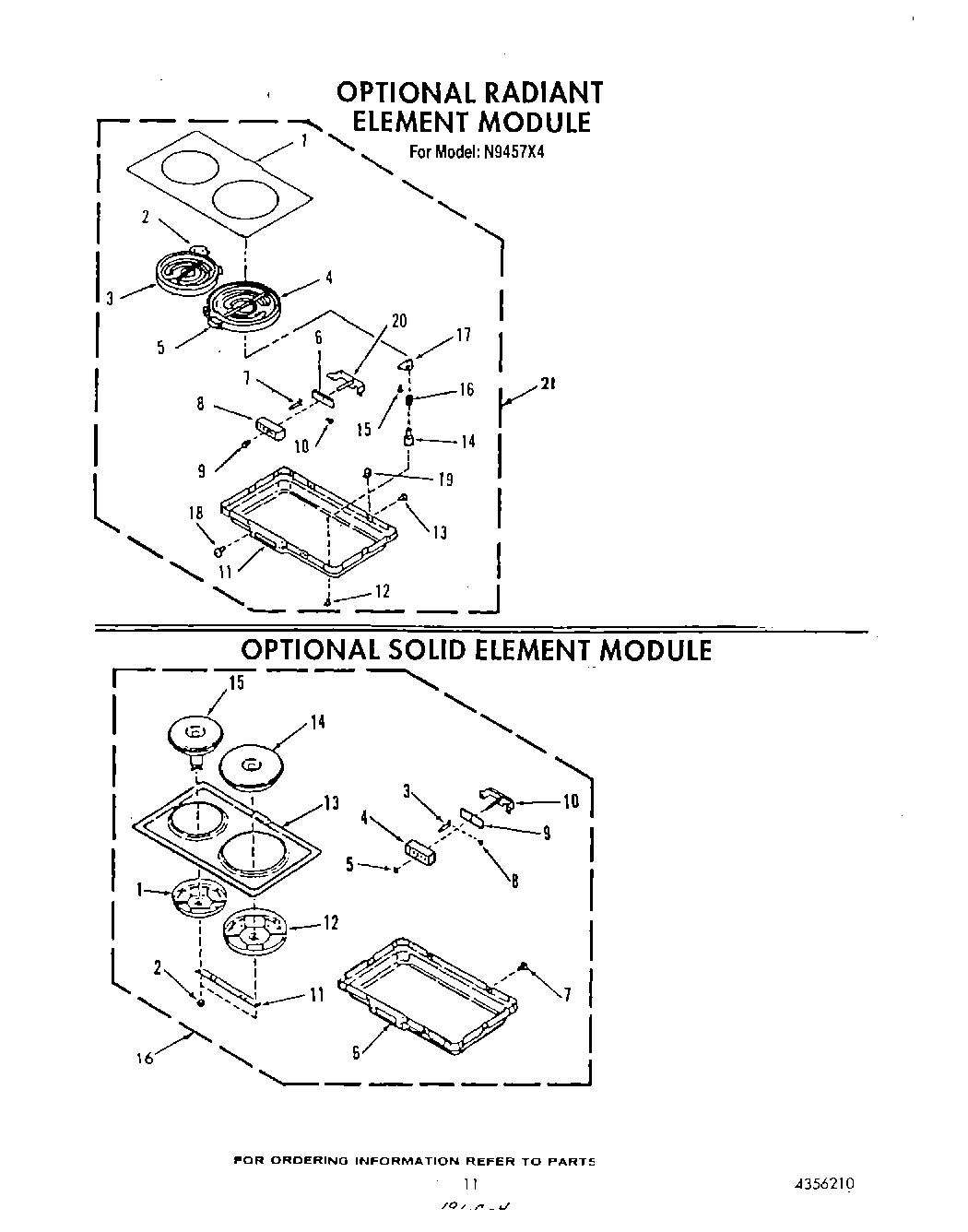

N9457^4 09 – SECTION

Products

Position	Product
1	Main Top, Glass
1	Clamp
2	Nut, Mount. (2)
2	Thermal Switch (Small)
2	Thermal Switch (Large)
3	Radiant Element, Small
4	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
5	Thermal Switch
6	Pan-Module
7	Pin, Terminal (4)
8	Block, Terminal
9	Insulator
9	Nut, Speed
10	Screw
11	Element Strap
11	Pan, Module
12	Screw, No.8-32 x 1/4
12	Clamp, Elmnt.
13	Cooktop (Chrome)
13	Cooktop (Almond)
13	Screw, No.8-32 x 3/8
14	WP3147132 Whirlpool Surface Element
14	Spacer-Heater
15	WP3147131 Whirlpool Surface Element
15	Screw
16	Complete Module (Chrome)
16	Spring, Heater
16	Complete Module (Almond)
17	Bracket, Heater
18	Screw No.8×5/8
19	Speed Nut
20	Bracket – Term.
21	Module, Complete
