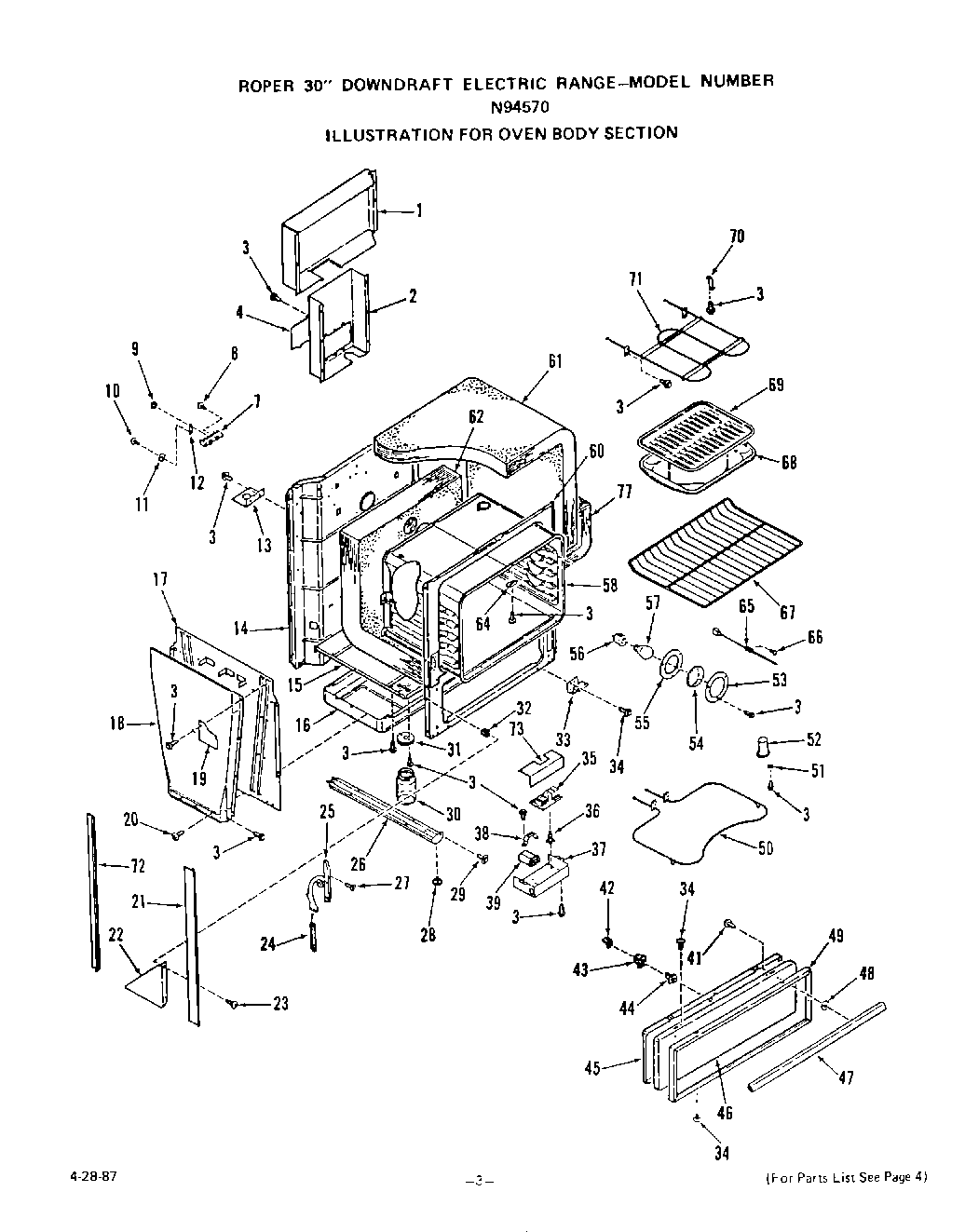

N9457X0 03 – OVEN BODY

Products

Position	Product
1	Wire Cover-Rear Upper
2	Wire Cover-Rear Lower
4	Access Plate
7	Junction Block
8	Screw 10-32×1“
9	G.M. Hex Nut 10-32
10	Screw 10-32×7/16“
11	Washer
12	Ground Strap
13	Range Service Mounting Plate
14	Main Back
15	Insulation Retainer-Bottom
16	Plenum
17	Insulation Retainer-Sides
18	Vent Box
19	Wire Cover-End
20	Screw 10ABx1/2“
21	Side Trim
21	Left
21	Right
22	Left
22	Corner Filler
22	Right
23	Screw 8ABx5/8“
24	Spring-Oven Door (2 Req)
25	Left
25	Right
25	Hinge-Door
26	Base w/Levelers-Lt. or Rt.
27	Screw
28	Leg Leveler (4 Req)
29	Screw 10 – 32×3/8“
30	WPL 329034
31	WPL 329010
32	BURNER RECEPTACLE KIT
33	Hinge
34	Screw 10-16×7/16“
35	Circuit Board w/Relay & Transformers
36	Spacer PCB
37	Relay Wire Cover
38	Capacitor Clamp
39	Capacitor
41	Screw 10 – 32 x 1/2“
42	Bracket-Catch
43	Catch-Door
44	Catch-Strike
45	Lining-Storage Door
46	Front Panel-Storage Door
47	Handle
48	Spacer
49	Frame-Front Panel
50	Bake Element
50	Bake Element (208 Volt (Optional))
50	WPL 325883
51	WPL 323451
52	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
53	Retainer-Oven Light Lens
54	Lens-Oven Light
55	Gasket-Lens
56	Holder-Oven Light Bulb
57	Oven Lamp Bulb
58	Oven Body
59	WPL 291123
60	Front Frame
61	Insulation-Top & Sides
62	Insulation-Oven Back & Bottom
64	Cover
65	Sensor
66	Screw 6-20×3/8“
67	Oven Rack (2 Req)
68	WPL 331592
69	WPL 326297
70	Support-Broiler Element
71	WPL 326938
71	WPL 326939
71	WPL ARI119505A
72	WPL 334429
73	Plug, Terminal (2-Way) (Connects With Main Dryer Harness)
77	Insulation (Rt. or Lt.)
