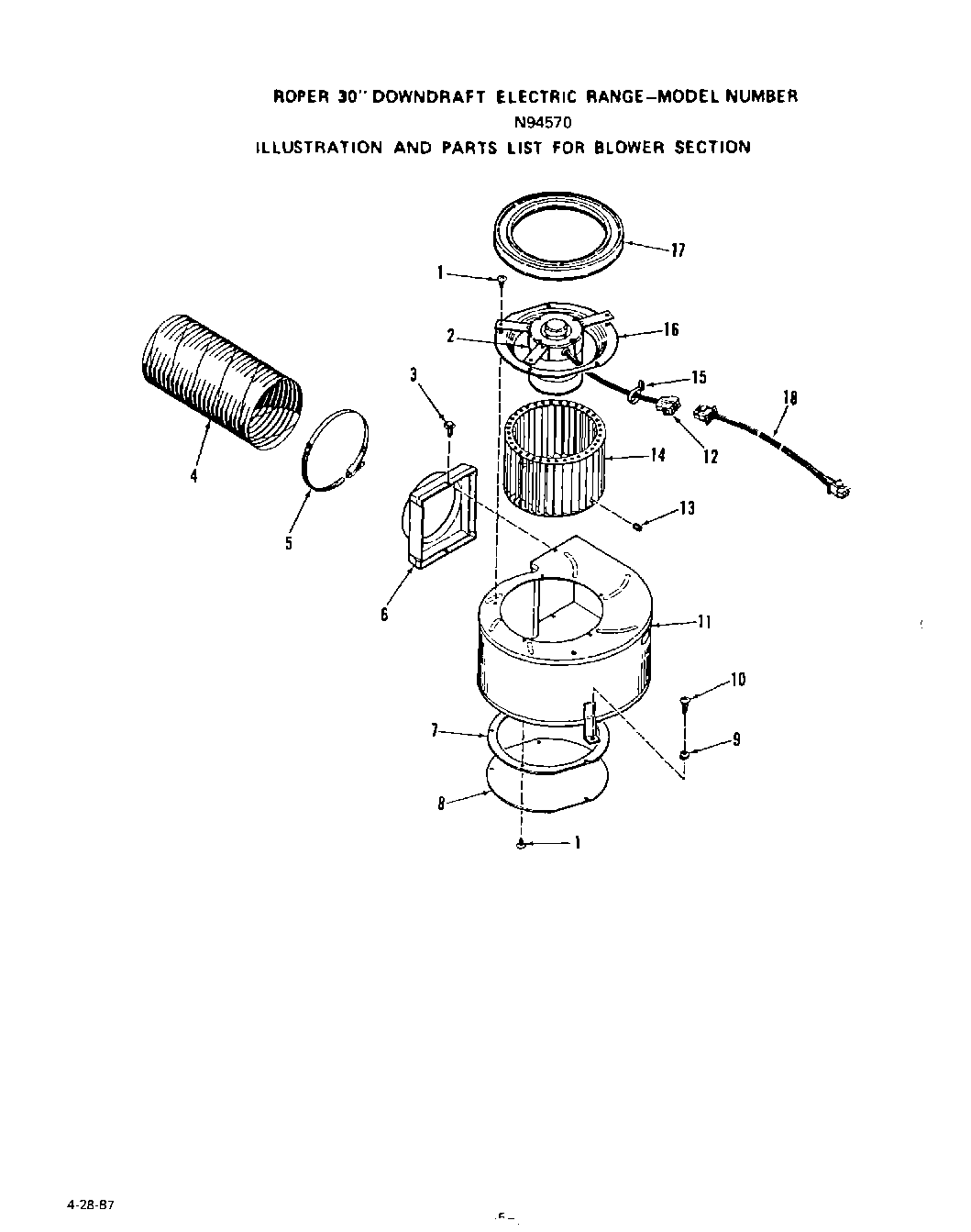

N9457X0 04 – BLOWER

N9457X0 04 – BLOWER

Written by

in

N9457X0 04 – BLOWER

Products

Position	Product
1	Screw 8ABx3/8“
2	Motor
3	WP112432 Whirlpool Nut Assembly
4	Flexible Hose
5	Clamp-Hose
6	Transition
7	Seal-Rear Cover
8	Rear Cover
9	Grommet
10	Screw 10ABx3/4“
11	Housing
12	Disconnect
13	Set Screw 24-5/16“x3/8“
14	Impellor
15	Wire Clamp
16	Inlet Ring
17	Gasket-Blower
18	Blower Wire Harness
