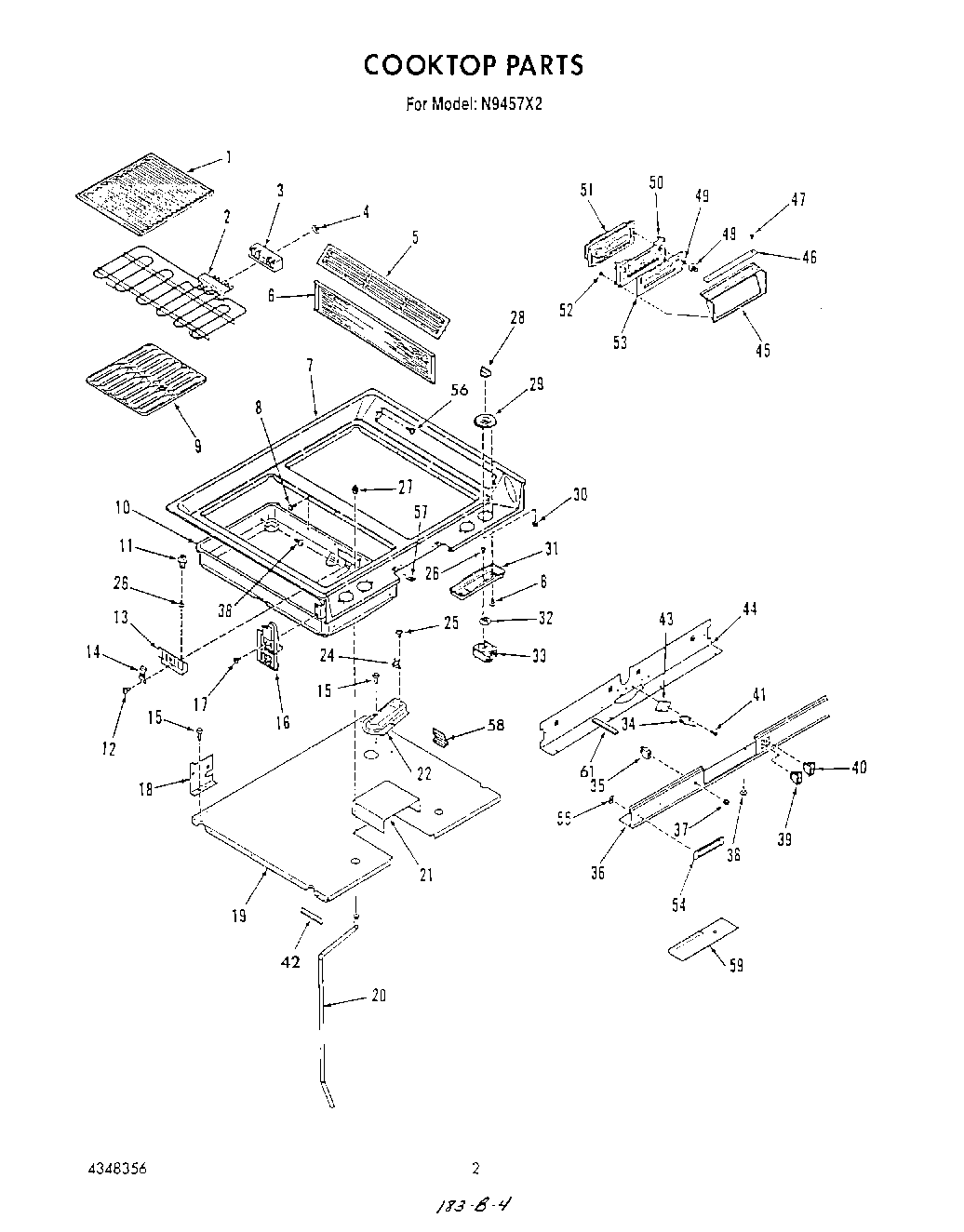

N9457X2 02 – COOK TOP

Products

Position	Product
1	Grate-Grill
2	Element, Grill (240 Volt)
2	Element, Grill (208 Volt (Opt.))
3	Block, Terminal
4	Clip – Push on
5	Grill, Air Intake
6	Air Filter
7	Cooktop, Main (Almond)
7	Cooktop, Main (Chrome)
8	Screw No.6-20×3/8
9	Reflector Grid
10	Grease Well (Right)
10	Grease Well (Left)
11	Terminal
12	Screw, No.8-32 x 3/8
13	Block, Terminal
14	Clamp, Terminal Block
15	SCREW
16	End Cap (Right)
16	End Cap (Left)
17	Screw, No.10 x 5/8
18	Rear Filler (Right)
18	Rear Filler (Left)
19	Retainer, Insul.
20	Tube, Grease
21	Cover, Latch
22	Flue Duct
24	Limit Switch, Blower
26	Screw No.8-32×1/4“ (6 Req)
27	Fitting, Tube
28	Knob, Infinite
29	Bezel, Knob (Right Front)
29	Bezel, Knob (Left Front)
29	Bezel, Knob (Right Rear)
29	Bezel, Knob (Left Rear)
30	Nut, Speed
31	Plate, Mounting
32	Seal, Control
33	W10900107 Whirlpool Oven Surface Element Switch
34	Switch, Micro
35	Light, Indicator
36	Panel, Control
37	Lens, Ind. Light
38	WP308685 Whirlpool Microwave Screw
39	Rocker Switch, Blower/Hi-Lo
40	Rocker Switch, Blower/Oven Light
41	Screw No.4-40×11/16
42	WPL 4335097
43	Insulator
44	Back, Control
45	Bezel, Clock/Oven Control
46	Plate, Clock/Oven Control
47	Screw 6-32×5/16
48	Knob, Clock/Oven Control
49	Hex Nut
50	Lens, Clock/Oven C
51	WPL 4343004
52	WPL 4337582
53	WPL 4337075
54	WPL 4335903
55	WPL 4323217
56	Screw No.10-32×1/2
57	WPL 4337543
58	WPL 4337312
59	Insulator
61	WPL 4337340
