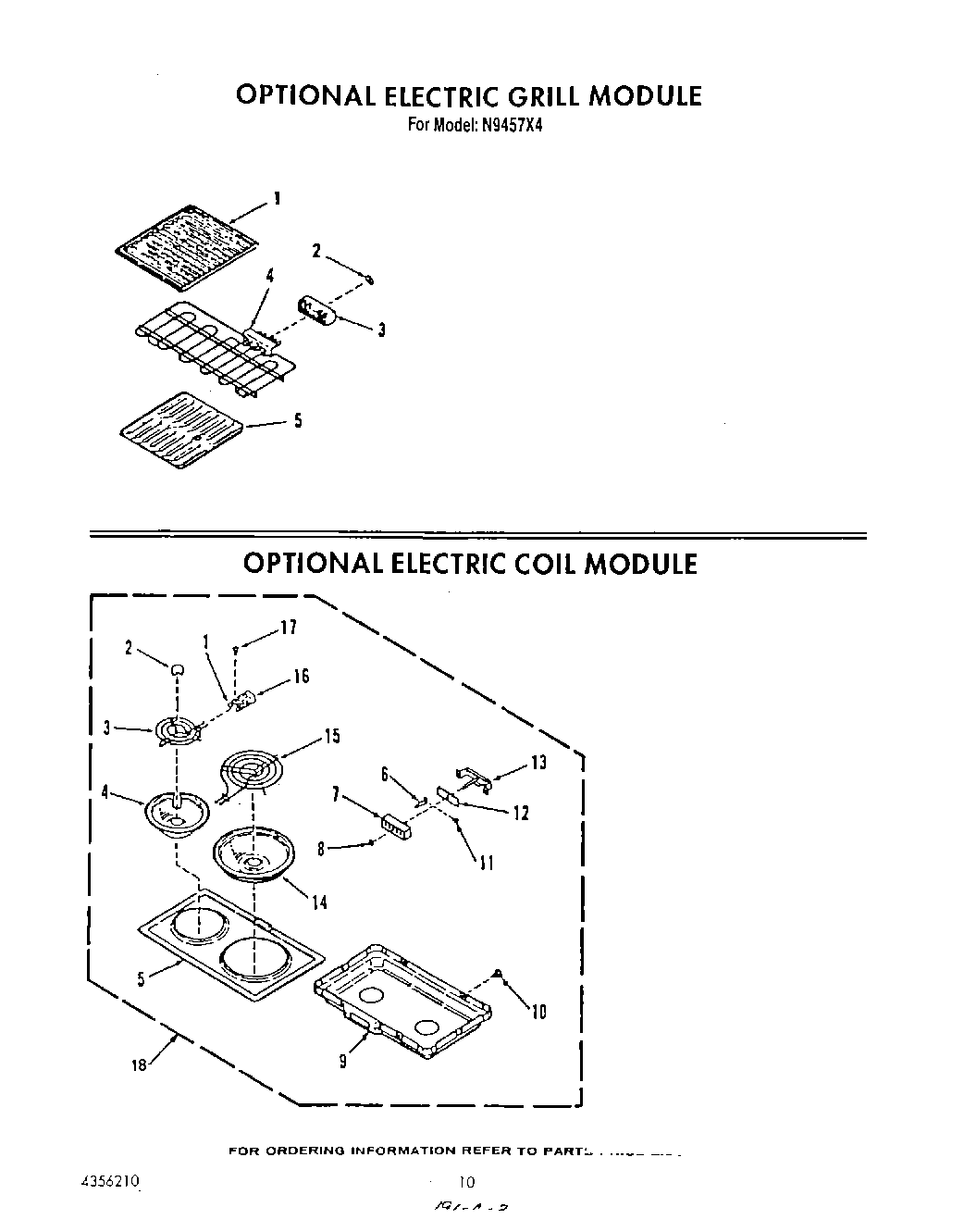

N9457X4 08 – SECTION

Products

Position	Product
1	Grate-Grill
1	WP4332752 Whirlpool Clip
2	Medallion (2)
2	Clip – Push on
3	WPY04100165 Whirlpool Surface Element
3	Block, Terminal
4	WPW10196406 Whirlpool 6" Chrome Drip Bowl
4	Element, Grill (208 Volt (Opt.))
4	Element, Grill (240 Volt)
5	Reflector Grid
5	Cooktop (Almond)
5	Cooktop (Chrome)
6	Pin, Terminal (4)
7	Block, Terminal
8	Nut, Speed
9	Pan, Module
10	Screw No.8×5/8
11	Screw
12	Insulator
13	Bracket – Term.
14	DRIP BOWL 8" W/HOLE CHROME
15	WP3177565 Whirlpool Surface Element
16	Terminal Block
17	Screw, No.7-32 x 5/16
18	Complete Module (Almond)
18	Complete Module (Chrome)
