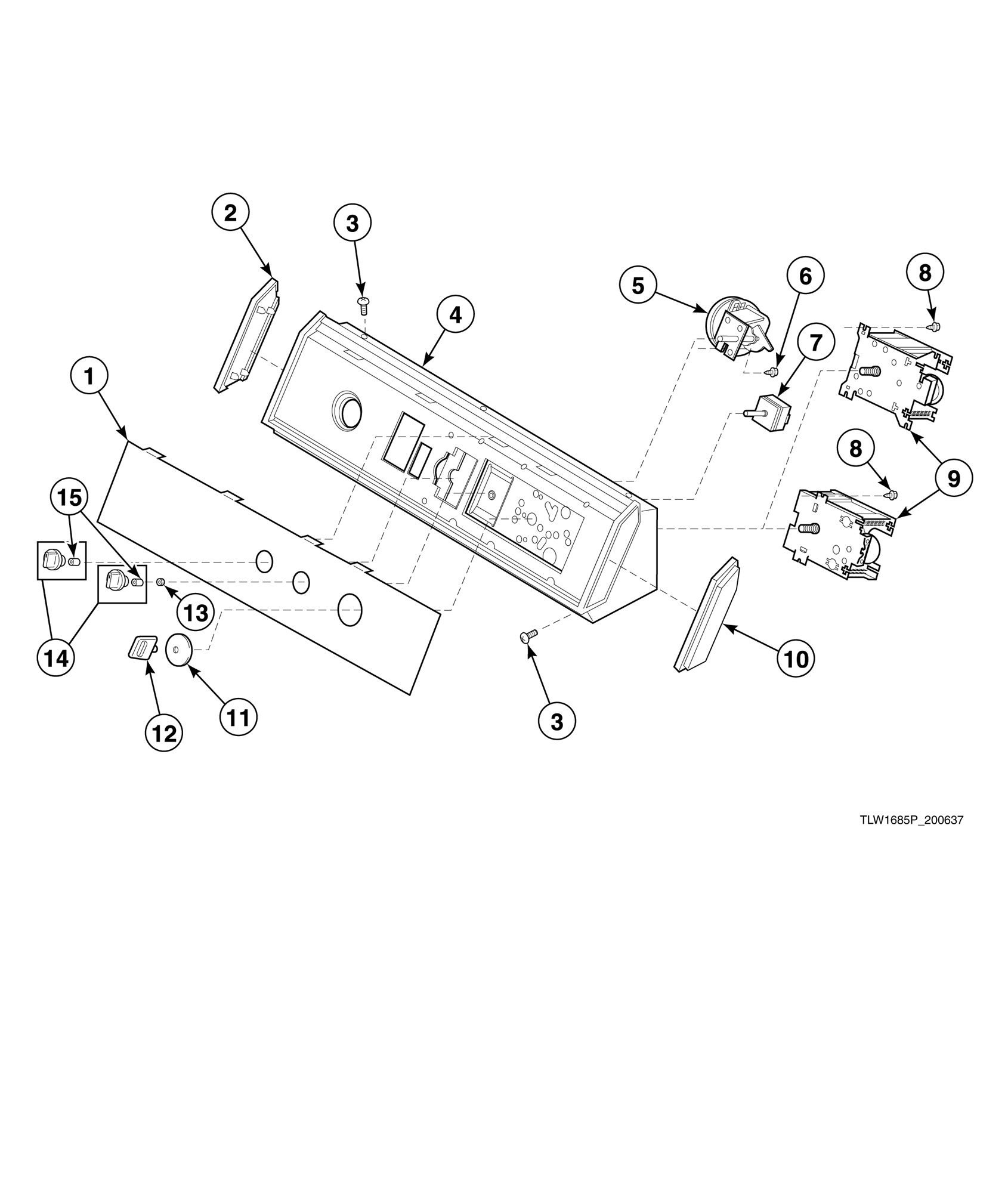

NA3510 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

NA3510 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

Written by

in

NA3510 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

Products

Position	Product
1	Graphic Panel
2	End Cap (Comment: Left)
3	Screw
4	Control Hood Assembly
5	Rotary Pressure Switch
6	Screw
7	Temperature Switch
8	Screw
9	Timer
10	End Cap
11	Timer Skirt Assembly
12	Timer Knob Assembly
13	Nut
14	Rotary Knob Assembly
15	Retainer
