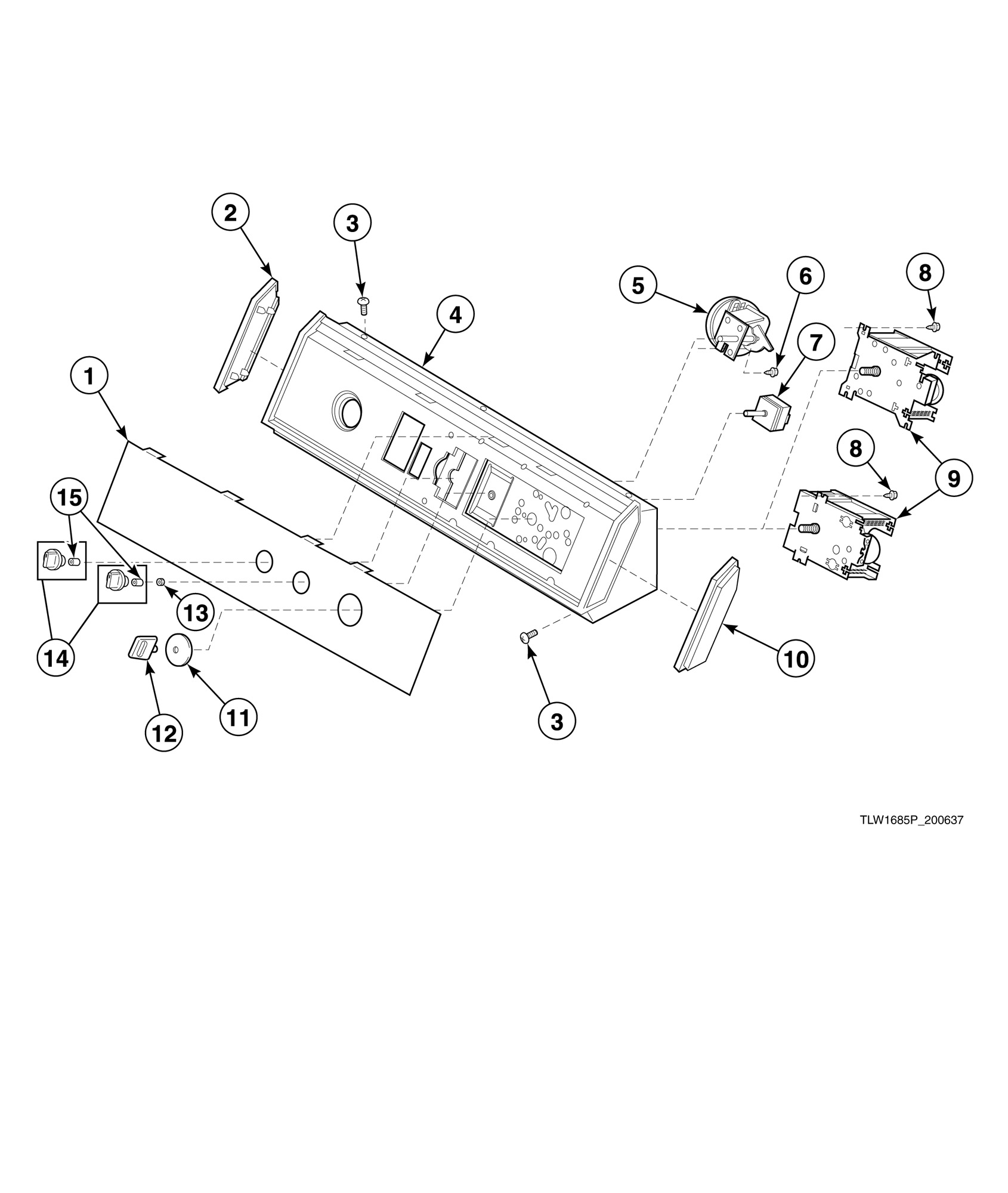

NA3511 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

NA3511 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

Written by

in

NA3511 Graphic Panel, Control Hood and Controls (Drawing 8 of 9)

Products

PositionProduct
1Graphic Panel
2End Cap (Comment: Left)
3Screw
4Control Hood Assembly
5Rotary Pressure Switch
6Screw
7Temperature Switch
8Screw
9Timer
10End Cap
11Timer Skirt Assembly
12Timer Knob Assembly
13Nut
14Rotary Knob Assembly
15Retainer
