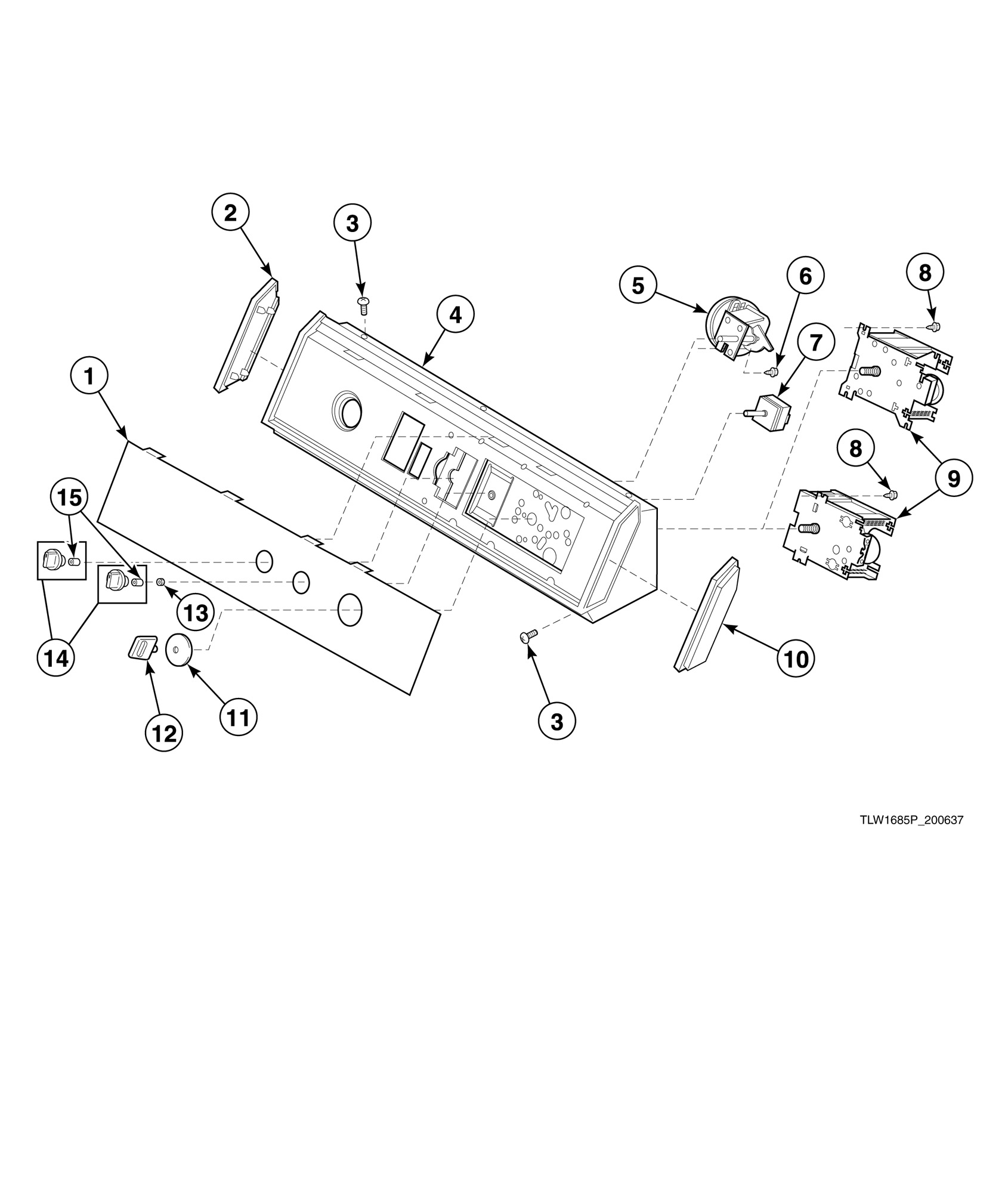

NA4320 Graphic Panel, Control Hood and Controls (Drawing 7 of 9)

Products

Position	Product
1	Graphic Panel (Comment: Models starting Serial No. 43R19504)
1	Graphic Panel (Comment: Models through Serial No. 43R19503)
2	End Cap (Comment: Left)
3	Screw
4	Control Hood Assembly
5	Rotary Pressure Switch
6	Screw
7	Temperature Switch
7	Water Temperature Switch
8	Screw
9	Timer
10	End Cap
11	Timer Skirt Assembly
12	Timer Knob Assembly
13	Nut
14	Knob Assembly
15	Retainer
