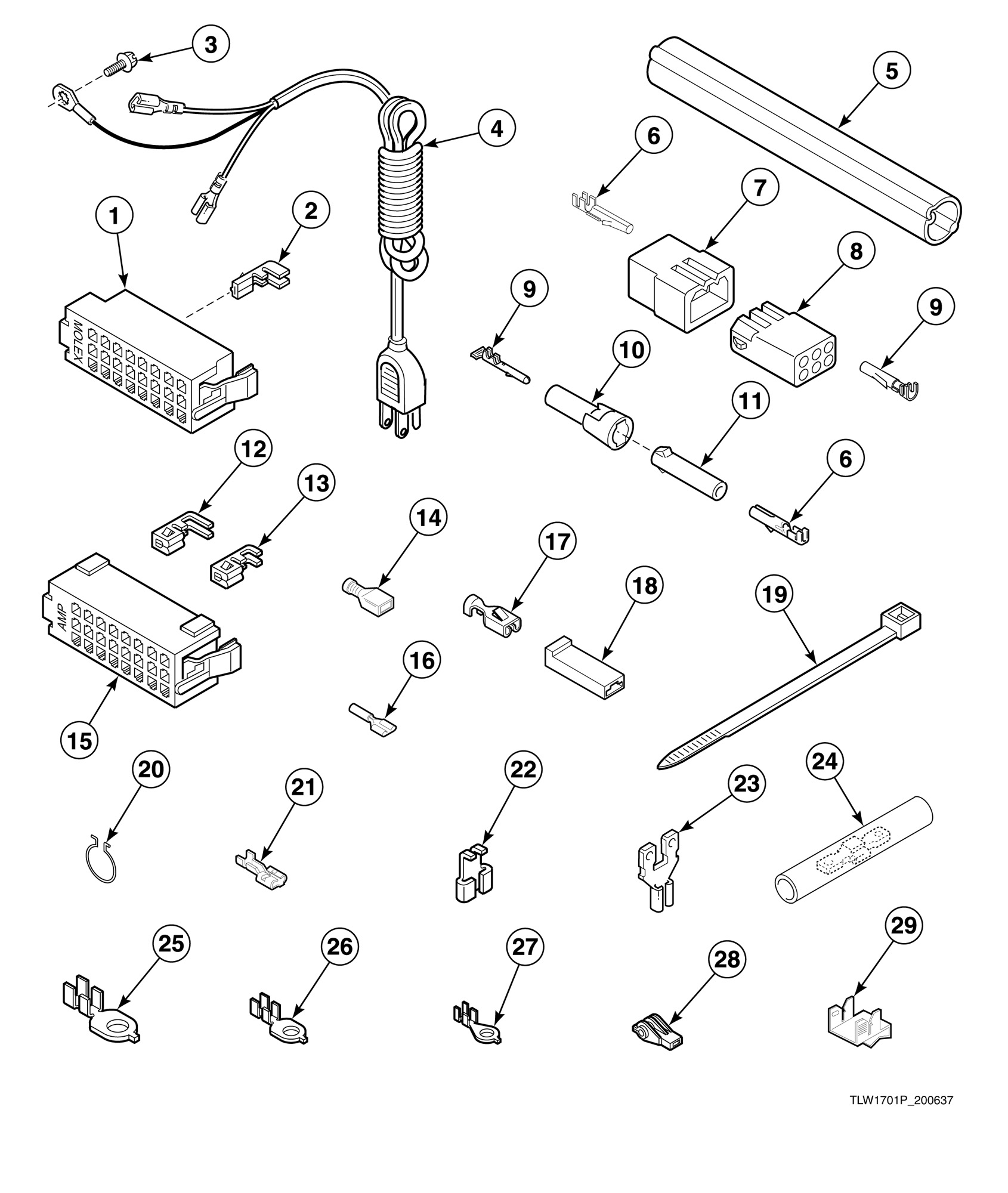

NA4520 Power Cord and Wire Terminals

Products

Position	Product
1	24 Position Housing (Comment: Left)
1	24 Position Housing (Comment: Right)
2	Female Terminal (Comment: Used for 1 or 2 wire application)
3	Screw (Comment: Green)
4	Lead-In Cord
5	Wire Harness Enclosure (Comment: Models starting Serial No. R1339650XG and continuing through R1566483YG)
6	Male Pin Terminal
7	6 Circuit Plug
8	6 Circuit Receptacle
10	1 Circuit Plug
11	Molex Receptacle
12	Female Terminal (Comment: 2 wire)
13	Female Terminal (Comment: 1 wire)
14	Ultra Pod Terminal (Comment: 1/4 inch)
14	Insulated Female Terminal (Comment: 3/16 inch)
15	24 Position Housing
16	Pre-Insulated Spade Terminal (Comment: 18 gauge)
16	GEN 00215
17	GEN 00115
18	GEN 90789
19	Harness Strap
20	Wire Clip
21	Female Spade Terminal (Comment: 1/4 inch, (2) 18 gauge wires)
21	Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
22	Female Flag Terminal
23	Terminal Adapter
24	Connector
25	Ring Terminal (Comment: 1/4 inch ring)
26	Ring Terminal (Comment: No. 10, (2) 18 gauge wire
27	Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
28	GEN 70210
29	Grounding Clip
