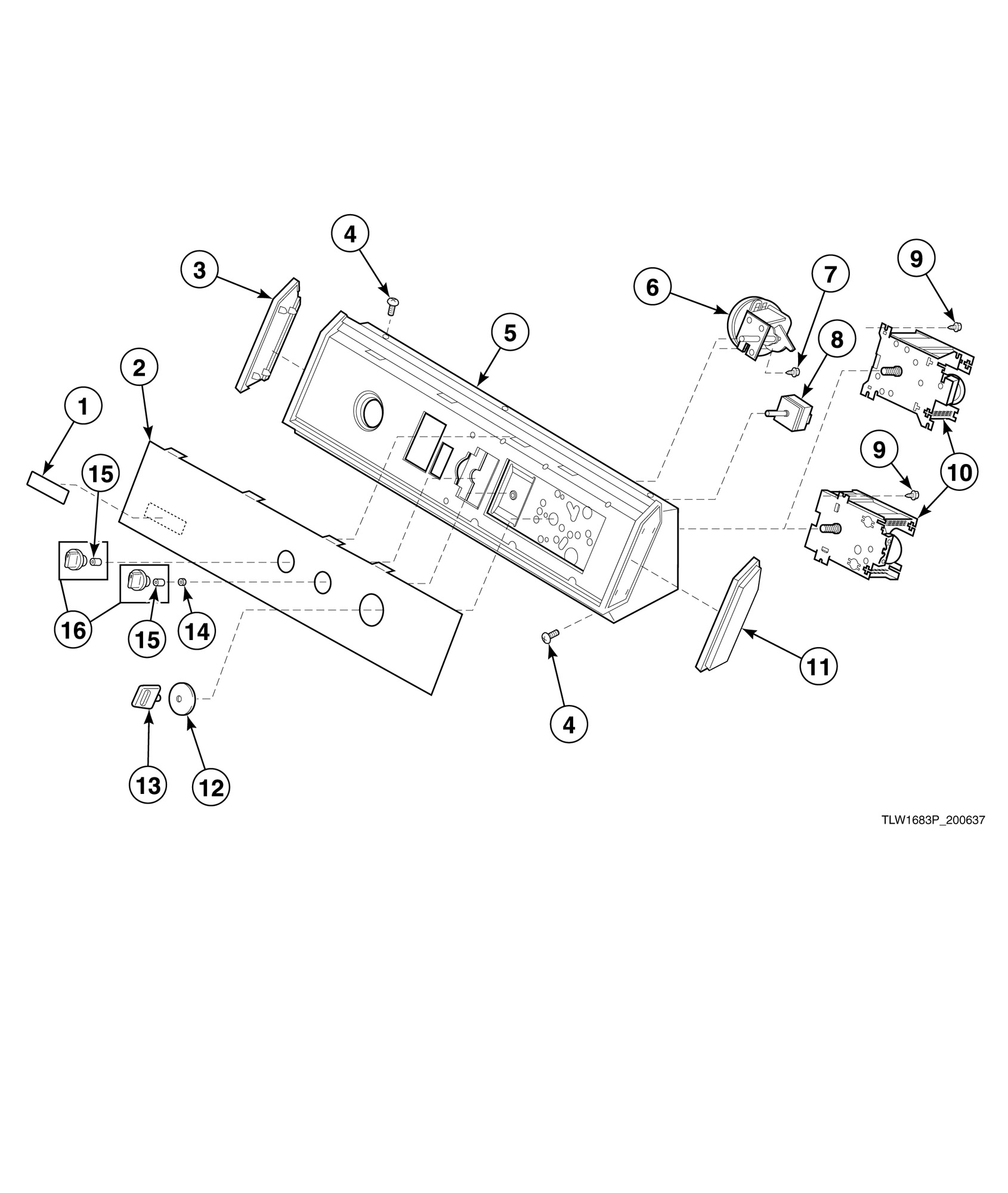

NA4621 Graphic Panel, Control Hood and Controls (Drawing 5 of 9)

Written by

Products

Position	Product
1	NOT ON YOUR MODEL
2	Graphic Panel
3	Control Hood Insert (Comment: Left)
4	Screw
5	Control Hood Assembly
6	Rotary Pressure Switch
7	Screw
8	Water Temperature Switch
9	Screw
10	Timer
11	Control Hood Insert (Comment: Right)
12	Timer Skirt Assembly
13	Timer Knob Assembly
14	Nut
15	Retainer
16	Rotary Knob Assembly
