NA5331 Cabinet Top, Loading Door and Control Hood Rear Panel

NA5331 Cabinet Top, Loading Door and Control Hood Rear Panel

Written by

in

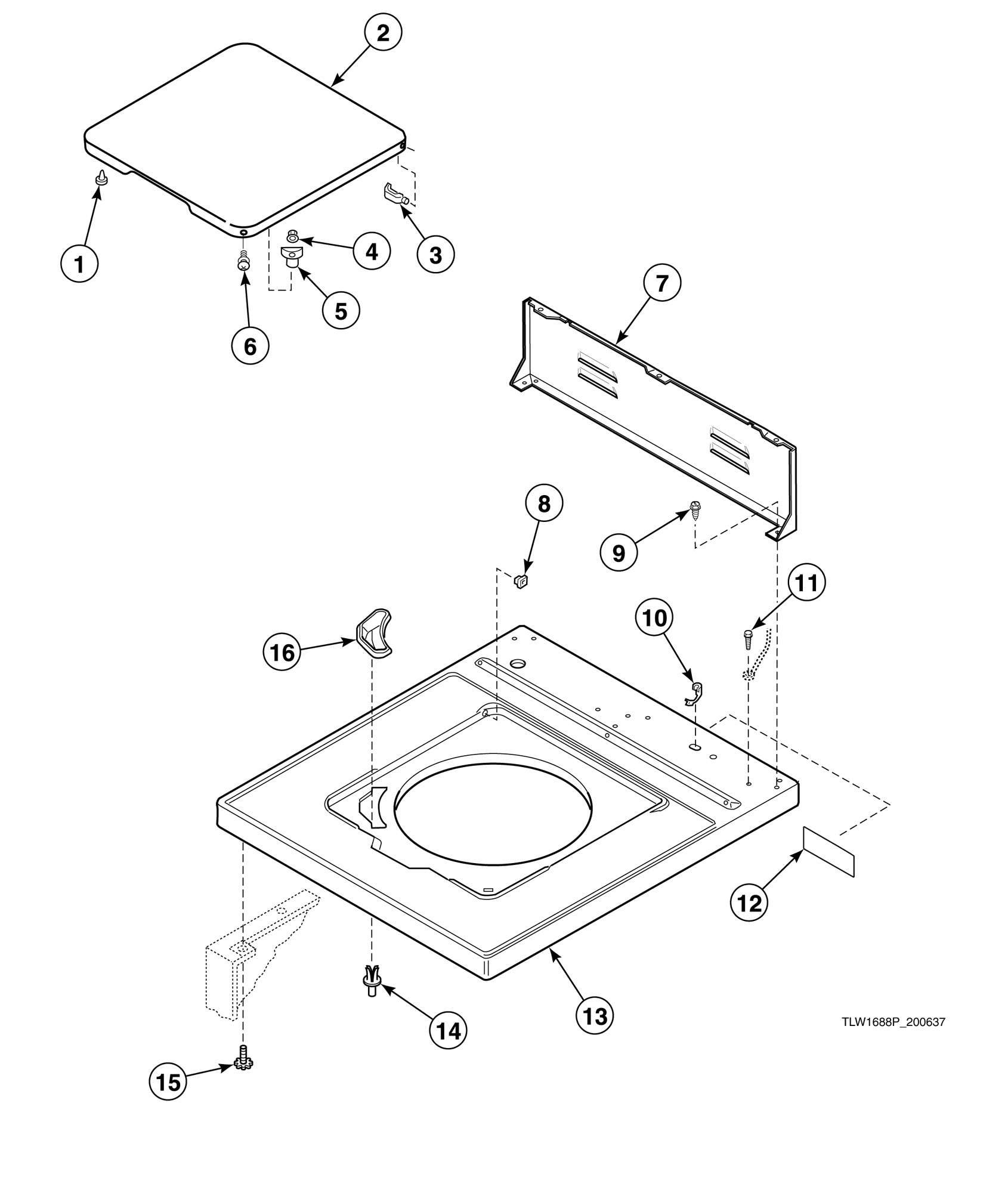

NA5331 Cabinet Top, Loading Door and Control Hood Rear Panel

Products

PositionProduct
1Bumper
2Lid and Carton Assembly (Comment: White, English)
2Lid and Carton Assembly (Comment: Almond, English)
3Hinge
4Nut (Comment: Nylon)
5Lid Switch Catch
6Screw and Washer Assembly
7Hood Back Panel
8Bushing
9Screw
10Strain Relief
11Screw (Comment: Green)
12Disconnect Power Warning Label
13Top and Carton Assembly (Comment: Almond)
13Top and Carton Assembly (Comment: White)
14Support Barrel
15Screw
16Bleach Dispenser (Comment: Replaces 27121)
