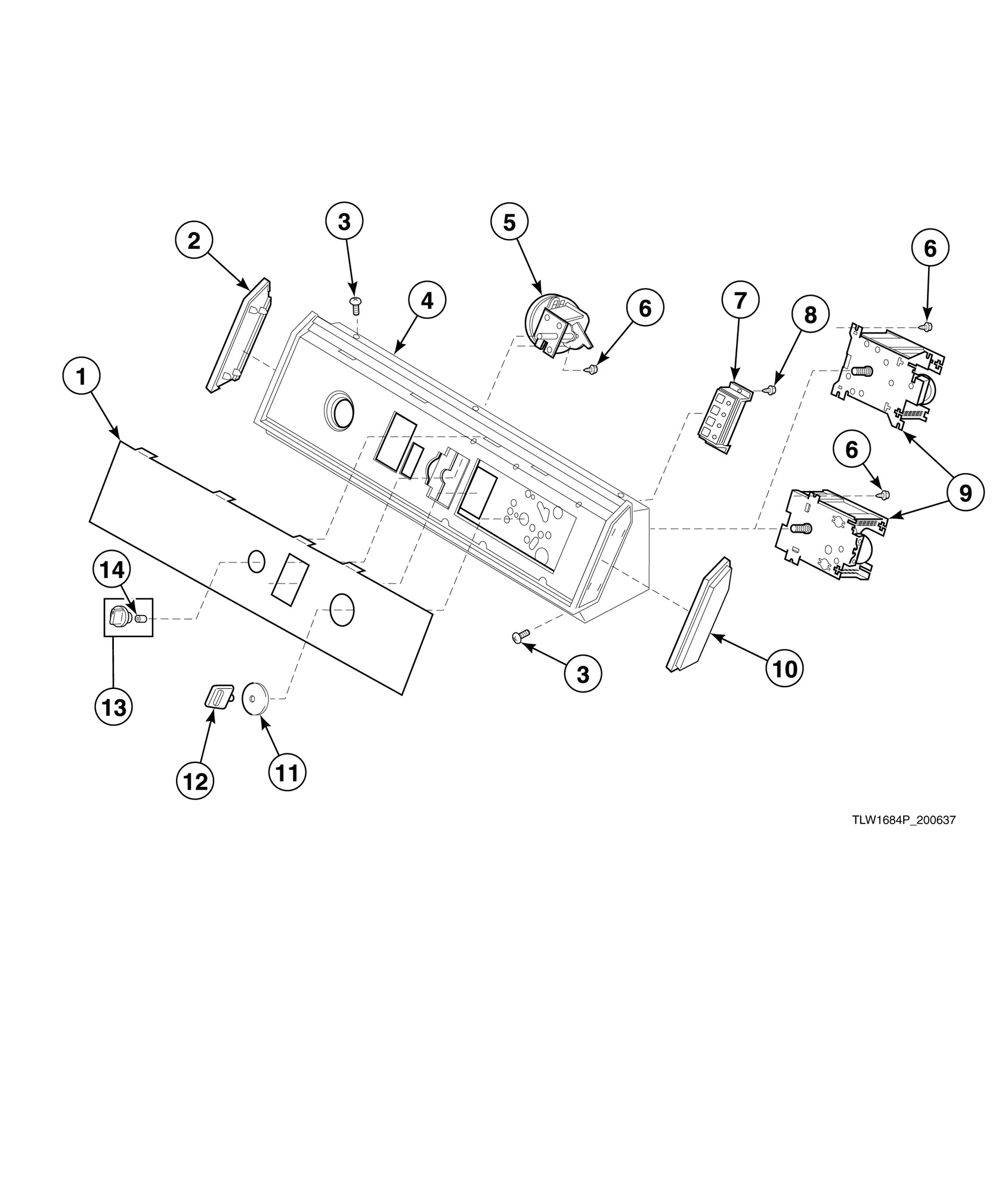

NA5520 Graphic Panel, Control Hood and Controls (Drawing 6 of 9)

Written by

Products

Position	Product
1	Graphic Panel
2	End Cap (Comment: Left)
3	Screw
4	Hood and Mounting Bracket Assembly
5	Rotary Pressure Switch
6	Screw
7	Switch and Cover Assembly
8	Screw
9	Timer
10	End Cap
11	Timer Skirt Assembly
12	Timer Knob Assembly
13	Rotary Knob Assembly
14	Retainer
