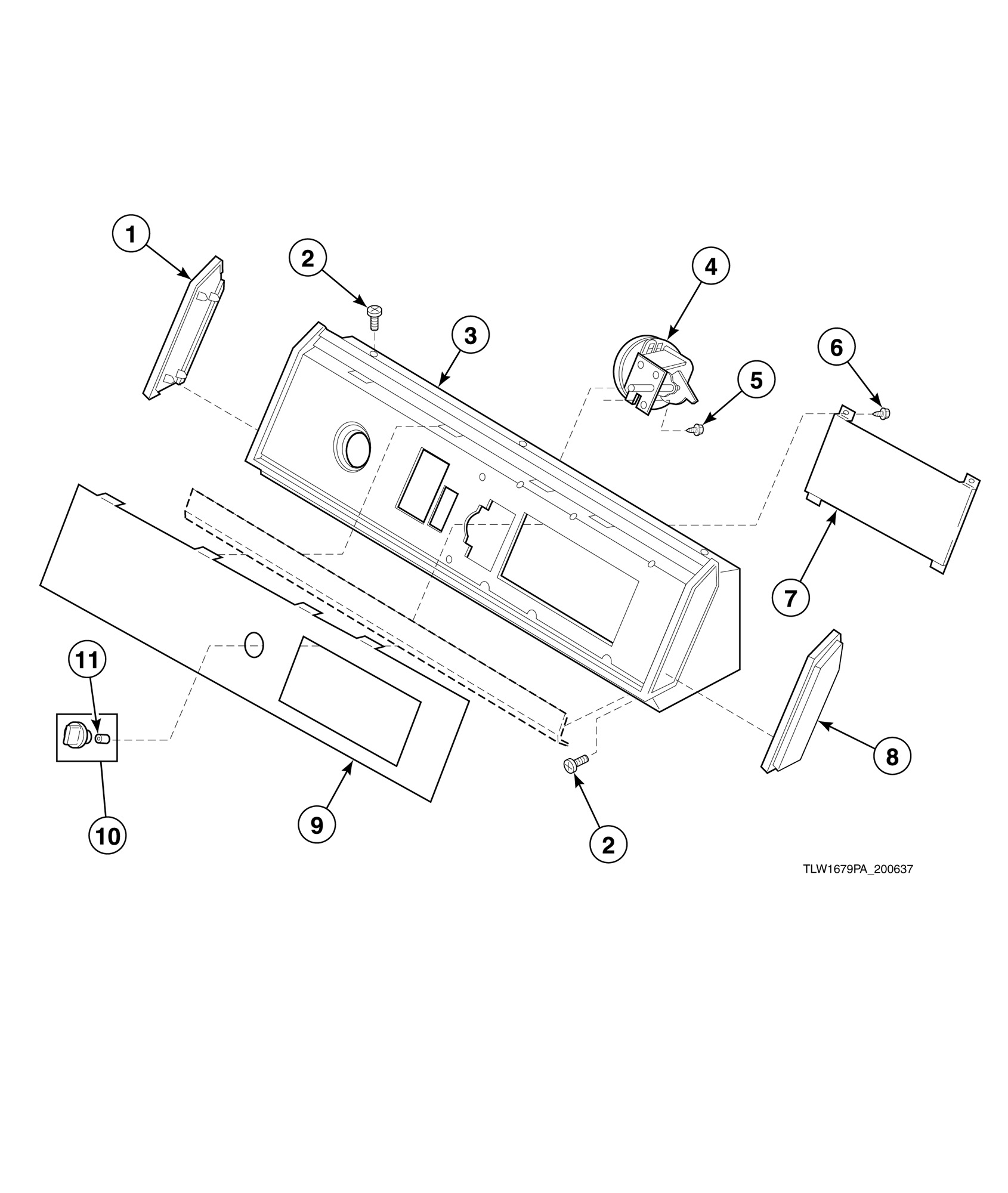

NA5530 Graphic Panel, Control Hood and Controls (Drawing 3 of 9)

Written by

Products

Position	Product
1	End Cap (Comment: Left)
2	Screw
3	Hood and Mounting Bracket Assembly
4	Rotary Pressure Switch
5	Screw
6	Screw
7	Electronic Control Assembly
8	End Cap
9	Graphic Panel
10	Rotary Knob Assembly
11	Retainer
