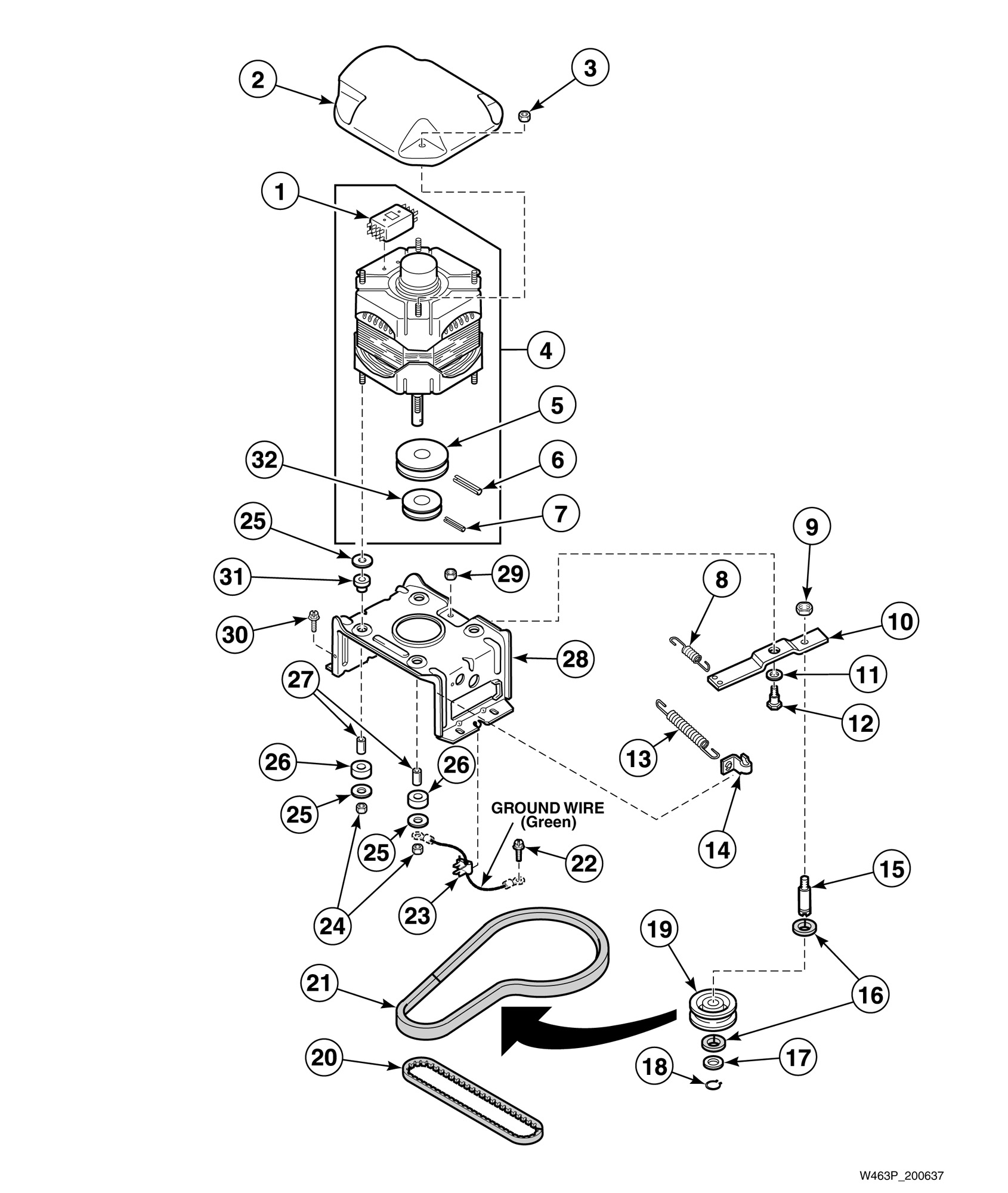

NA5530 Motor, Mounting Bracket, Belts and Idler Assembly

Products

PositionProduct
1Motor Switch (Comment: Used with 30895 Emerson motor)
1Motor Switch (Comment: Used with 30897 Emerson motor)
1Motor Switch (Comment: Used with 30895 General Electric motor)
1Motor Switch (Comment: Used with 30897 General Electric motor)
2Motor Shield
3Nut
4Motor Kit (Comment: 1 speed, 120 Volt/50 Hertz)
4Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase)
4Motor Kit (Comment: 1 speed, 120 Volt/60 Hertz/1 Phase)
10Idler Lever
11Washer
12Screw
13Idler Lever Spring
14Spring Clip
15Idler Shaft
16Washer
17Washer
18Retaining Ring
19Idler Pulley
20Pump Belt (Comment: Pump)
21Belt (Comment: Agitate and spin)
22Screw (Comment: Green)
23Grounding Clip
24Nut
25Washer
26Rubber Motor Mount (Comment: Lower)
27Motor S
28GEN 28791
29Nut
30Screw
31GEN 01952A
32GEN 27104
