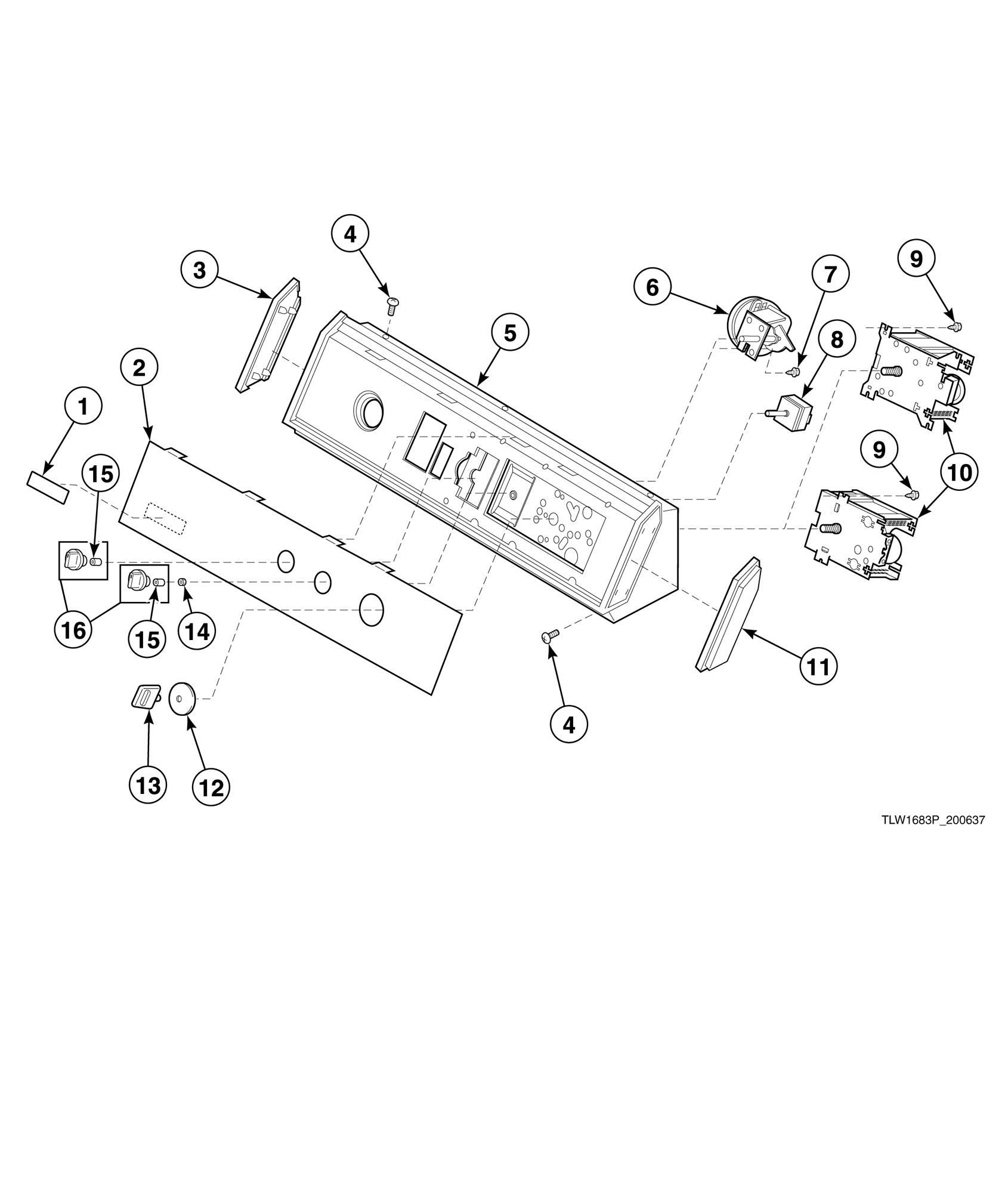

NA5721 Graphic Panel, Control Hood and Controls (Drawing 5 of 9)

NA5721 Graphic Panel, Control Hood and Controls (Drawing 5 of 9)

Written by

in

NA5721 Graphic Panel, Control Hood and Controls (Drawing 5 of 9)

Products

PositionProduct
1Nameplate
2Graphic Panel
3End Cap (Comment: Left)
4Screw
5Control Hood Assembly
6Rotary Pressure Switch
7Screw
8Water Temperature Switch
9Screw
10Timer
11End Cap
12Timer Skirt Assembly
13Timer Knob Assembly
14Nut
15Retainer
16Rotary Knob Assembly
