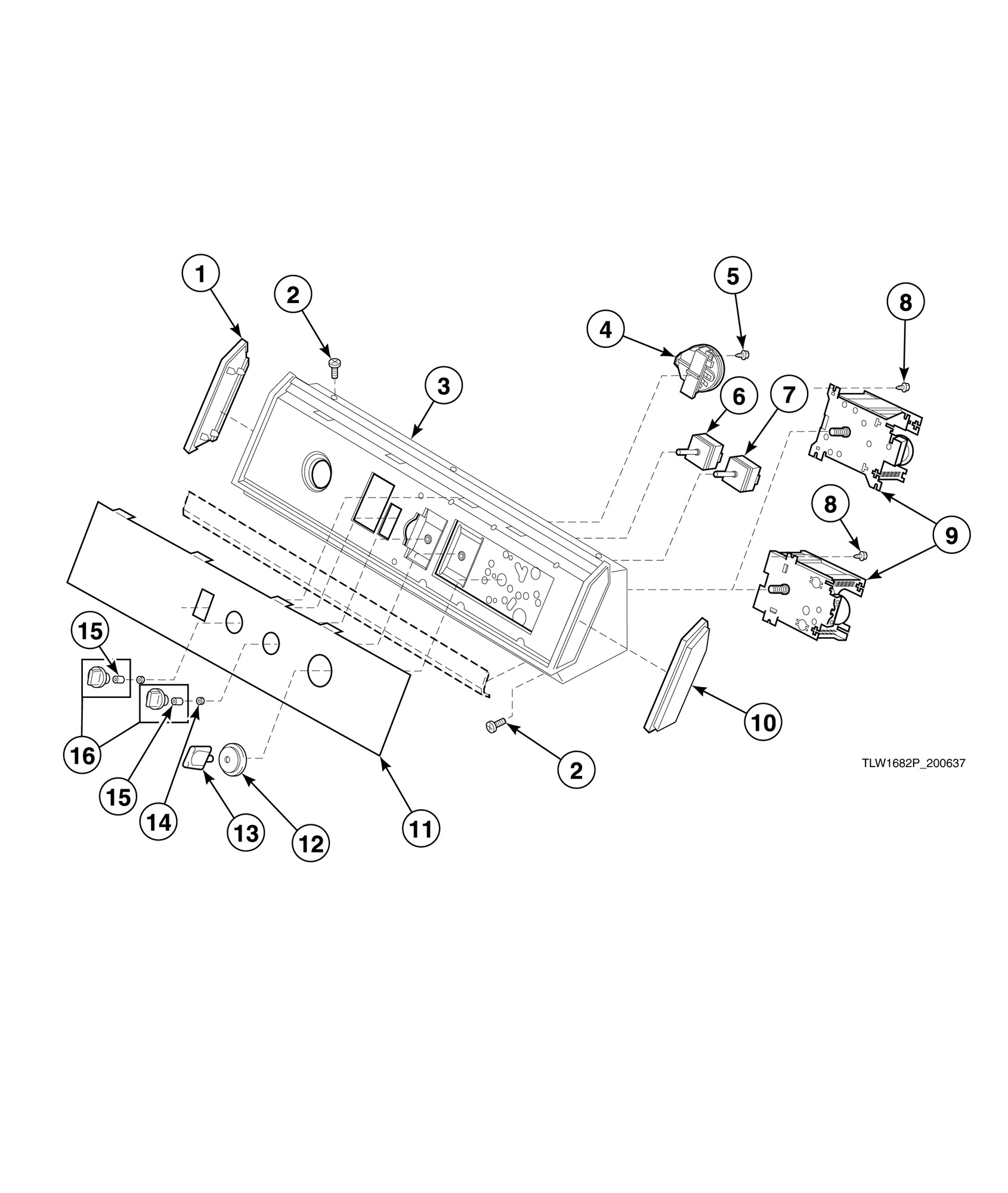

NA6321 Graphic Panel, Control Hood and Controls (Drawing 4 of 9)

NA6321 Graphic Panel, Control Hood and Controls (Drawing 4 of 9)

Written by

in

NA6321 Graphic Panel, Control Hood and Controls (Drawing 4 of 9)

Products

Position	Product
1	End Cap (Comment: Left)
2	Screw
3	Control Hood Assembly
4	Pressure Switch
5	Screw
6	Temperature Switch
7	Speed Selector Switch
8	Screw
9	Timer
10	End Cap
11	Graphic Panel
12	Timer Skirt Assembly
13	Timer Knob Assembly
14	Nut
15	Retainer
16	Knob Assembly
