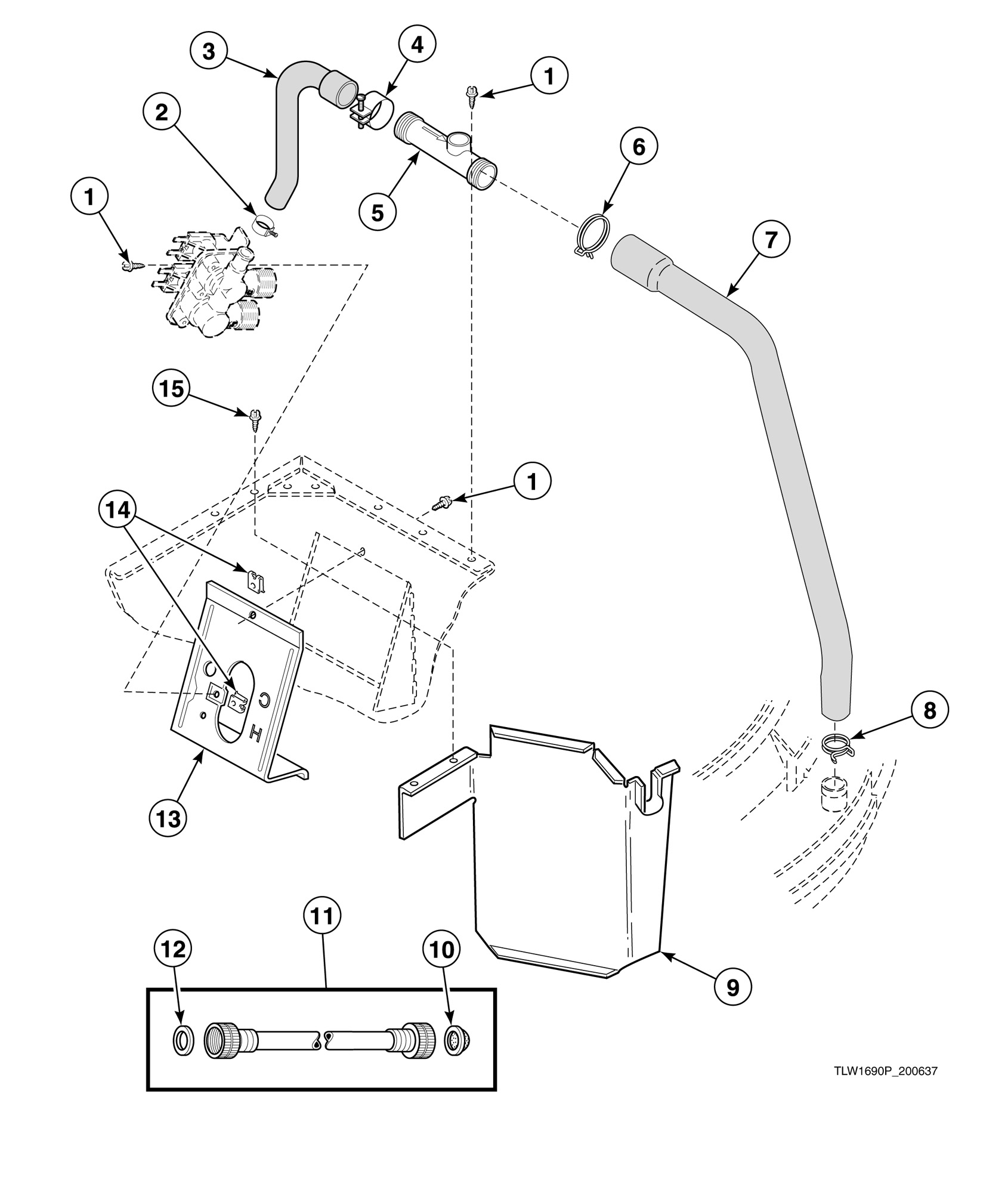

NA6521 Inlet Hose, Filler Hose, Back Flow Preventer and Mixing Valve Mounting Bracket

Products

Position	Product
1	Screw
2	Hose Clamp
3	Mixing Valve Hose
4	Hose Clamp
5	Backflow Preventer Assembly
6	Hose Clamp (Comment: Green)
7	Water Inlet Hose
8	Hose Clamp (Comment: Red)
9	Mixing Valve Guard (Comment: Models starting Serial No. R1339650XG and continuing through R1566483YG)
10	Washer (Comment: Filter)
11	Fill Hose Kit (Comment: Hose is equipped with 1 metric and 1 standard hose coupling)
11	Water Hose (Comment: Hose is equipped with 2 standard hose couplings, Includes items 10 and 12)
12	Washer
13	Mixing Valve Mounting Bracket (Comment: Replaces 27126 Mixing Valve Mounting Bracket)
14	Nut (Comment: Use with 27126 Mixing Valve Mounting Bracket)
15	Screw
