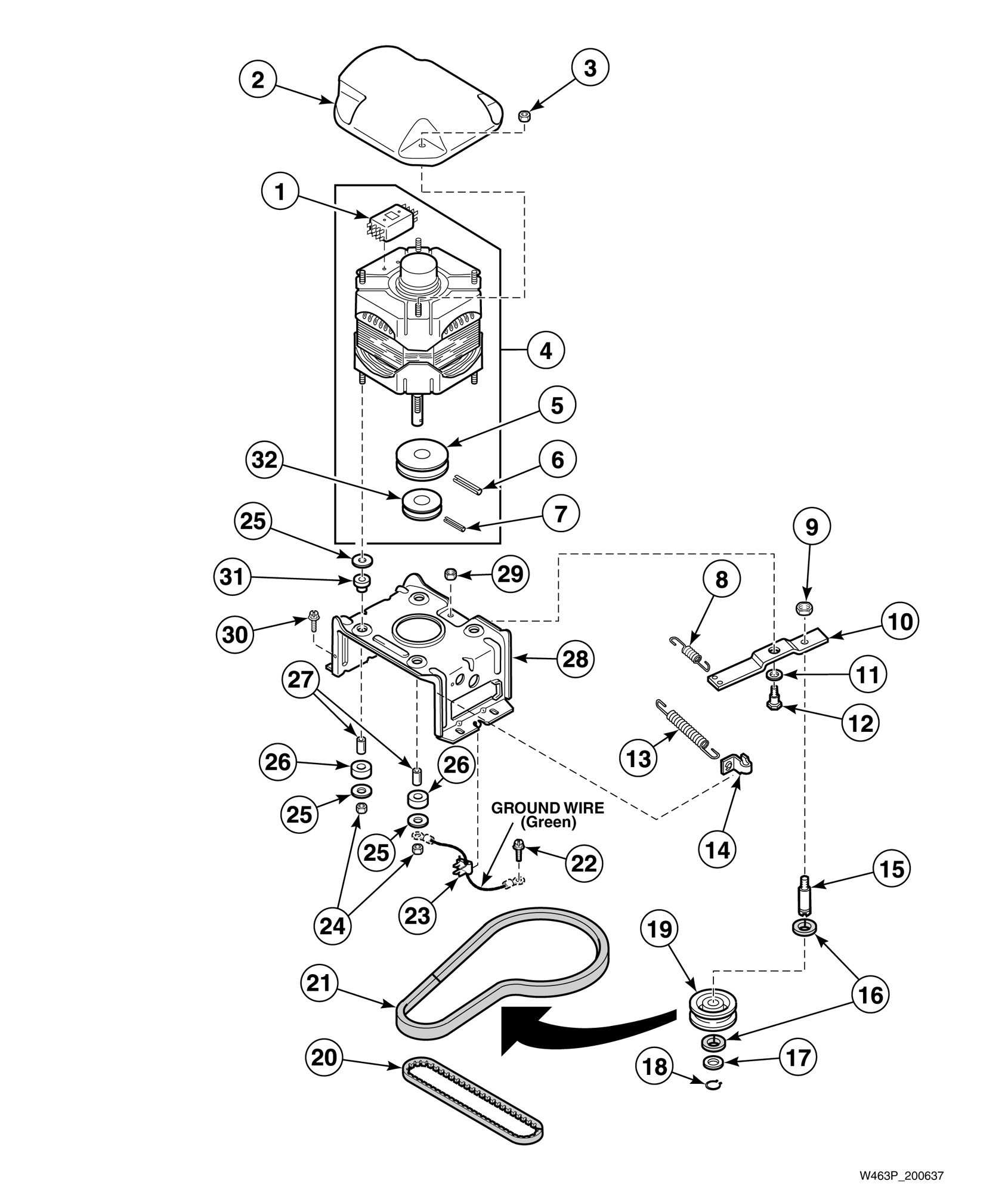

NA6522 Motor, Mounting Bracket, Belts and Idler Assembly

Products

PositionProduct
NAGEN 258P3
2Motor Shield
3Nut
4Motor Kit (Comment: 1 speed, 120 Volt/50 Hertz)
4Motor Kit (Comment: 1 speed, 120 Volt/60 Hertz/1 Phase)
4Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase)
4Motor Kit (Comment: 2 speed, 230 Volt/50 Hertz, Australia)
4Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/60 Hertz)
4Motor Kit (Comment: 1 speed, 230 Volt/50 Hertz)
4Motor Assembly (Comment: 1 speed, 230 Volt/60 Hertz)
4Motor and Pulley Assembly (Comment: 2 speed, 230 Volt/50 Hertz)
5Motor Pulley
6Roll Pin
7Roll Pin
8Idler Lever Helper Spring
9Nut
13Idler Lever Spring
14Spring Clip
15Idler Shaft
16Washer
17Washer
18Retaining Ring
19Idler Pulley
20Pump Belt (Comment: Pump)
21Belt (Comment: Agitate and spin)
22Screw (Comment: Green)
23Grounding Clip
24Nut
25Washer
26Rubber Motor Mount (Comment: Lower)
27Motor S
28GEN 28791
29Nut
30Screw
31GEN 01952A
32GEN 27104
