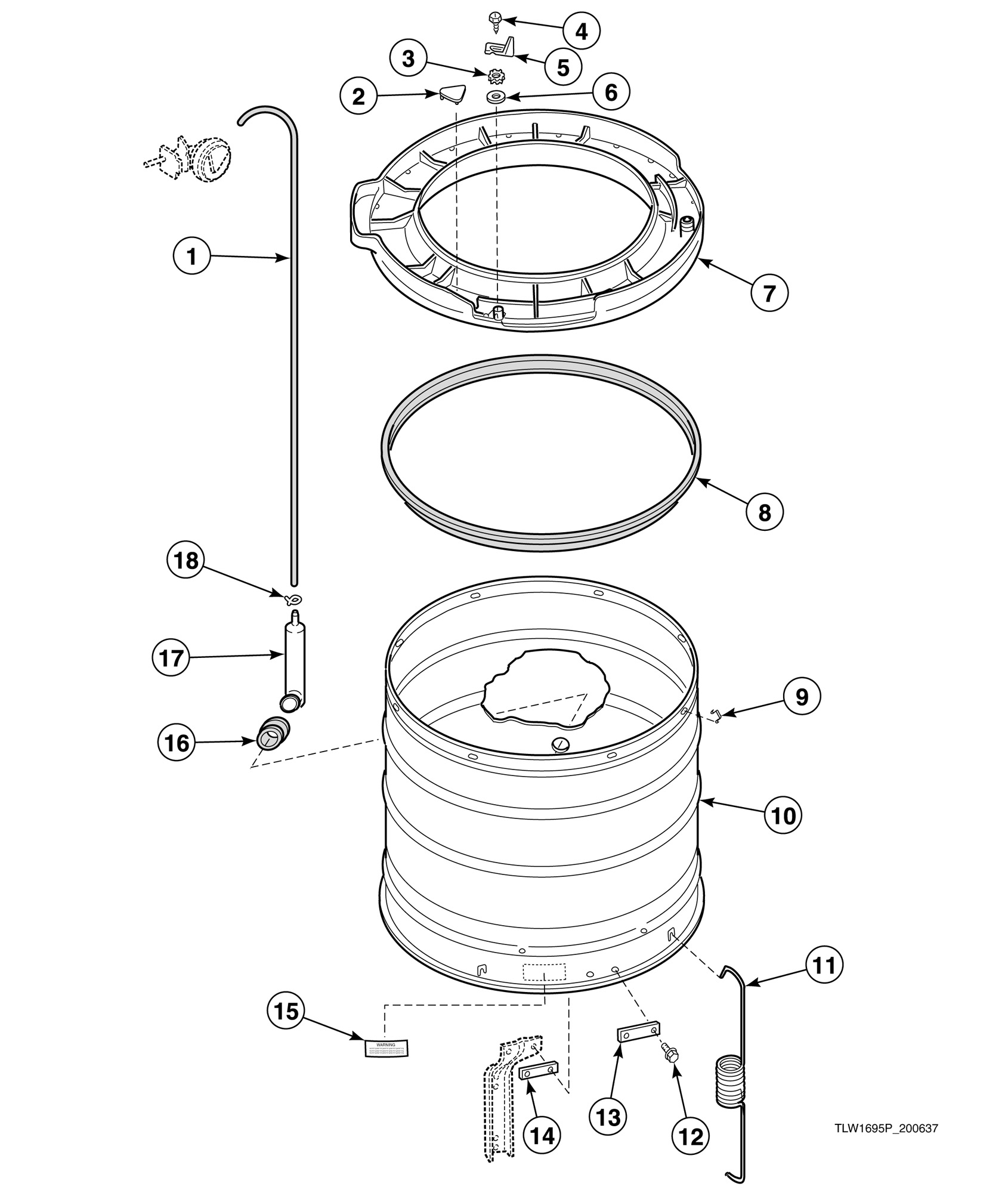

NA6522 Outer Tub, Cover and Pressure Hose

Products

Position	Product
1	Tubing
2	Plug
3	Washer
4	Screw
5	Out-of-Balance Switch Trigger
6	Washer
7	Outer Tub Cover (Comment: Includes item 2)
8	Tub Cover Gasket (Comment: Includes 495P3 Hub and Seal Kit)
9	Spring Clip
10	Outer Tub (Comment: Models through Serial No. R1438801XN)
10	Outer Tub Kit (Comment: starting Serial No. R1438802XN)
11	Leg Spring
12	Screw
13	Leg Plate (Comment: .063 inches thick)
14	Leg Plate (Comment: .032 inches thick)
15	Warning Sticker
16	Grommet
17	Pressure Bulb
18	Hose Clamp
