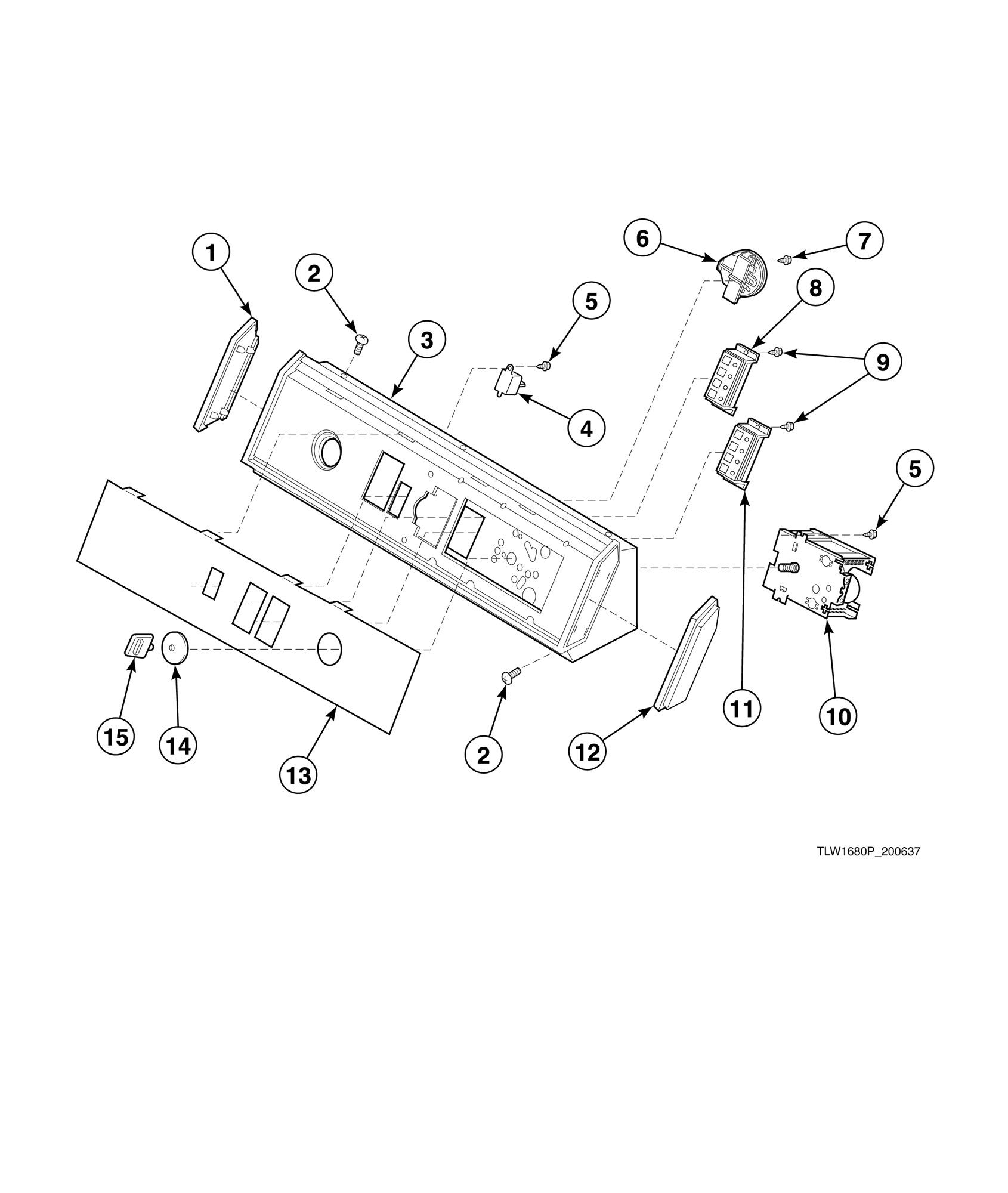

NA7321 Graphic Panel, Control Hood and Controls (Drawing 2 of 9)

NA7321 Graphic Panel, Control Hood and Controls (Drawing 2 of 9)

Written by

in

NA7321 Graphic Panel, Control Hood and Controls (Drawing 2 of 9)

Products

PositionProduct
1End Cap (Comment: Left)
2Screw
3Control Hood Assembly
4Signal
5Screw
6Pressure Switch
7Screw
8Switch and Cover Assembly
9Screw
10Timer
11Switch and Cover Assembly
12End Cap
13Graphic Panel
14Timer Skirt Assembly
15Timer Knob Assembly
