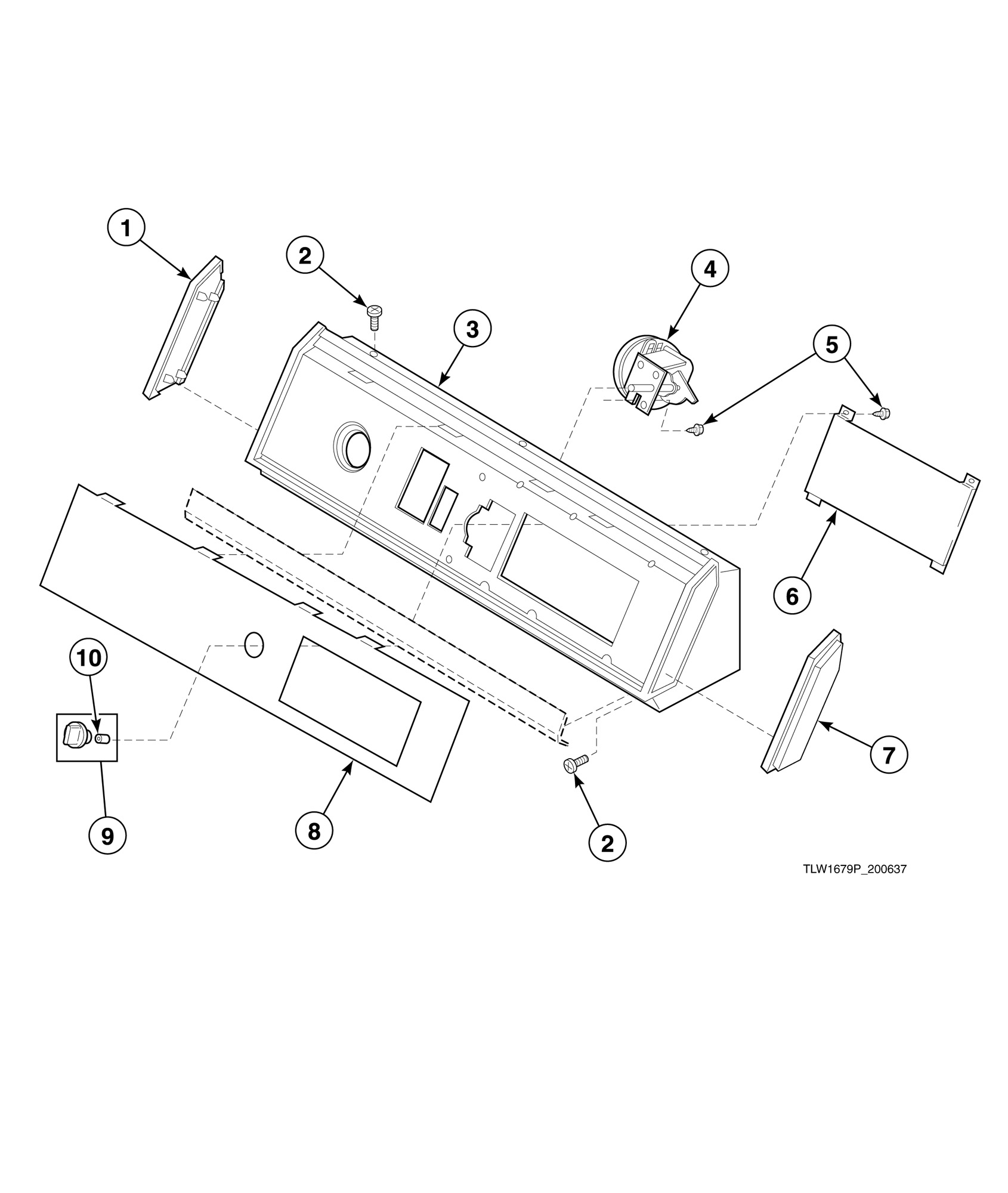

NA8531 Graphic Panel, Control Hood and Controls (Drawing 1 of 9)

Written by

Products

Position	Product
1	End Cap (Comment: Left)
2	Screw
3	Control Hood
4	Slide Pressure Switch
5	Screw
6	Electronic Control Assembly
7	End Cap
8	Graphic Panel
9	NOT ON YOUR MODEL
10	Retainer
