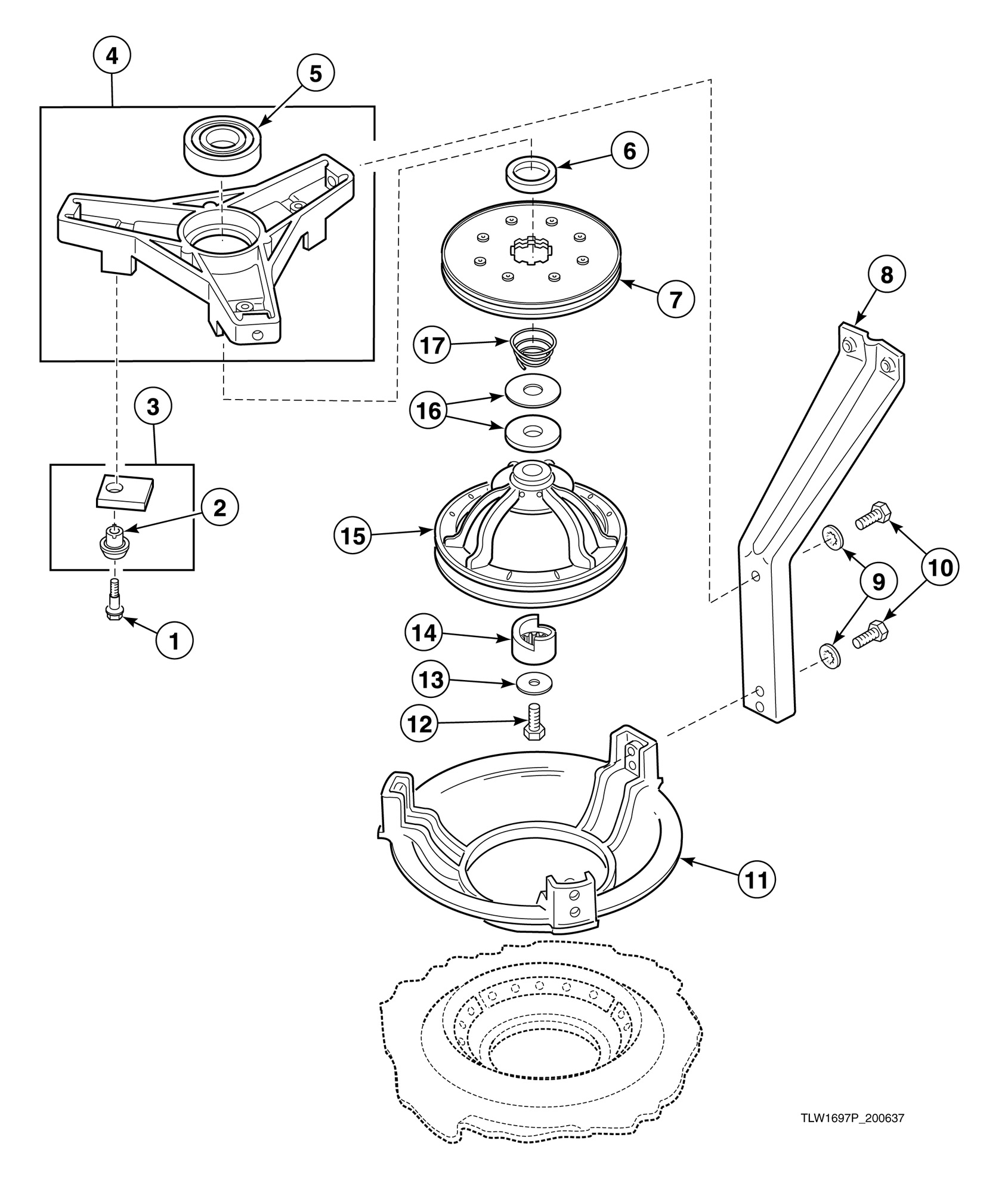

NA8631 Bearing Housing, Brake, Pulley and Pivot Dome

Written by

Products

Position	Product
1	Screw
2	Anti-Rotation Sleeve
3	Brake Pad Kit (Comment: Includes 3 pads and sleeves)
4	Bearing Housing Assembly
5	Lower Bearing
6	Spacer (Comment: Use with item 7)
7	Brake Kit
8	Support Leg
9	Washer
10	Screw
11	Pivot Dome
12	Screw
13	Washer
14	Helix
15	Pulley and Washers Kit
16	Washer (Comment: Replaced 27015 Washer)
17	Spring
