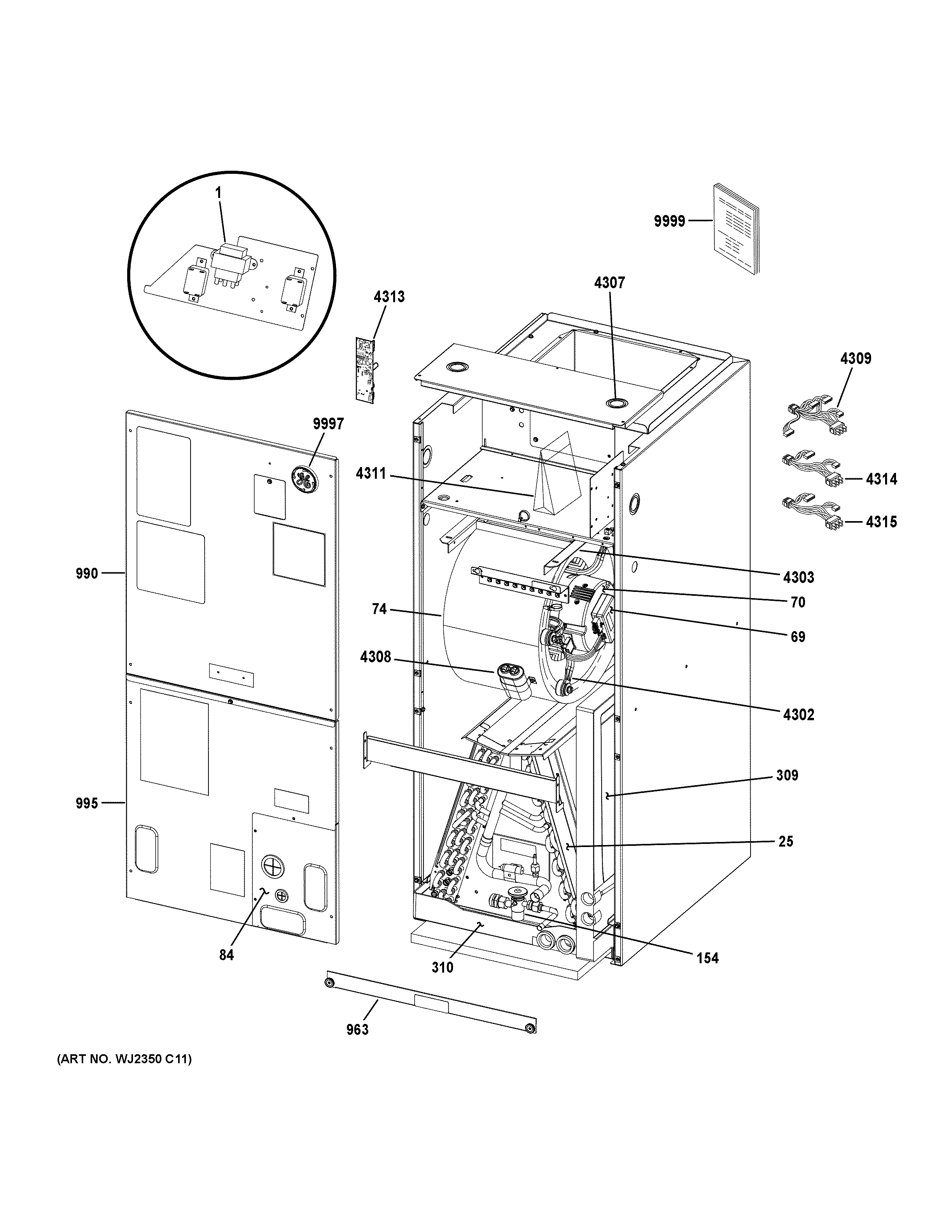

NAM18V1TA452 ROOM AIR CONDITIONER

Products

Position	Product
1	TRANSFORMER 208/240V PRI, 24V-(CTO)
25	ASSY-REP COIL CBA25UH/V-018-(CTO)
69	620605-15 CONTROL CBA25UHV018
70	107598-01 MOTOR-BLOWER 1/2 HP VS 16PIN
74	BLWR HSG ASSY 9X6R 4 Hole Mount-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-01 VALVE-TXV (1.5-2.5) (R410A)
309	REPL DRAIN PAN UPFLOW (21 X 17)-(CTO)
310	DRAIN PAN SIDE(1.5ton-2.5ton)HORIZ-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUMB ACS PNL-(CTO)
4302	ARM-MOTOR MTG-(CTO)
4303	BAND-MOTOR MTG (4 LEG)-(CTO)
4307	KIT - CABINET PLUG-(CTO)
4308	22W79 GE 100600-02 Run Capacitor 7.5 Mfd @ 37
4309	HARNESS-WIRING AH-(CTO)
4311	LABEL WIRING DIAGRAM-(CTO)
4313	40K8201 CTL BDC3-1
4314	W/H BC ENHANCED-(CTO)
4315	620606-01 KIT 4 PIN HARNESS
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
