NAM24E1TA451 ROOM AIR CONDITIONER

Products

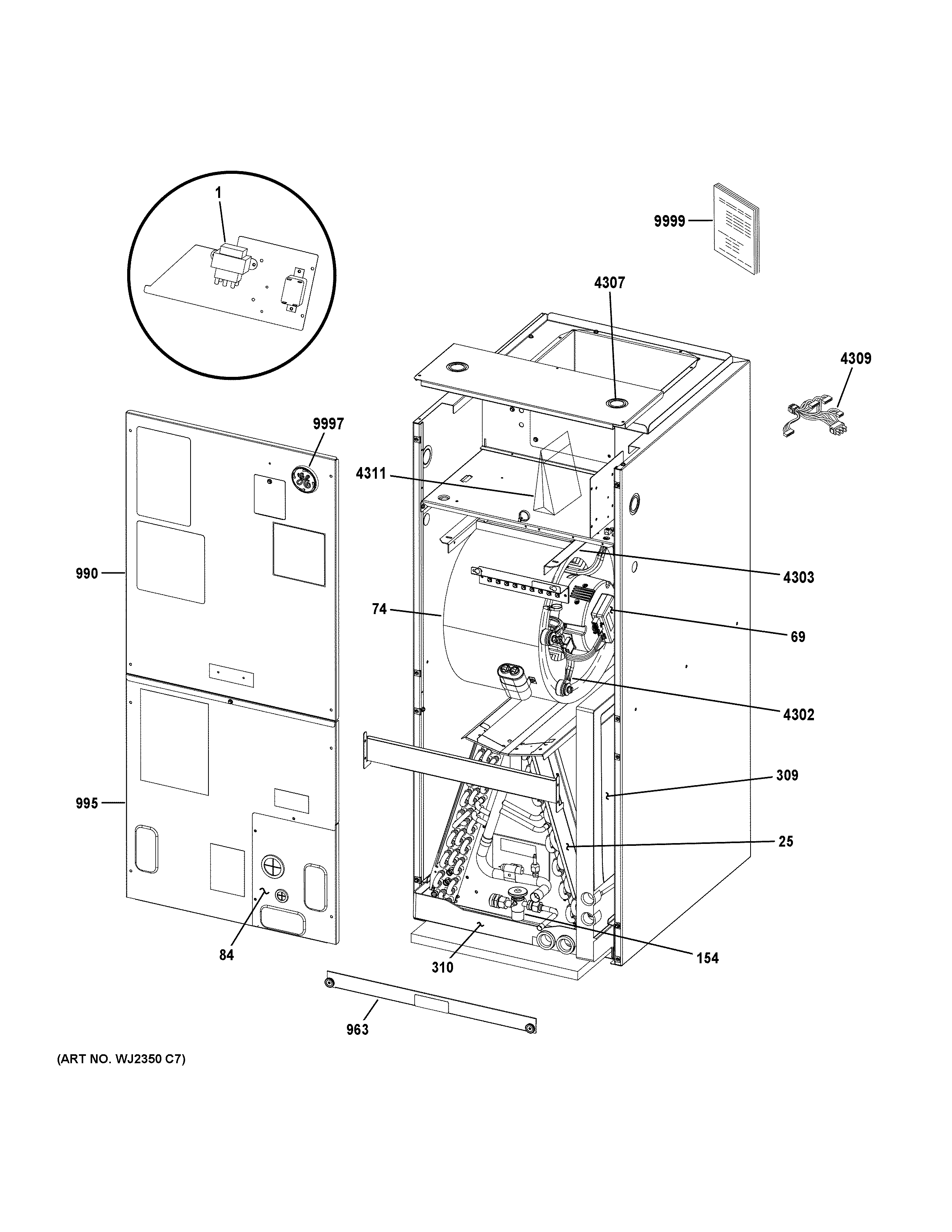

Position	Product
1	TRANSFORMER 208/240V PRI, 24V-(CTO)
25	ASSY-REPAIR COIL CBA25UH/V-024-(CTO)
69	607421-54 MTR-MOD 1/2HP CT 230V 60hz 1PH
74	BLWR HSG ASSY 10X8R 4 HOLE MOUNT-(CTO)
84	ASSY-REP PART PATCH PL (BCE5M)-(CTO)
154	104110-01 VALVE-TXV (1.5-2.5) (R410A)
309	REPL DRAIN PAN UPFLOW (21 X 17)-(CTO)
310	DRAIN PAN SIDE(1.5ton-2.5ton)HORIZ-(CTO)
963	ASSY-REP PART FILTER ACS PNL-(CTO)
990	ASSY-REP PART BLWR ACS PNL-(CTO)
995	ASSY-REP PART PLUMB ACS PNL-(CTO)
4302	ARM-MOTOR MTG-(CTO)
4303	MOTOR MOUNT BAND KIT-(CTO)
4307	KIT – CABINET PLUG-(CTO)
4309	107310-01 HARNESS-WIRING AH
4311	LABEL WIRING DIAGRAM-(CTO)
9997	SIDE GEA BADGE
9999	PM SERVICE INSTRUCTIONS
